Spot sales of TDA2003V 10W CAR RADIO AUDIO AMPLIFIER TO-220
Manufacturer Product Number
TDA2003V
Description
TDA2003V 10W CAR RADIO AUDIO AMPLIFIER TO-220
Package Condition
TUBE
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
The TDA 2003 hasimproved performancewith the same pin configuration as the TDA 2002.
The additional features of TDA 2002, very low numberof externalcomponents,ease of assembly, space and cost saving, are maintained.
Thedeviceprovidesa high outputcurrentcapability (up to 3.5A) very low harmonic and cross-over distortion.
Completely safe operation is guaranteed due to protectionagainst DCand ACshort circuit between all pins and ground,thermal over-range,load dump voltage surge up to 40V and fortuitous open ground.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TDA2003V |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 12W x 1 @ 1.6Ohm |
| Voltage - Supply | 8V ~ 18V |
| Features | Short-Circuit and Thermal Protection |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 5-PENTAWATT |
| Package / Case | Pentawatt-5 (Vertical, Bent and Staggered Leads) |
| Base Product Number | TDA2003 |

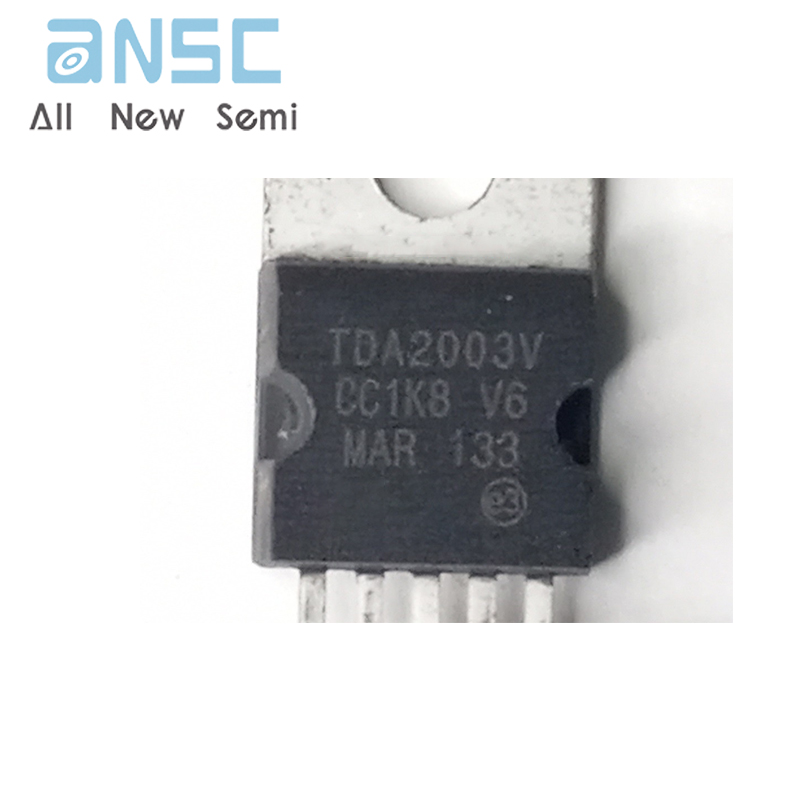

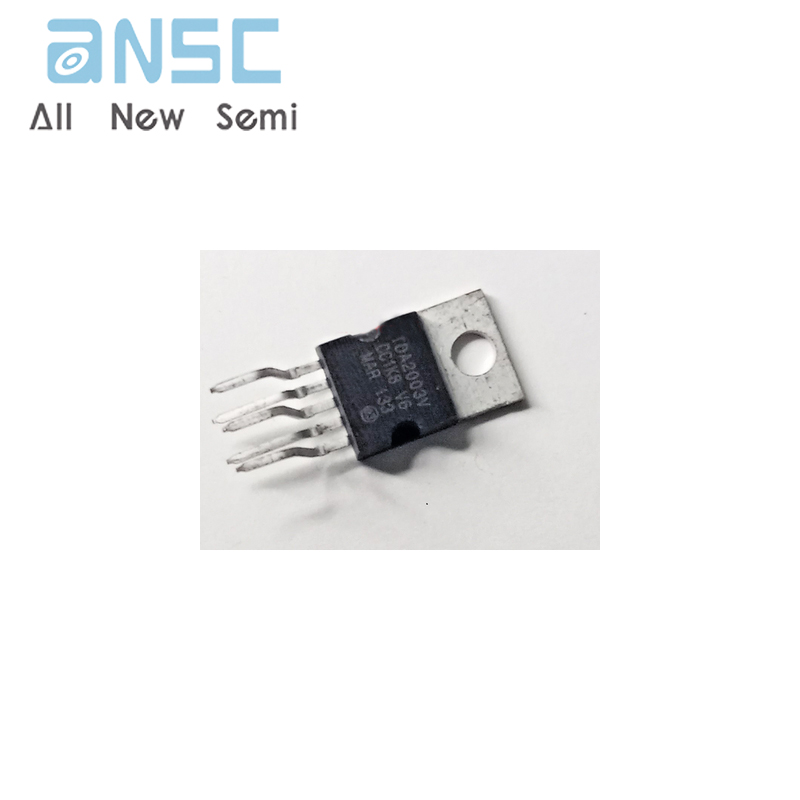

Product Photos
For more product information, please download the PDF
