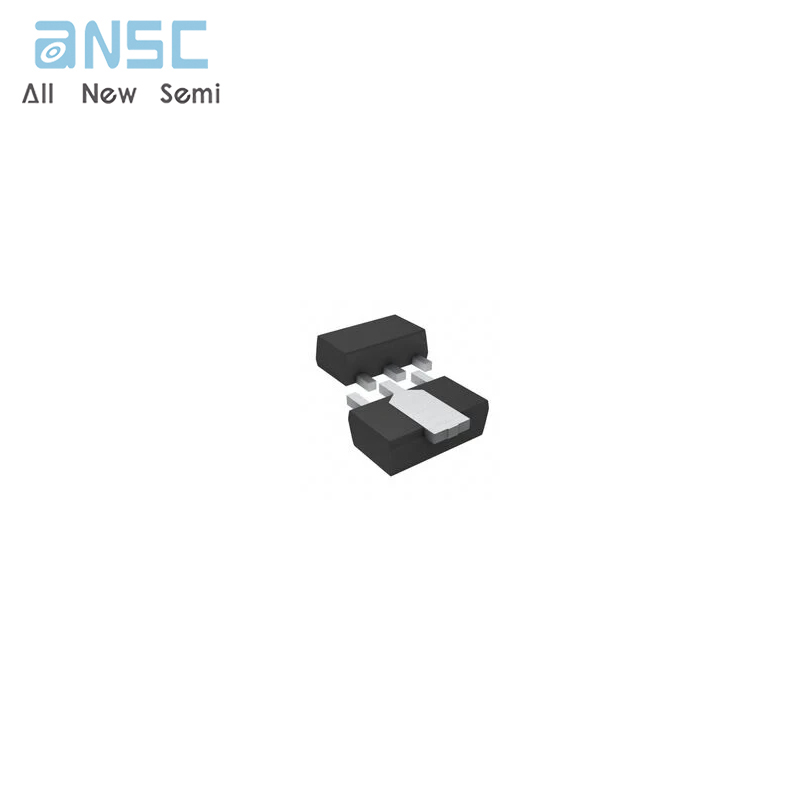

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce BG12C 50-4000 MHz Cascadable InGaP HBT Gain Block SOT-89 spot stock
Manufacturer Product Number
BG12C
Description
BG12C 50-4000 MHz Cascadable InGaP HBT Gain Block SOT-89 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
BG12C is a high performance InGaP/ GaAs HBT MMIC amplifier, internally matched to 50 Ohms and uses a patented temperature compensation circuit to provide stable current over the operating temperature range without the need for external components. The BG12C is designed for high linearity gain block applications that require excellent gain flatness. It is packaged in a RoHS2-compliant with SOT-89 surface mount package.
Product Features
• OIP3 = 35.0 dBm @ 900 MHz
• Gain = 20.5 dB @ 900 MHz
• Output P1 dB = 21.0 dBm @ 900 MHz
• 2.7dB Typical N.F
• Highly Reliable InGaP/GaAs HBT Technology
• RoHS2-compliant SOT-89 SMT package
Product Applications
• Base station Infrastructure/RFID
• Commercial/Industrial/Military wireless system
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BG12C |
| Category | RF and Wireless |
| RF Amplifiers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Frequency | 50MHz ~ 4GHz |
| P1dB | 21dBm |
| Gain | 20.5dB |
| Noise Figure | 2.6dB |
| RF Type | 5G NR, Cellular, LTE, PCS, W-CDMA, WIMAX |
| Voltage - Supply | 4.5V ~ 5.25V |
| Current - Supply | 54mA ~ 80mA |
| Test Frequency | 900MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
Product Photos
For more product information, please download the PDF
