Hot-selling and scarce MAX4189ESD+ CurrentFeedback Amplifiers with High-Speed Disable SOP14 spot stock

Product Applications

The MAX4188/MAX4189/MAX4190 are low-power,  current-feedback video amplifiers featuring fast disable/enable times and low switching transients. The triple MAX4188 and the single MAX4190 are optimized for applications with closed-loop gains of +2V/V (6dB) or greater and provide a -3dB bandwidth of 200MHz and 185MHz, respectively. The triple MAX4189 is optimized for closed-loop applications with gains of +1V/V (0dB) or greater and provides a 250MHz -3dB bandwidth. These amplifiers feature 0.1dB gain flatness up to 80MHz with differential gain and phase errors of 0.03% and 0.05°. These features make the MAX4188 family ideal for video applications.

The MAX4188/MAX4189/MAX4190 operate from a +5V single supply or from ±2.25V to ±5.5V dual supplies. These amplifiers consume only 1.5mA per amplifier and are capable of delivering ±55mA of output current, making them ideal for portable and battery-powered equipment.

The MAX4188/MAX4189/MAX4190 have a high-speed disable/enable mode that isolates the inputs, places the outputs in a high-impedance state, and reduces the supply current to 450µA per amplifier. Each amplifier can be disabled independently. High off isolation, low switching transient, and fast enable/disable times (120ns/35ns) allow these amplifiers to be used in a wide range of multiplexer applications. A settling time of 22ns to 0.1%, a slew rate of up to 350V/µs, and low distortion make these devices useful in many generalpurpose, high-speed applications.

The MAX4188/MAX4189 are available in a tiny 16-pin QSOP package, and the MAX4190 is available in a space-saving 8-pin µMAX® package.

Product Features

♦ Low Supply Current: 1.5mA per Amplifier

♦ Fast Enable/Disable Times: 120ns/35ns

♦ Very Low Switching Transient: 45mVp-p

♦ High Speed

200MHz -3dB Small-Signal Bandwidth

(MAX4188, AVCL ≥ +2)

250MHz -3dB Small-Signal Bandwidth

(MAX4189, AVCL ≥ +1)

185MHz -3dB Small-Signal Bandwidth

(MAX4190, AVCL ≥ +2)

♦ High Slew Rate

350V/µs (MAX4188, AVCL ≥ +2)

175V/µs (MAX4189, AVCL ≥ +1)

♦ Excellent Video Specifications

85MHz -0.1dB Gain Flatness (MAX4190)

30MHz -0.1dB Gain Flatness (MAX4189)

Differential Gain/Phase Errors

0.03%/0.05° (MAX4188)

♦ Low-Power Disable Mode

Inputs Isolated, Outputs Placed in High-Z

Supply Current Reduced to 450µA per Amplifier

♦ Fast Settling Time of 22ns to 0.1%

♦ Low Distortion

70dB SFDR (fc = 5MHz, VO = 2Vp-p, MAX4188)

♦ Available in Space-Saving Packages

16-Pin QSOP (MAX4188/MAX4189)

8-Pin µMAX (MAX4190)

Product Applications

High-Definition Surveillance Video

High-Speed Switching/Multiplexing

Portable/Battery-Powered Video/Multimedia

Systems

High-Speed Analog-to-Digital Buffers

Medical Imaging

High-Speed Signal Processing

Professional Cameras

CCD Imaging Systems

RGB Distribution Amplifiers

Product Specification

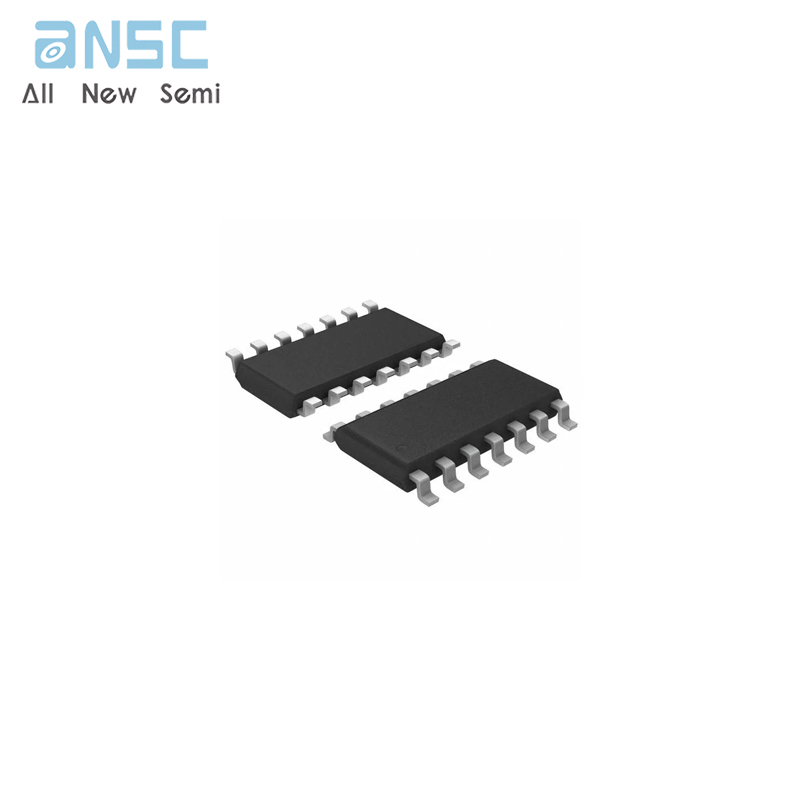

Product Photos
