Hot-selling and scarce LM101AH/883B General Purpose Operational Amplifier CAN8 spot stock

Product Descriptions

The LM101A/LH2101A is a general purpose high performance operational amplifier fabricated monolithically on a silicon chip by an advanced epitaxial process. The LH2101A consists of two LM101A ICs in one 16-lead DIP. The units may be fully compensated with the addition of a 30 pF capacitor stabilizing the circuit for all feedback configurations including capacitive loads.

The device may be operated as a comparator with a differential input as high as 30V. Used as a comparator the output can be clamped at any desired level to make it compatible with logic circuits.

The LM101A and LH2101A operate over the full military temperature range from -55°C to +125°C.

​

Product Features

Input offset voltage 0.7 mV

Input bias current 30 nA

Input offset current 1.5 nA

Full frequency compensation 30pF

Supply voltage +5.0V to +20V

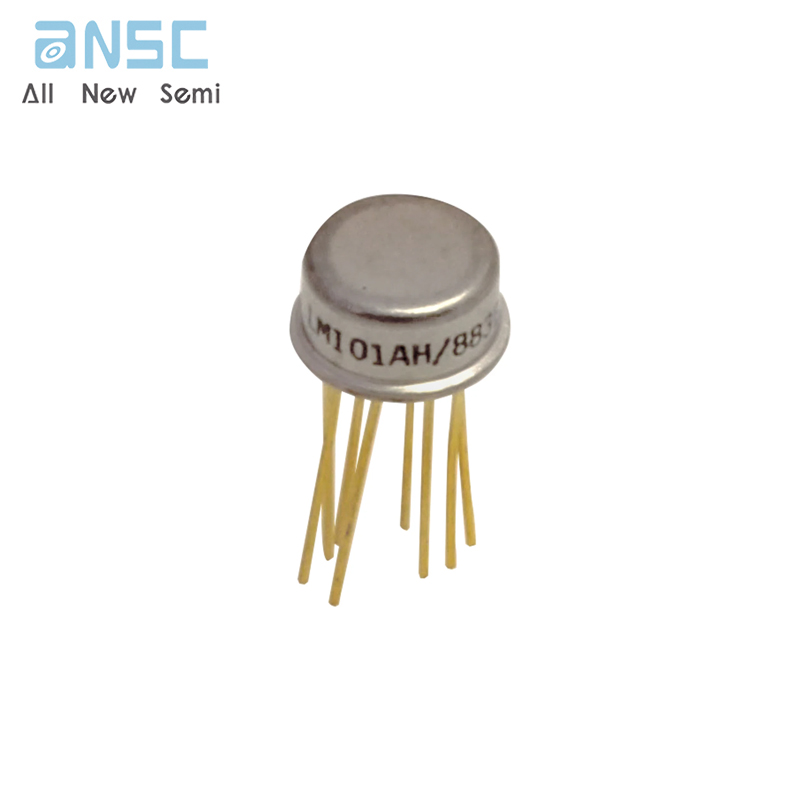

Product Photos

For more product information, please download the PDF
