Hot-selling and scarce ADA4310-1ARHZ High Current Output Line Driver with Shutdown MSOP10 spot stock

Product Descriptions

The ADA4310-1 is comprised of two high speed, currentfeedback operational amplifiers . The high output current, highbandwidth, and fast slew rate make it an excellent choice forbroadband applications requiring high linearity performancewhile driving low impedance loads .

The ADA4310-1 incorporates a power management functionthat provides shutdown capabilities and/or the ability tooptimize the amplifiers quiescent current . The CMOScompatible, power-down control pins (PD1 and PD0) enablethe ADA4310-1 to operate in four different modes: full power,medium power, low power, and complete power down . In thepower-down mode, quiescent current drops to only 0.65 mA/amplifier, while the amplifier output goes to a highimpedance state .

The ADA4310-1 is available in a thermally enhanced, 10-leadMSOP with an exposed paddle for improved thermal conductionand in a thermally enhanced, 4 mm × 4 mm 16-lead LFCSP.The ADA4310-1 is rated to work in the extended industrialtemperature range of −40°C to +85°C .

Product Features

High speed

−3 dB bandwidth: 190 MHz, G = +5

Slew rate: 820 V/μs, RLOAD = 50 Ω

Wide output swing

20.4 V p-p differential, RLOAD of 100 Ω from 12 V supply

High output current

Low distortion

−95 dBc typical at 1 MHz,VOUT =2 V p-p,G =+5, RLOAD =50 Ω

−69 dBc typical at 10 MHz,VOUT =2 V p-p,G =+5, RLOAD =50 Ω

Power management and shutdown

Control inputs CMOS level compatible

Shutdown quiescent current 0.65 mA/amplifier

Adjustable low quiescent current:3.9 mA to 7.6 mA per amp

Product Applications

Home networking line drivers

Twisted pair line drivers

Power line communications

Video line drivers

ARB line drivers

I/Q channel amplifiers

Product Specification

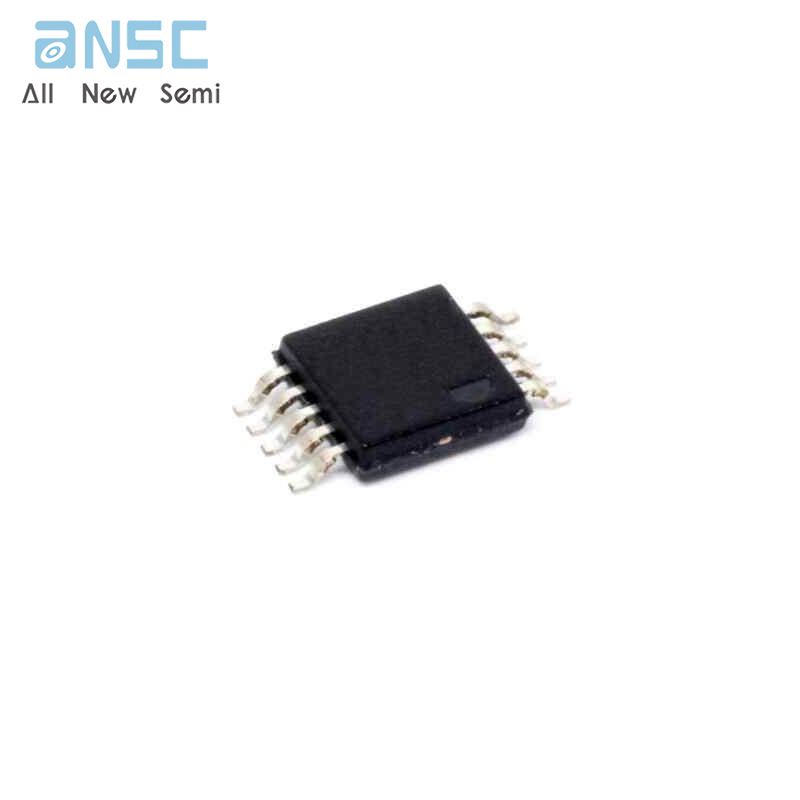

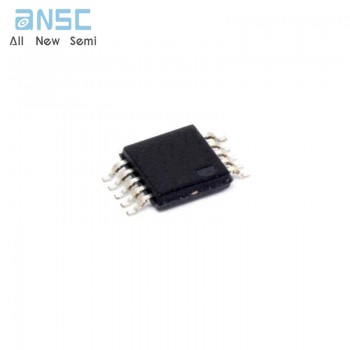

Product Photos

For more product information, please download the PDF
