OPA843IDBVT Wideband, Low Distortion, Medium Gain, Voltage-Feedback OPERATIONAL AMPLIFIER SOT23-5 spot stock
Manufacturer Product Number
OPA843IDBVT
Description
OPA843IDBVT Voltage-Feedback OPERATIONAL AMPLIFIER SOT23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The OPA843 provides a level of speed and dynamic range previously unattainable in a monolithic op amp. Using a high Gain Bandwidth (GBW), two gain-stage design, the OPA843 gives a medium gain range device with exceptional dynamic range. The “classic” differential input complements this high dynamic range with DC precision beyond most high-speed amplifier products. Very low input offset voltage and current, high Common-Mode Rejection Ratio (CMRR) and PowerSupply Rejection Ratio (PSRR), and high open-loop gain combine to give a high DC precision amplifier along with low noise and high 3rd-order intercept.
12- to 16-bit converter interfaces will benefit from this combination of features. High-speed transimpedance applications can be implemented with exceptional DC precision as well. Differential configurations using two OPA843s can deliver very low distortion to high output voltages, as shown below.
Product Features
● HIGH BANDWIDTH: 260MHz (G = +5)
● GAIN BANDWIDTH PRODUCT: 800MHz
● LOW INPUT VOLTAGE NOISE: 2.0nV/√Hz
● VERY LOW DISTORTION: –96dBc (5MHz)
● HIGH OPEN-LOOP GAIN: 110dB
● FAST 12-BIT SETTLING: 10.5ns (0.01%)
● LOW INPUT OFFSET VOLTAGE: 300µV
● OUTPUT CURRENT: ±100mA
Product Applications
● ADC/DAC BUFFER AMPLIFIER
● LOW DISTORTION “IF” AMPLIFIER
● ACTIVE FILTERS
● LOW-NOISE RECEIVER
● WIDEBAND TRANSIMPEDANCE
● TEST INSTRUMENTATION
● PROFESSIONAL AUDIO
● OPA643 UPGRADE
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-OPA843IDBVT |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Slew Rate | 1000V/µs |
| Gain Bandwidth Product | 800 MHz |
| -3db Bandwidth | 500 MHz |
| Current - Input Bias | 20 µA |
| Voltage - Input Offset | 300 µV |
| Current - Supply | 20.2mA |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 8 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | OPA843 |

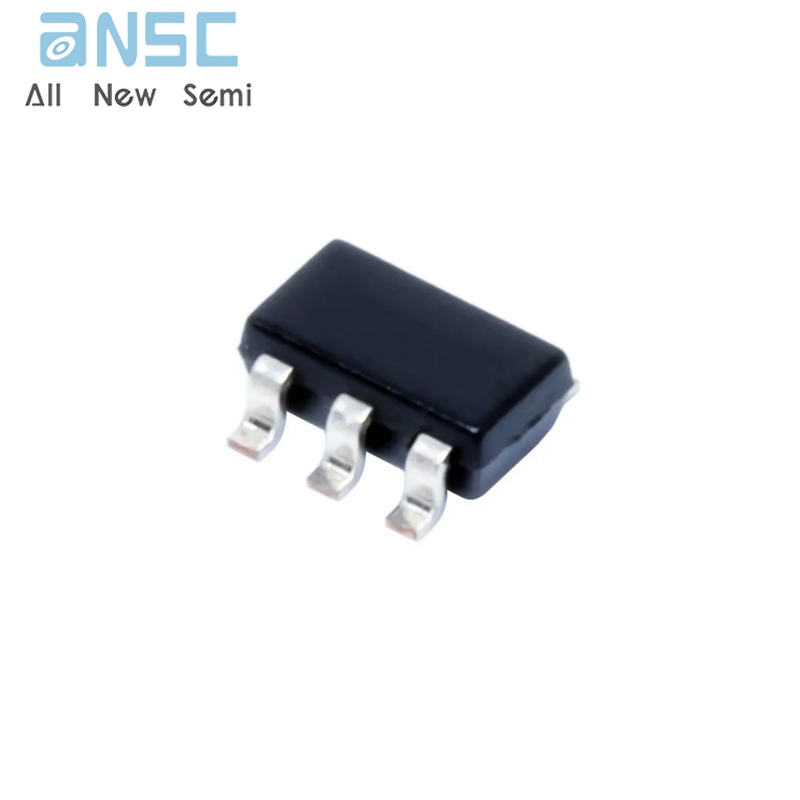

Product Photos
