Spot sales of AD8017AR-REEL7 Dual High Output Current, High Speed Amplifier SOP8

Product Descriptions

The AD8017 is a low cost, dual high speed amplifier capable of driving low distortion signals to within 1.0 V of the supply rail. It is intended for use in single supply xDSL systems where low distortion and low cost are essential. The amplifiers will be able to drive a minimum of 200 mA of output current per amplifier. The AD8017 will deliver –78 dBc of SFDR at 500 kHz, required for many xDSL applications.

Fabricated in ADI’s high speed XFCB process, the high bandwidth and fast slew rate of the AD8017 keep distortion to a minimum, while dissipating a minimum amount of power. The quiescent current of the AD8017 is 7 mA/amplifier.

Low distortion, high output voltage drive, and high output current drive make the AD8017 ideal for use in low cost Customer Premise End (CPE) equipment for ADSL, SDSL, VDSL and proprietary xDSL systems.

The AD8017 drive capability comes in a very compact form. Utilizing ADI’s proprietary Thermal Coastline SOIC package, the AD8017’s total (static and dynamic) power on 12 V supplies is easily dissipated without external heat sink, other than to place the AD8017 on a 4-layer PCB.

The AD8017 will operate over the commercial temperature range –40°C to +85°C.

Product Features

High Output Drive Capability

20 V p-p Differential Output Voltage, RL = 50

10 V p-p Single-Ended Output Voltage While

Delivering 200 mA to a 25   Load

Low Power Operation

5 V to 12 V Voltage Supply @ 7 mA/Amplifier

Low Distortion

–78 dBc @ 500 kHz SFDR, RL = 100  , VO = 2 V p-p

–58 dBc Highest Harmonic @ 1 MHz, IO = 270 mA

(RL = 10 ohm )

High Speed

160 MHz, –3 dB Bandwidth (G = +2)

1600 V/s Slew Rate

Product Applications

xDSL PCI Cards

Consumer DSL Modems

Line Driver

Video Distribution

Product Specification

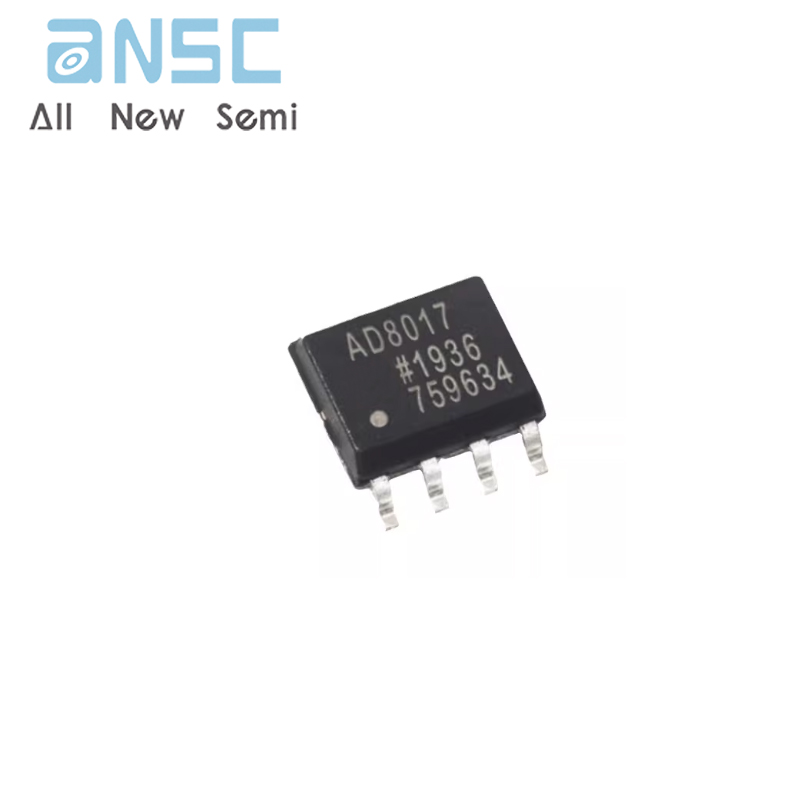

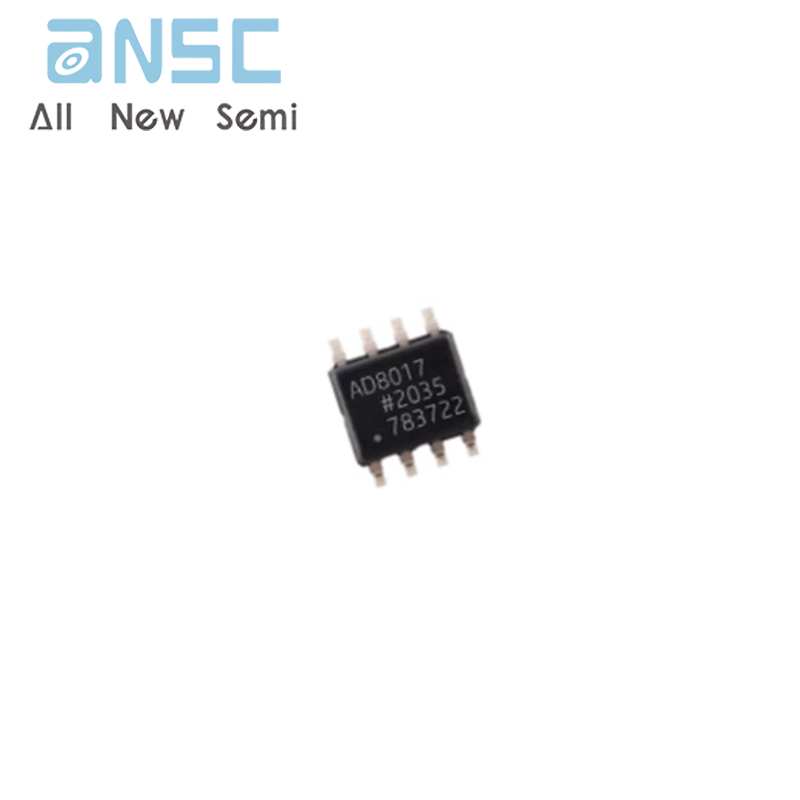

Product Photos

For more product information, please download the PDF
