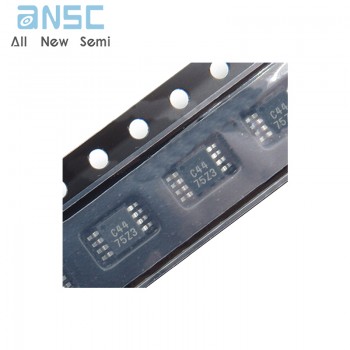

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
OPA2344EA/250 LOW POWER, SINGLE-SUPPLY, RAIL-TO-RAIL OPERATIONAL AMPLIFIERS MSOP8 spot stock
Manufacturer Product Number
OPA2344EA/250
Description
OPA2344EA/250 LOW-POWER OPERATIONAL AMPLIFIERS
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The OPA344 and OPA345 series rail-to-rail CMOS operational amplifiers are designed for precision, low-power, miniature applications. The OPA344 is unity gain stable, while the OPA345 is optimized for gains greater than or equal to five, and has a gain-bandwidth product of 3MHz.
The OPA344 and OPA345 are optimized to operate on a single supply from 2.5V and up to 5.5V with an input common-mode voltage range that extends 300mV beyond the supplies. Quiescent current is only 250µA (max).
Rail-to-rail input and output make them ideal for driving sampling analog-to-digital converters. They are also well suited for general purpose and audio applications and providing I/V conversion at the output of D/A converters. Single, dual and quad versions have identical specs for design flexibility.
A variety of packages are available. All are specified for operation from –40ºC to 85ºC. A SPICE macromodel for design analysis is available for download from www.ti.com.
Product Features
● RAIL-TO-RAIL INPUT
● RAIL-TO-RAIL OUTPUT (within 1mV)
● LOW QUIESCENT CURRENT: 150µA typ
● MicroSIZE PACKAGES
SOT23-5
MSOP-8
TSSOP-14
● GAIN-BANDWIDTH
OPA344: 1MHz, G ≥ 1
OPA345: 3MHz, G ≥ 5
● SLEW RATE
OPA344: 0.8V/µs
OPA345: 2V/µs
● THD + NOISE: 0.006%
Product Applications
● PCMCIA CARDS
● DATA ACQUISITION
● PROCESS CONTROL
● AUDIO PROCESSING
● COMMUNICATIONS
● ACTIVE FILTERS
● TEST EQUIPMENT
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-OPA2344EA/250 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | MicroAmplifier™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Amplifier Type | CMOS |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.8V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 0.2 pA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 150µA (x2 Channels) |
| Current - Output / Channel | 15 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | OPA2344 |

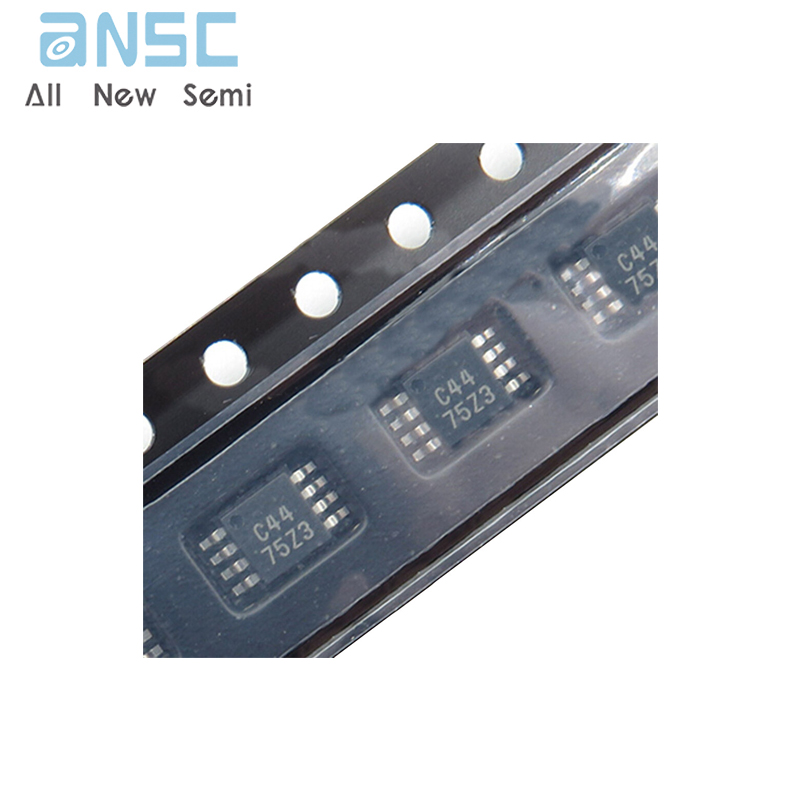

Product Photos
