Hot-selling and scarce OPA2677IDDAR Current Feedback Amplifier 2 Circuit 8-SO PowerPad spot stock

Product Descriptions

The THS6042/3 is a high-speed line driver ideal for driving signals from the remote terminal to the central officein asymmetrical digital subscriber line (ADSL) applications . It can operate from a ±12-V supply voltage whiledrawing only 8.2 mA of supply current per channel .It offers low –79 dBc total harmonic distortion driving a 100-Ωload (2 Vpp).The THS6042/3 offers a high 43-Vpp differential output swing across a 200-Ω load from a ±12-Vsupply. The THS6043 features a low-power shutdown mode, consuming only 300 µA quiescent current perchannel .The THS6042/3 is packaged in standard SOIC,SOIC PowerPAD,and TSSOP PowerPAD packages .

Product Features

Remote Terminal ADSL Line Driver

–  Ideal for Both Full Rate ADSL and G .Lite

–  Compatible With 1:1  Transformer Ratio

Low 2.1 pA/√Hz Noninverting Current Noise

–  Reduces Noise Feedback Through Hybrid Into Downstream Channel

Wide Supply Voltage Range ±5 V to ±15 V

–  Ideal for ±12-V Operation

Wide Output Swing

–  43-Vpp Differential Output Voltage,R L = 200 Ω, ±12-V Supply

High Output Current

–  350 mA (typ)

High Speed

–  120 MHz (–3 dB, G=1, ±12 V, R L = 25 Ω)

–  1200 V/µs Slew Rate (G = 4, ±12 V)

Low Distortion, Single-Ended, G = 4

– –79 dBc (250 kHz, 2 Vpp, 100-Ω load)

Low Power Shutdown (THS6043)

–  300-µA Total Standby Current

Thermal Shutdown and Short-Circuit Protection

Standard SOIC, SOIC PowerPAD and TSSOP PowerPAD Package

Evaluation Module Available

Product Specification

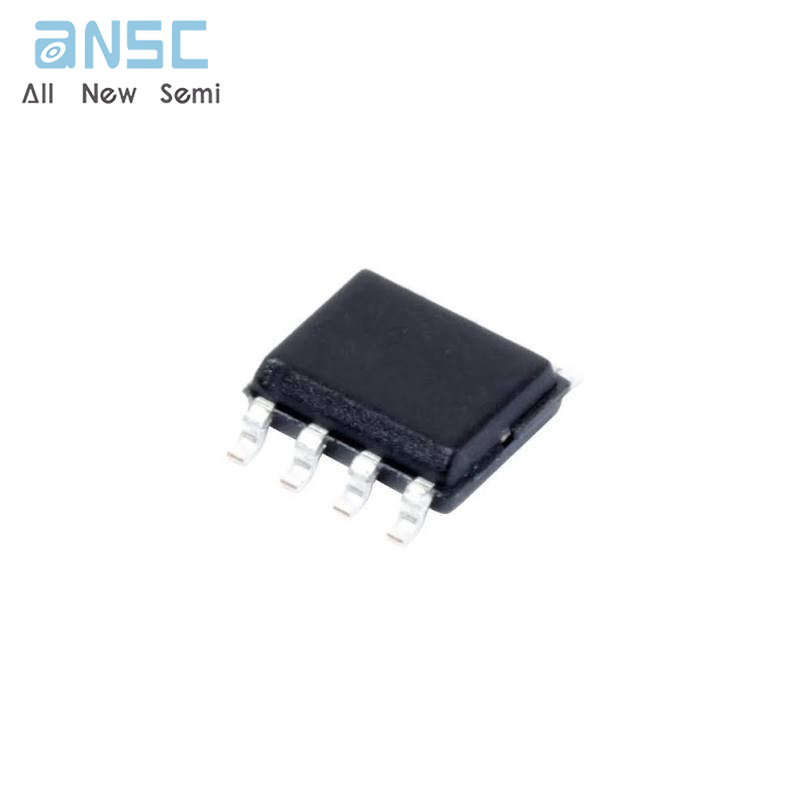

Product Photos

For more product information, please download the PDF
