Hot-selling and scarce ISL59420IUZ-T7 400MHz Multiplexing Amplifier IC 10-MSOP spot stock

Product Descriptions

The ISL59420 is a 420MHz bandwidth 2:1 multiplexingamplifier designed primarily for video switching .This Mux-amp has user-settable gain and also feature a highspeed three-state function to enable the output of multipledevices to be wired together.All logic inputs have pull-downsto ground and may be left floating .The ENABLE pin,whenpulled high,sets the ISL59420 to the low current power-downmode for power sensitive applications -consuming just 5mW.

Product Features

•420MHz (-3dB)Bandwidth (AV =1,V OUT =400mV P -P)

• 165MHz (-3dB)Bandwidth (AV =2,V OUT =2V P-P)

• Slew Rate (AV =1,R L =500Ω, V OUT =4V)......966V/µs

• Slew Rate (AV =2,R L =500Ω, V OUT =5V).....1462V/µs

• Selectable Gain

• High Speed Three-State Output (HIZ)

• Low Current Power-Down                 5mW

• Pb-Free Plus Anneal Available (RoHS Compliant)

Product Applications

• HDTV/DTV Analog Inputs

•Video Projectors

• Computer Monitors

• Set-Top Boxes

• Security Video

• Broadcast Video Equipment

Product Specification

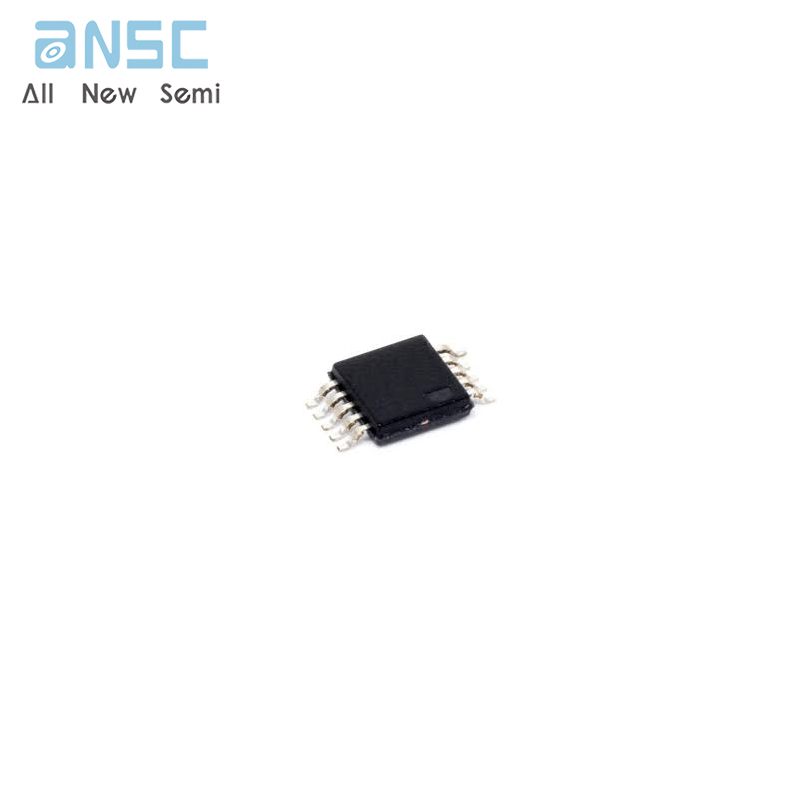

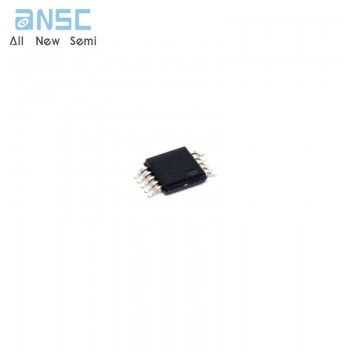

Product Photos

For more product information, please download the PDF
