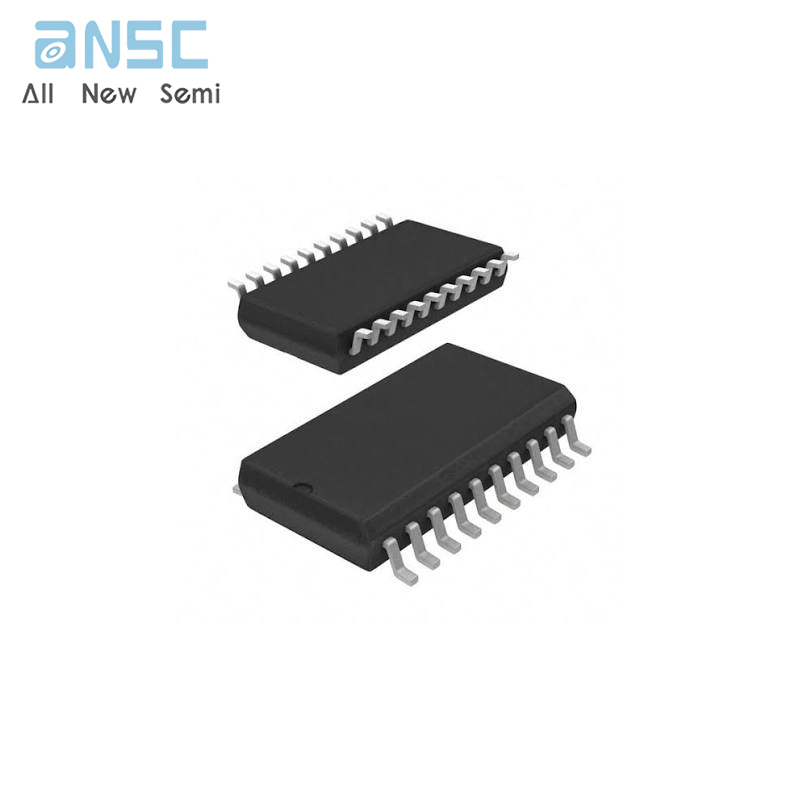

Hot-selling and scarce 74ACT374SCX Octal D-Type Flip-Flop with 3-STATE Outputs SOP20 spot stock
Manufacturer Product Number
74ACT374SCX
Description
74ACT374SCX Octal D-Type Flip-Flop with 3-STATE Outputs SOP20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AC/ACT374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-STATE outputs for bus-oriented applications. A buffered Clock (CP) and Output Enable (OE) are common to all flip-flops.
Product Features
■ ICC and IOZ reduced by 50%
■ Buffered positive edge-triggered clock
■ 3-STATE outputs for bus-oriented applications
■ Outputs source/sink 24mA
■ See 273 for reset version
■ See 377 for clock enable version
■ See 373 for transparent latch version
■ See 574 for broadside pinout version
■ See 564 for broadside pinout version with inverted outputs
■ ACT374 has TTL-compatible inputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74ACT374SCX |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74ACT |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 160 MHz |
| Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 40 µA |
| Input Capacitance | 4.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOIC |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Base Product Number | 74ACT374 |
Product Photos
For more product information, please download the PDF
