Hot sale Original SN54S03J NAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14
Manufacturer
Manufacturer Product Number
SN54S03J
Description
SN54S03J NAND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14
Package Condition
TUBE
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

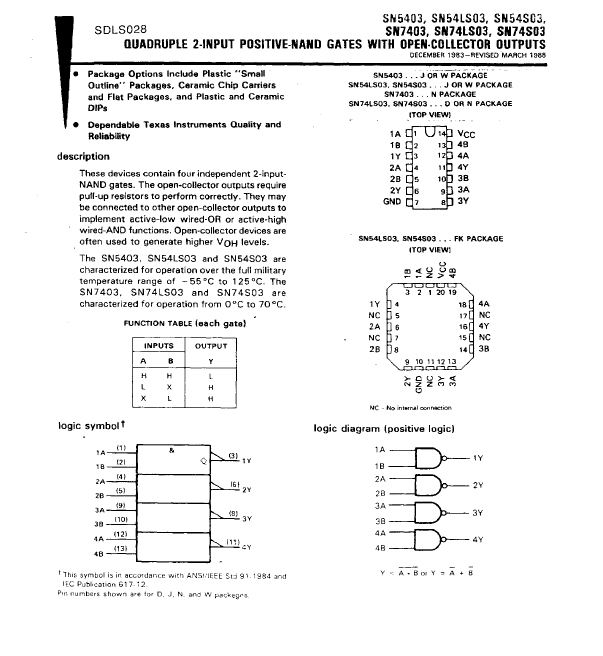

Package Options Include Plastic "Small Outline" Packages, Ceramic Chip Carriers and Flat Packages, and Plastic and Ceramic DIPs Dependable Texas Instruments Quality and Reliability description These devices contain four independent 2-inputNAND gates. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels. The SN5403, SN54LS03 and SN54S03 are characterized for operation over the full military temperature range of - 55°C to 125°С. The SN7403, SN74LS03 and SN74S03 are characterized for operation from 0°C to 70°C. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - SN54S03J |
| Part Package Code | DIP |
| Package Description | Dip, Dip14,.3 |
| Pin Count | 14 |
| Family | S |
| JESD-30 Code | R-GDIP-T14 |
| JESD-609 Code | e0 |
| Length | 19.56 Mm |
| Load Capacitance (CL) | 15 Pf |
| Logic IC Type | Nand Gate |
| Max I(ol) | 0.02 A |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Characteristics | Open-Collector |
| Package Body Material | Ceramic, Glass-Sealed |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Packing Method | Tube |
| Power Supply Current-Max (ICC) | 36 Ma |
| Prop. Delay@Nom-Sup | 32 Ns |
| Propagation Delay (tpd) | 7.5 Ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | No |
| Seated Height-Max | 5.08 Mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | No |
| Technology | Ttl |
| Temperature Grade | Military |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 7.62 Mm |

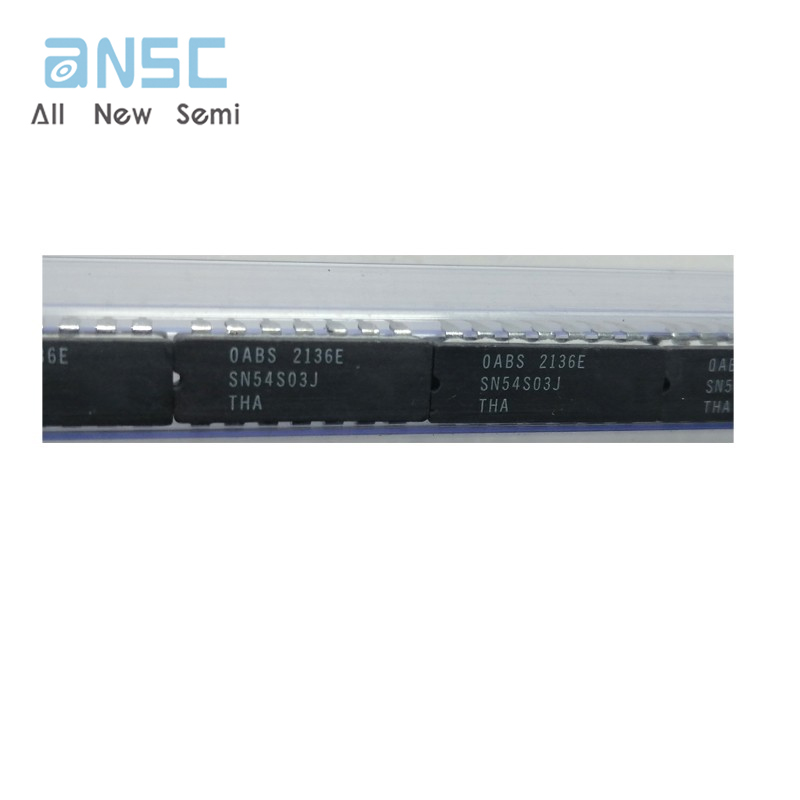

Actual image of the product

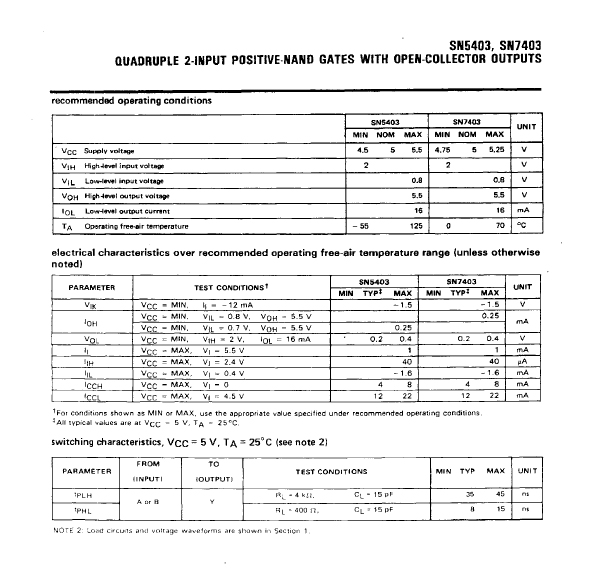

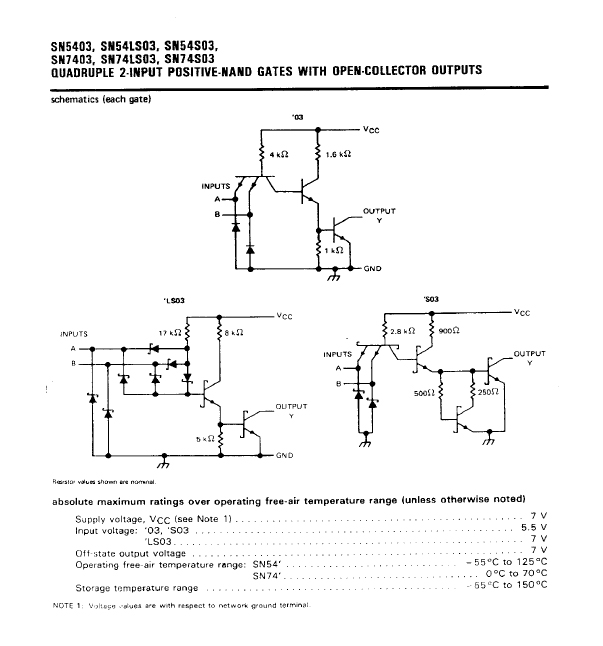

Product datasheet
For more information, please download
