Hot sale Original SN74LS10N IC GATE NAND 3CH 3-INP 14DIP NAND Gate IC 3 Channel 14-PDIP
Manufacturer Product Number
SN74LS10N
Description
SN74LS10N IC GATE NAND 3CH 3-INP 14DIP NAND Gate IC 3 Channel 14-PDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The SN74LS10N is a 14-pin DIP (0.300, 7.62mm) through-hole packaged, 3-input NAND gate integrated circuit. It belongs to the 74LS family, which is a low-power Schmitt trigger version of the 74LS logic family. This device is designed to operate with a single 5V power supply and is suitable for use in a wide range of applications, including digital logic, data processing, and control systems. Features: 3-input NAND gate logic function Operating supply voltage: 5V Operating temperature range: 0°C to 70°C Propagation delay: 15ns @ 5V, 15pF Quiescent current: 1.8mA Output current: 8mA Schmitt trigger input: No Terminal finish: Nickel/Palladium/Gold (Ni/Pd/Au) Terminal pitch: 2.54mm Terminal position: DUAL Termination: Through-hole Package / Case: 14-DIP (0.300, 7.62mm) Packaging: Tube Applications: Primary applications: Digital logic and data processing systems Control systems and automation Industrial control systems Secondary applications: Medical devices and equipment Aerospace and defense systems Automotive systems |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - SN74LS10N |
|
Category |
Integrated Circuits (ICs) Logic Gates and Inverters |
|
Mfr |
/ |
|
Series |
74LS |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Logic Type |
NAND Gate |
|
Number of Circuits |
3 |
|
Number of Inputs |
3 |
|
Features |
- |
|
Voltage - Supply |
4.75V ~ 5.25V |
|
Current - Output High, Low |
400µA, 8mA |
|
Input Logic Level - Low |
0.8V |
|
Input Logic Level - High |
2V |
|
Max Propagation Delay @ V, Max CL |
15ns @ 5V, 15pF |
|
Operating Temperature |
0°C ~ 70°C |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
14-PDIP |
|
Package / Case |
14-DIP (0.300", 7.62mm) |
|
Base Product Number |
74LS10 |

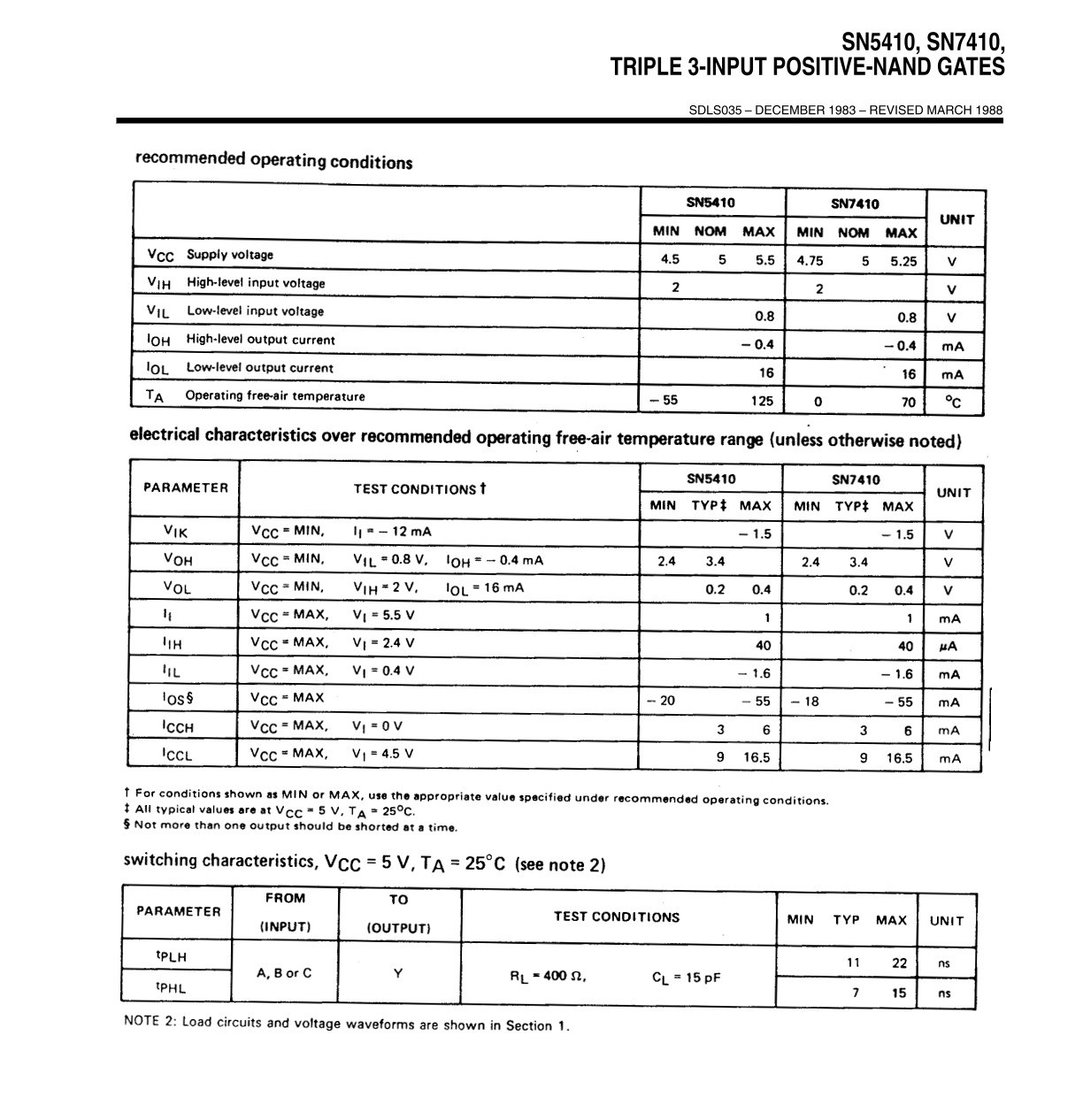

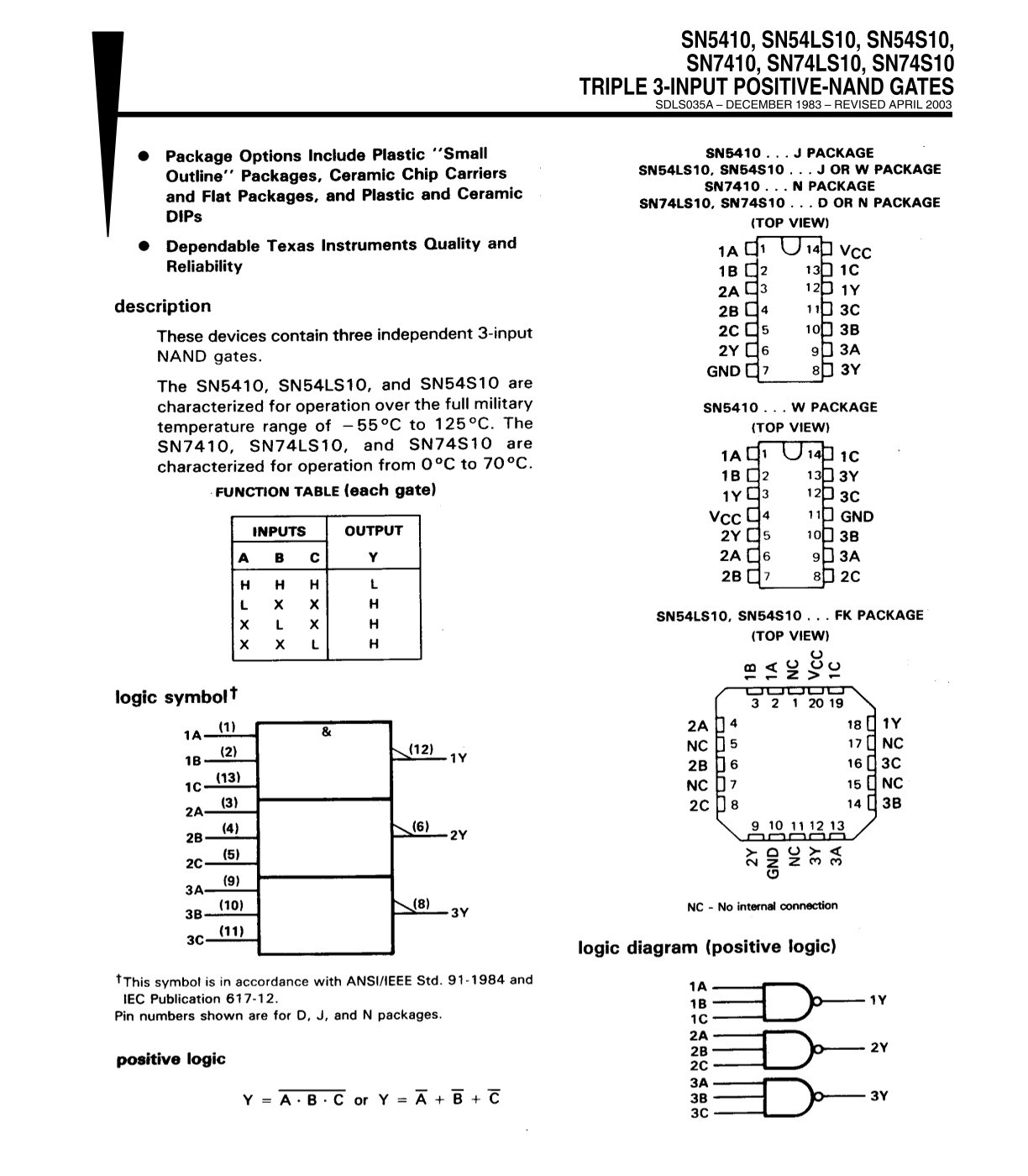

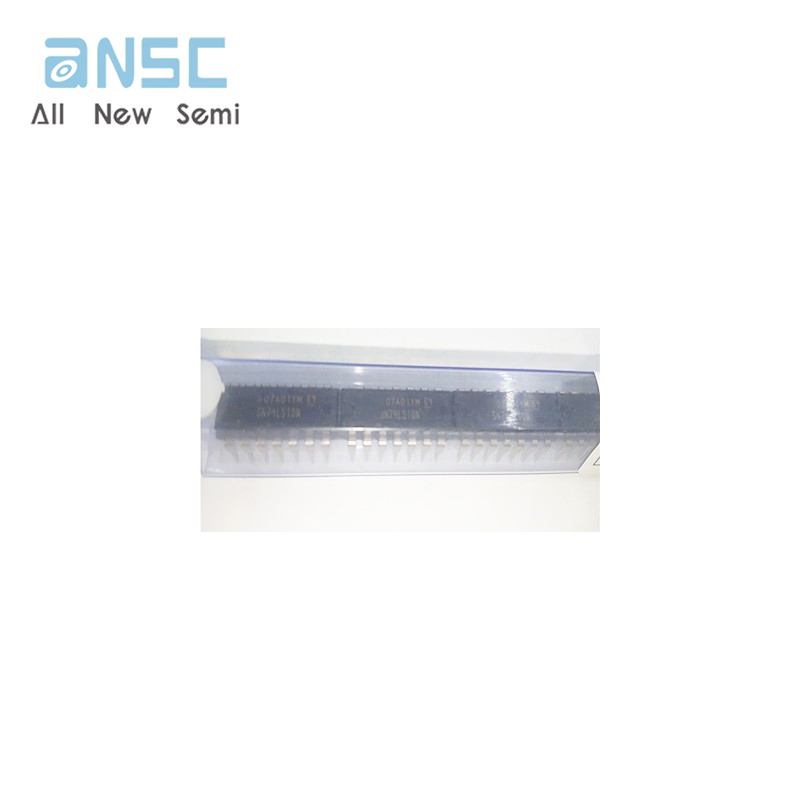

Actual image of the product

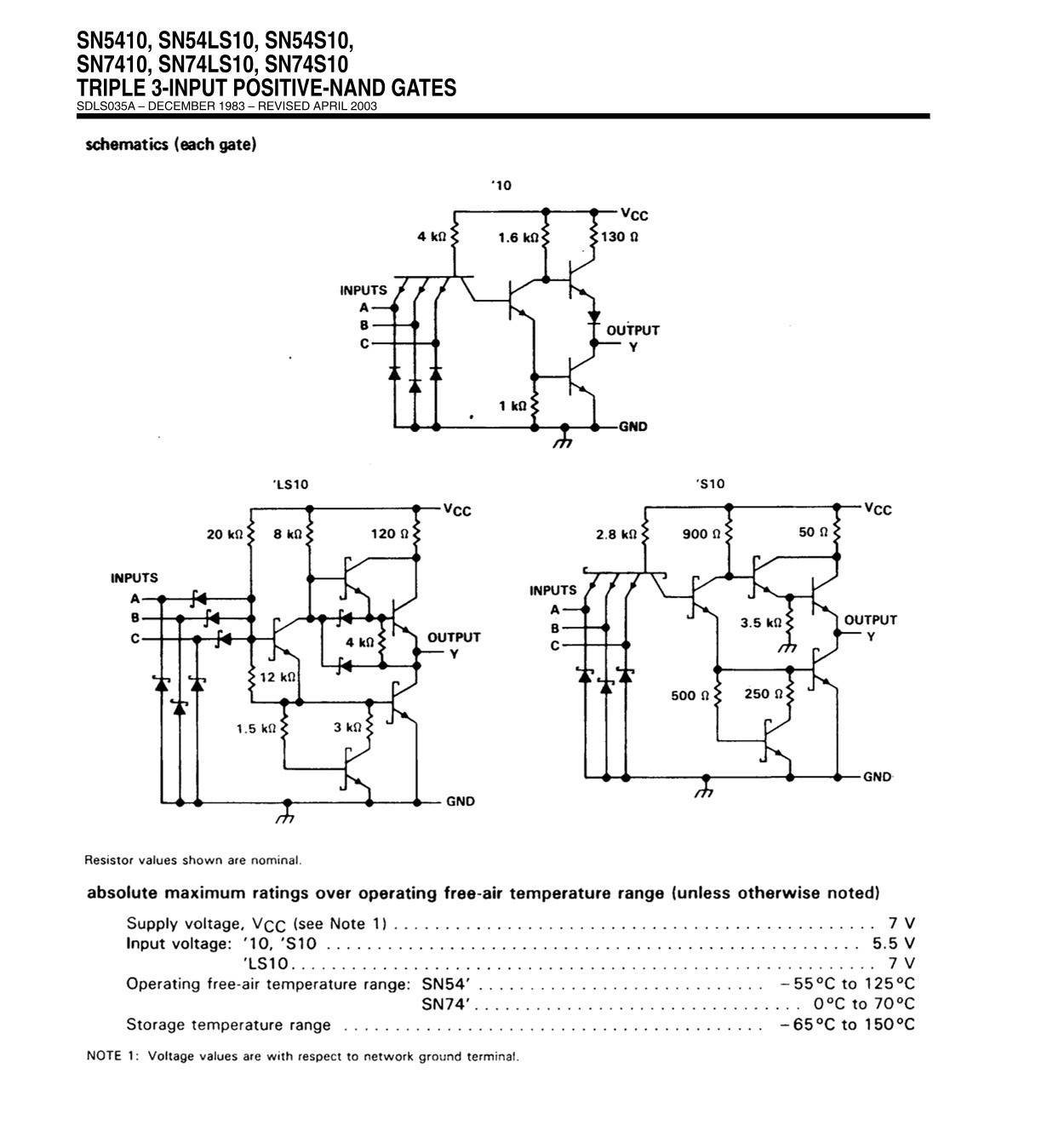

Product datasheet
