Hot-selling and scarce SN74ALS11AN TRIPLE 3-INPUT POSITIVE-AND GATES DIP14 spot stock
Manufacturer Product Number
SN74ALS11AN
Description
SN74ALS11AN TRIPLE 3-INPUT POSITIVE-AND GATES DIP14 spot stock
Package Condition
TUBE
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These devices contain three independent 3-input positive-AND gates. They perform the Boolean functions Y A • B • C or Y =A+B+C in positive logic.
Product Features
-
4.5-V to 5.5-V VCC Operation
-
Max tpd of 5.5 ns at 5 V
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74ALS11AN |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ALS |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 400uA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 5V, 50pF |
| Operating Temperature | 0℃ ~ 70℃ |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74ALS11 |

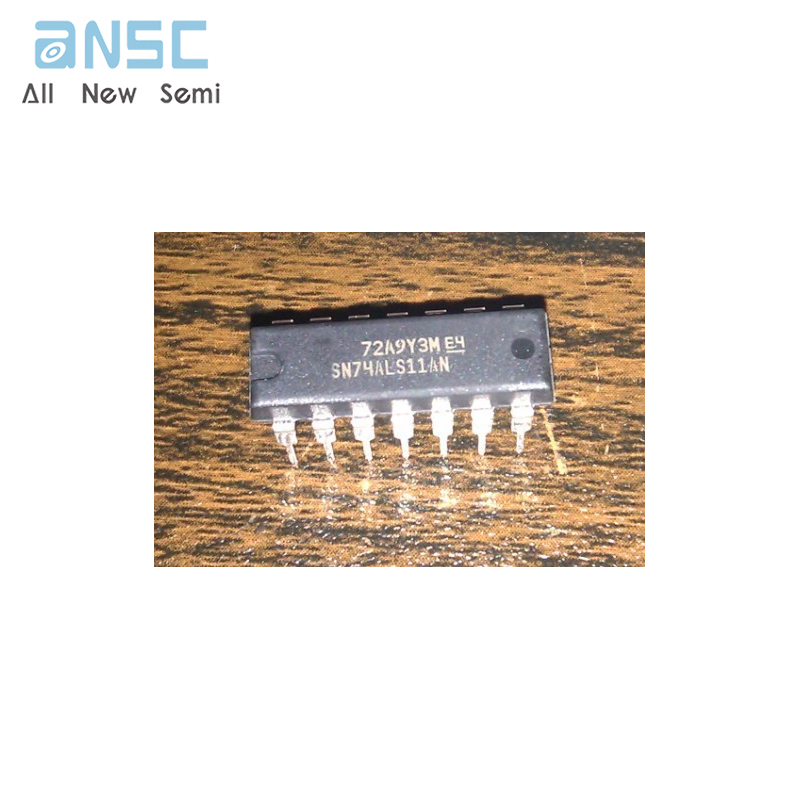

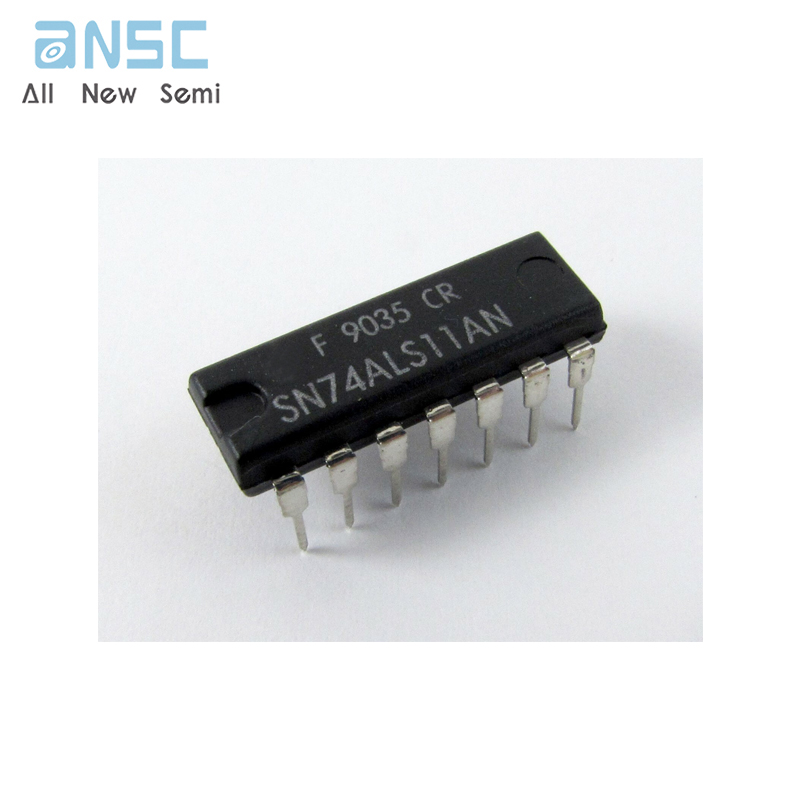

Product Photos
For more product information, please download the PDF
