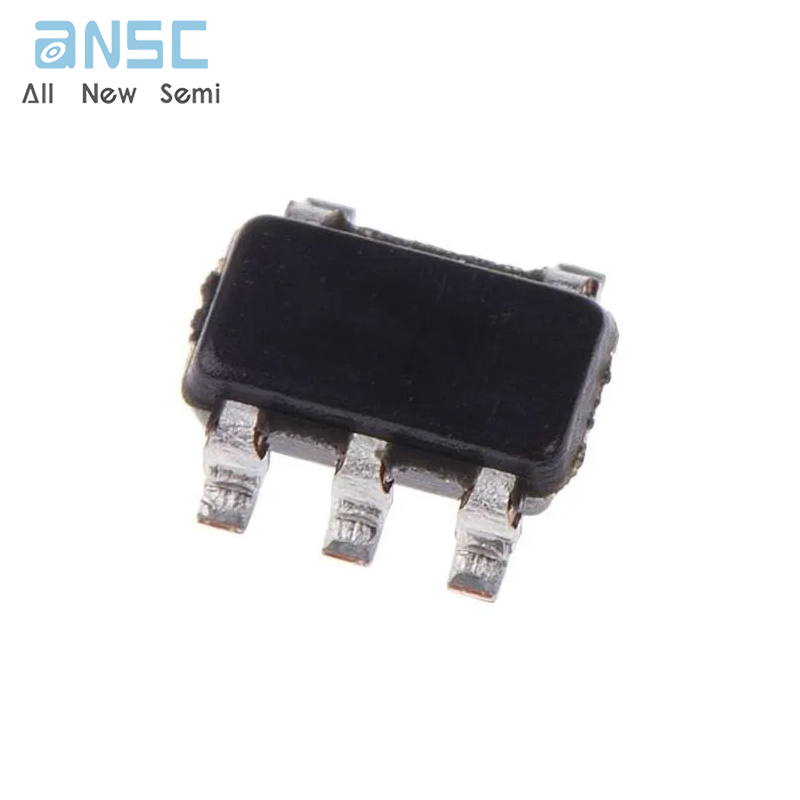

Hot-selling and scarce NC7S32M5 TinyLogic HS 2-Input OR Gate SOT-23 spot stock

Product Descriptions

The NC7S32 is a single 2-Input high performance CMOS OR   Gate.  Advanced   Silicon   Gate   CMOS   fabrication assures high speed and low power circuit operation over abroad V CC  range. ESD protection diodes inherently guard both inputs and output with respect to the V CC  and GND rails.  Three  stages  of gain  between  inputs  and  outputs assures  high  noise  immunity  and  reduced  sensitivity  to input edge rate.

Product Features

■ Space saving SOT23 or SC70 5-lead package

■ Ultra small MicroPak leadless package

■ High Speed; t PD 3.5 ns typ

■ Low Quiescent Power; ICC < 1 µA

■ Balanced Output Drive; 2 mA IOL , −2 mA IOH

■ Broad V CC Operating Range: 2V–6V

■ Balanced Propagation Delays

■ Specified for 3V Operation

Product Specifications

Product Photos

​

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
