Hot-selling and scarce 74HCT32D Quad 2-input OR gate SOP14 spot stock
Manufacturer Product Number
74HCT32D
Description
74HCT32D Quad 2-input OR gate SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 74HC/HCT32 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT32 provide the 2-input OR function.
Product Features
• Output capability: standard
• ICC category: SSI
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74HCT32D |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74HCT |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 uA |
| Current - Output High, Low | 4mA, 4mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 18ns @ 5.5V, 50pF |
| Operating Temperature | -40℃ ~ 85℃ |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74HCT32 |

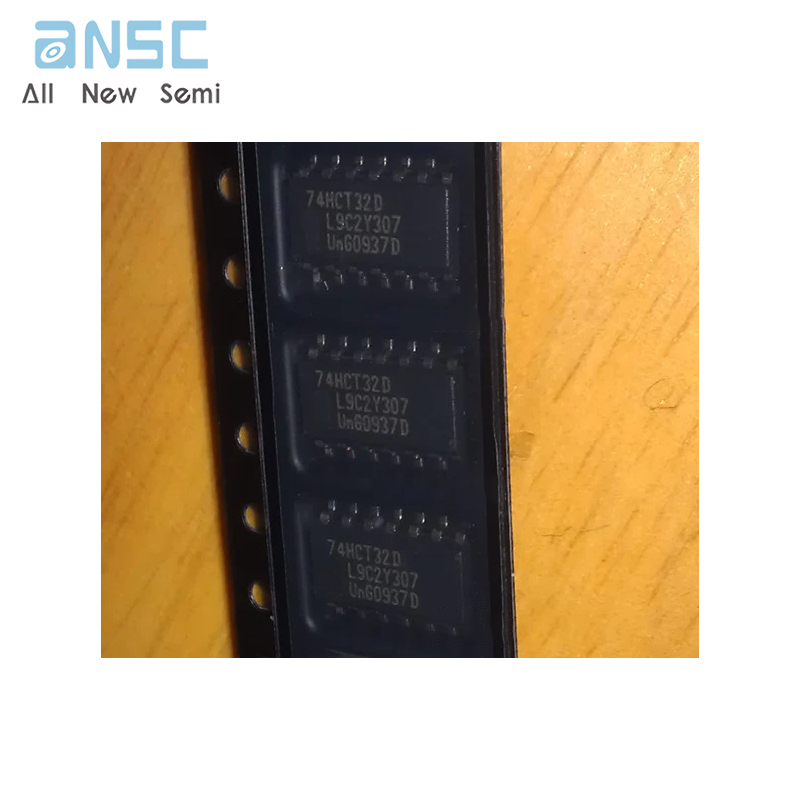

Product Photos
For more product information, please download the PDF
