Hot sale Original DM74S374N IC FF D-TYPE SINGLE 8BIT 20PDIP Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP
Manufacturer Product Number
DM74S374N
Description
DM74S374N IC FF D-TYPE SINGLE 8BIT 20PDIP Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description These 8-bit registers feature totem-pole 3-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. The high-impedance state and increased high-logic-level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pull-up components. They are particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. Features ■ Choice of 8 latches or 8 D-type flip-flops in a single package ■ 3-STATE bus-driving outputs ■ Full parallel-access for loading ■ Buffered control inputs ■ P-N-P input reduce D-C loading on data lines |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC-DM74S374N |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | Original |
| Series | 74S |
| Packaging | Tube |
| Part Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 75 MHz |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 6.5mA, 20mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 110 mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Base Product Number | 74S374 |

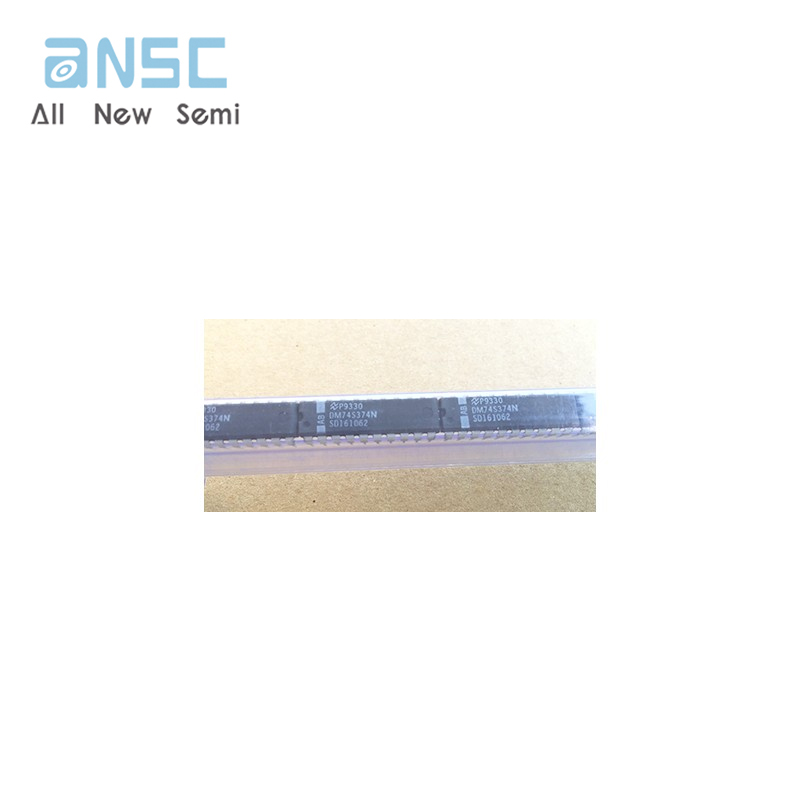

Actual image of the product

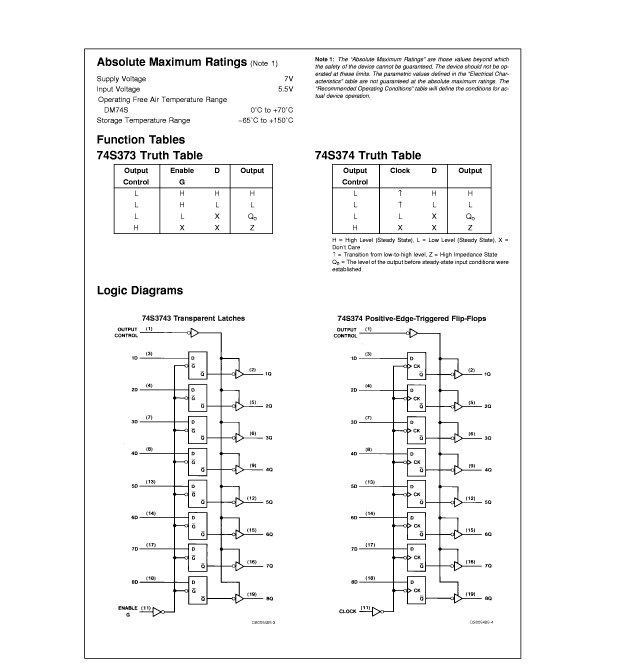

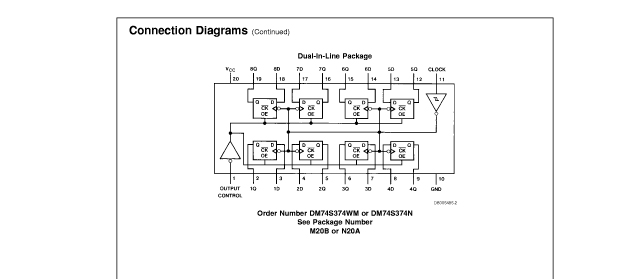

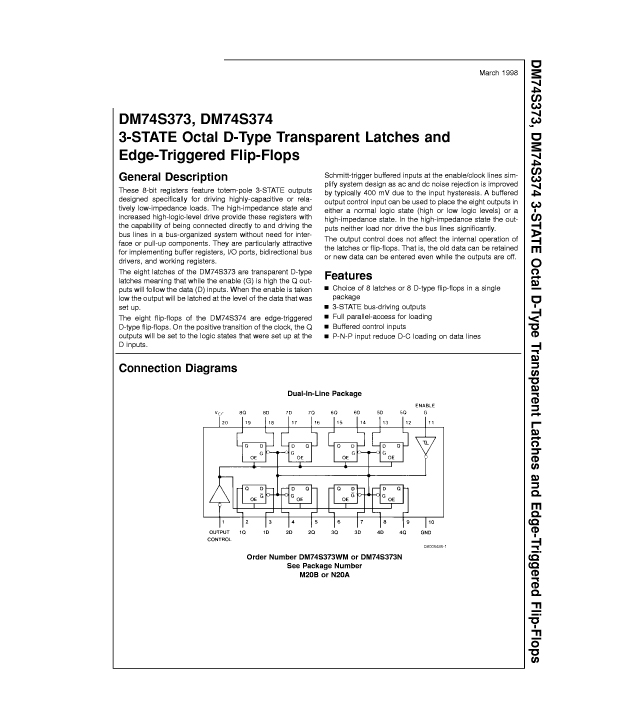

Product datasheet
For more information, please download
