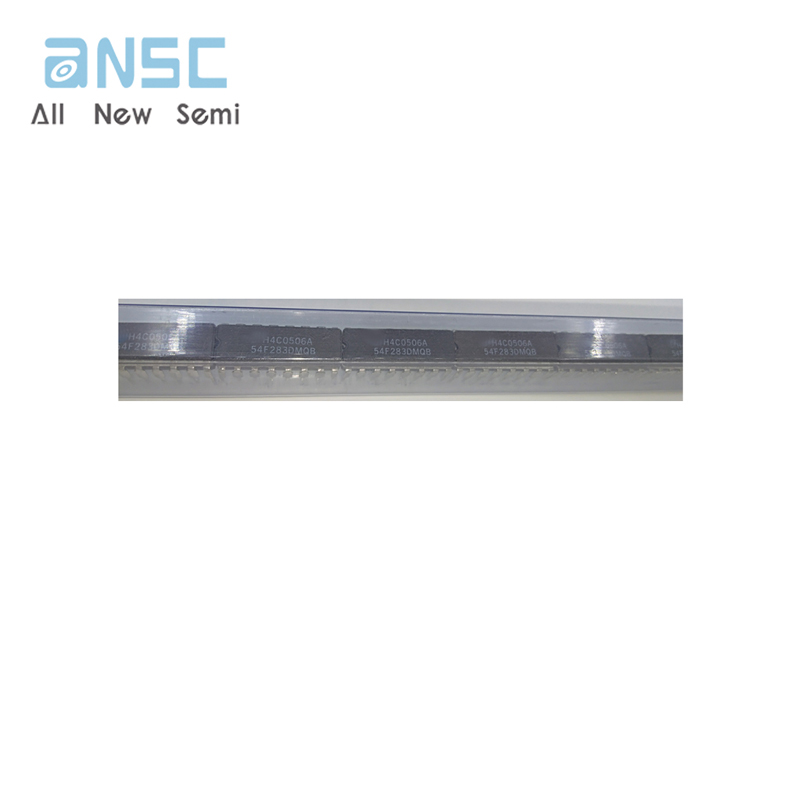

Hot sale original 54F283DMQB IC Logic Adder/Subtractor, F/FAST Series, 4-Bit, True Output, TTL, CDIP16
Manufacturer Product Number
54F283DMQB
Description
54F283DMQB IC Logic Adder/Subtractor, F/FAST Series, 4-Bit, True Output, TTL, CDIP16
Package Condition
tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| 4-BIT BINARY FULL ADDER (With Fast Carry) FAST™ SCHOTTKY TTL The MC54/74F283 high-speed 4-bit binary full adder with internal carry lookahead, accepts two 4-bit binary words (A0–A3, B0–B3) and a Carry input (C0). It generates the binary Sum outputs (S0–S3) and the Carry output (C4) from the most significant bit. The F283 will operate with either active-HIGH or active-LOW operands (positive or negative logic). |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F283DMQB |
| Ihs Manufacturer | Original |
| Package Description | CERAMIC, DIP-16 |
| Additional Feature | FULL ADDER; WITH INTERNAL CARRY LOOKAHEAD |
| Family | F/FAST |
| Length | 19.43 mm |
| Logic IC Type | ADDER/SUBTRACTOR |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 4 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 55 mA |
| Propagation Delay (tpd) | 17 ns |
| Qualification Status | Not Qualified |
| Screening Level | MIL-STD-883 Class B |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
