Hot sale original 74ACT02SC IC NOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14, 0.150 INCH, MS-012, SOIC-14

Manufacturer Product Number

74ACT02SC

Description

74ACT02SC IC NOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14, 0.150 INCH, MS-012, SOIC-14

Package Condition

Tape & Reel (TR)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

General Description

The AC02/ACT02 contains four, 2-input NOR gates.

Features

■ ICC reduced by 50% on 74AC02 only

■ Outputs source/sink 24 mA

■ ACT02 has TTL-compatible inputs

Product Description

Type#	Description
ANSC PART#	ANSC - 74ACT02SC
Ihs Manufacturer	Original
Part Package Code	SOIC
Package Description	0.150 INCH, MS-012, SOIC-14
Pin Count	14
Family	ACT
Length	8.6235 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NOR GATE
Max I(ol)	0.024 A
Moisture Sensitivity Level	1
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 °C
Operating Temperature-Min	-40 °C
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE
Peak Reflow Temperature (Cel)	260
Prop. Delay@Nom-Sup	10 ns
Propagation Delay (tpd)	10 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.753 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	3.9 mm

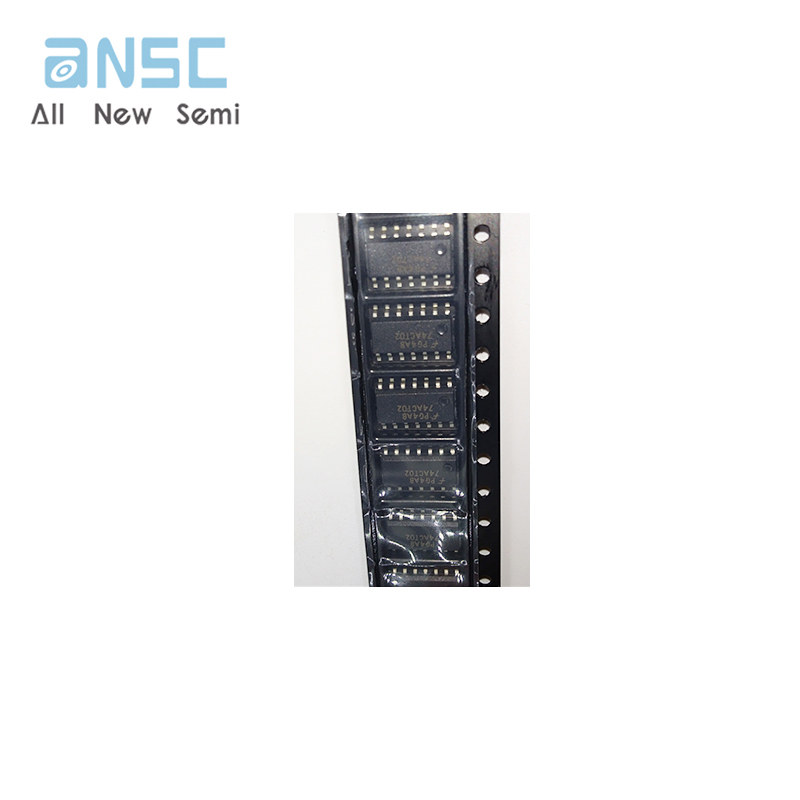

Product Photos

74ACT02SC
