Hot-selling and scarce SN74CBT16214CDGGR 12-BIT 1-OF-3 FET MULTIPLEXER/DEMULTIPLEXER TSSOP56 spot stock

Product Features

        Member of the Texas Instruments Widebus Family

       Undershoot Protection for Off-Isolation on A and B Ports Up To −2 V

       Bidirectional Data Flow, With Near-Zero Propagation Delay

       Low ON-State Resistance (ron) Characteristics (ron = 3 Ω Typical)

       Low Input/Output Capacitance Minimizes Loading and Signal Distortion (Cio(OFF) = 5.5 pF Typical)

       Data and Control Inputs Provide Undershoot Clamp Diodes

       Low Power Consumption (ICC = 3 µA Max)

      V CC Operating Range From 4 V to 5.5 V

       Data I/Os Support 0 to 5-V Signaling Levels (0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V)

       Control Inputs Can Be Driven by TTL or 5-V/3.3-V CMOS Outputs

       I off Supports Partial-Power-Down Mode Operation

       Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

       ESD Performance Tested Per JESD 22

−  2000-V Human-Body Model (A114-B, Class II)

−  1000-V Charged-Device Model (C101)

      Supports Both Digital and Analog Applications: PCI Interface, Bus Isolation,Low-Distortion Signal Gating

Product Specification

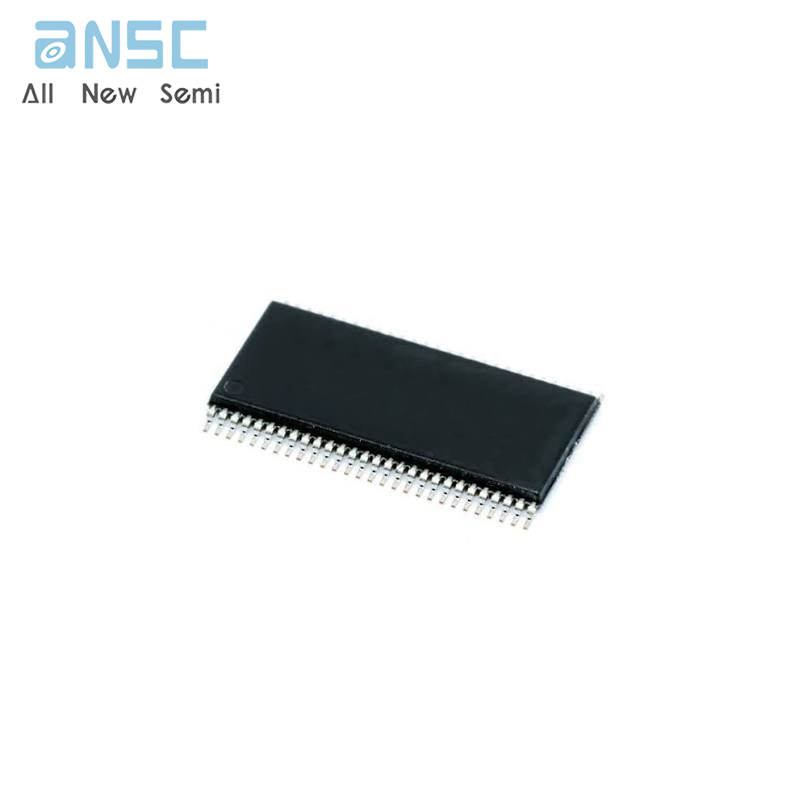

Product Photos

For more product information, please download the PDF
