Hot sale original electronics CD4013BE Flip-flops, latches & registers CMOS Dual D-Type Flip Flop D-type flip-flops
Manufacturer Product Number
CD4013BE
Description
CD4013BE Flip-flops, latches & registers CMOS Dual D-Type Flip Flop D-type flip-flops
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description The CD4013B dual D-type flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement mode transistors. Each flip-flop has independent data, set, reset, and clock inputs and “Q” and “Q” outputs. These devices can be used for shift register applications, and by connecting “Q” output to the data input, for counter and toggle applications. The logic level present at the “D” input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line respectively. Features ■ Wide supply voltage range: 3.0V to 15V ■ High noise immunity: 0.45 VDD (typ.) ■ Low power TTL: fan out of 2 driving 74L compatibility: or 1 driving 74LS Applications • Automotive • Data terminals • Instrumentation • Medical electronics • Alarm system • Industrial electronics • Remote metering • Computers |
Product Description
| Type | Description |
| ANSC PART# | ANSC- CD4013BE |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | Original |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 24 MHz |
| Max Propagation Delay @ V, Max CL | 90ns @ 15V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | CD4013 |

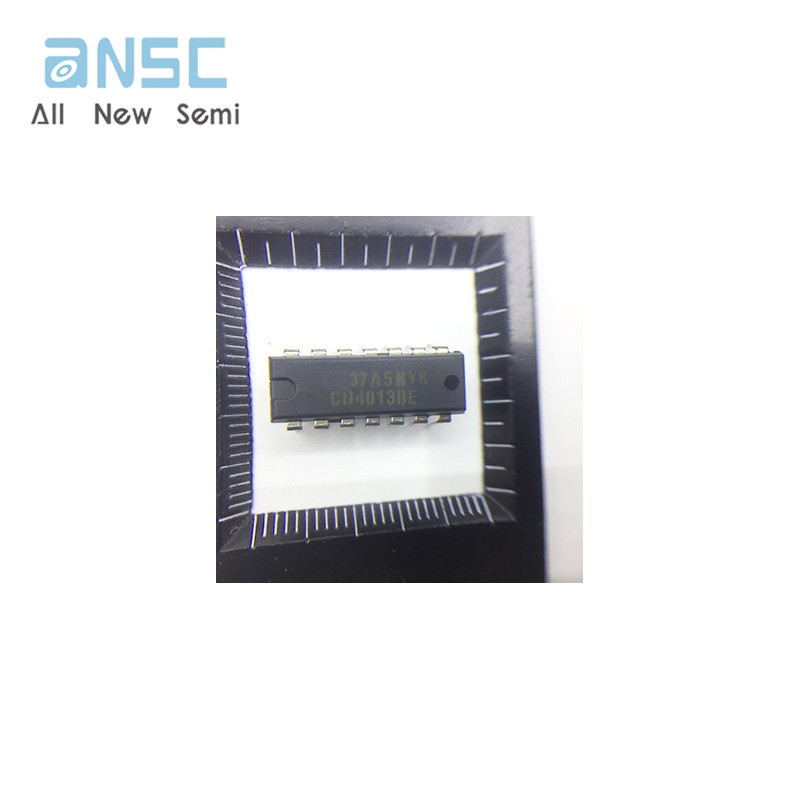

Product Photos

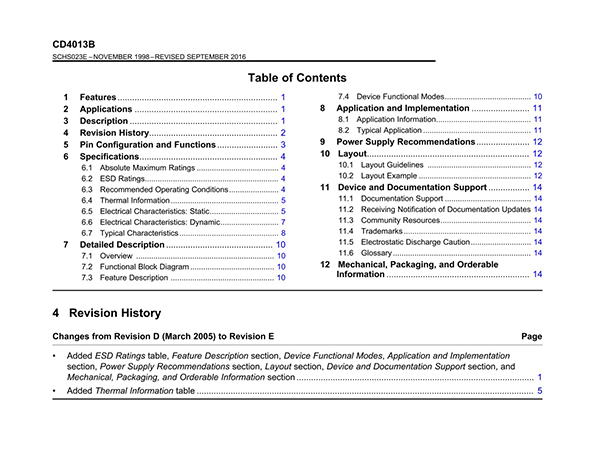

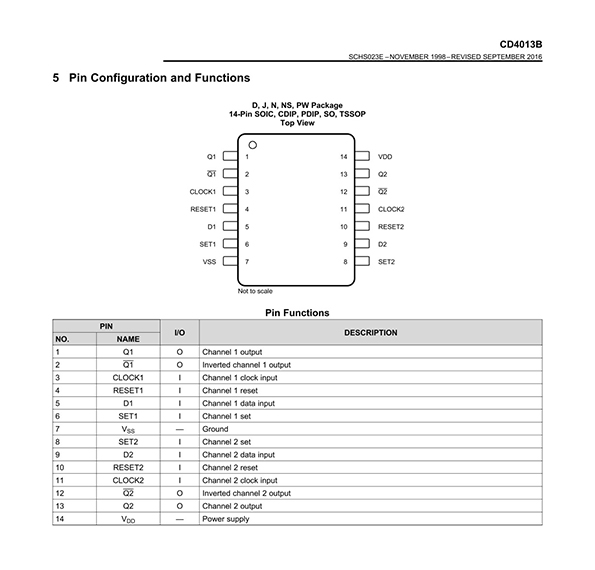

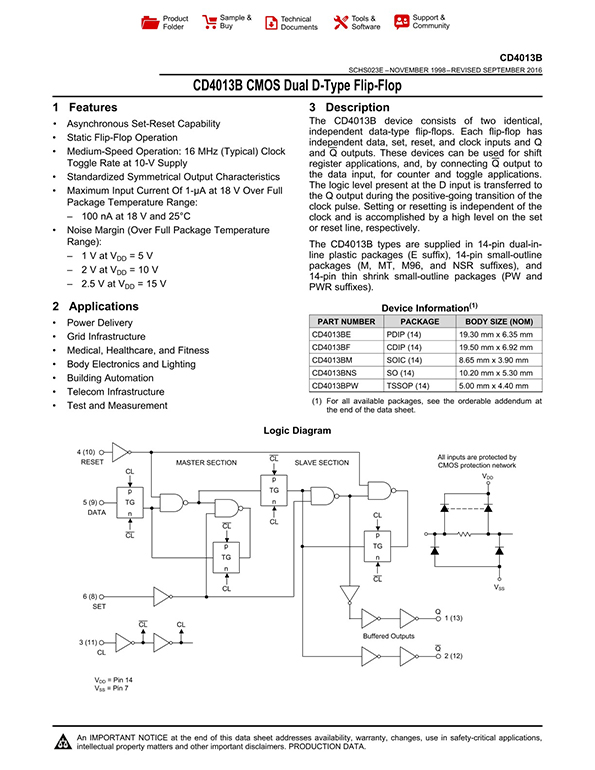

Product datasheet
