Hot-selling and scarce 74HC32D OR Gate IC 4 Channel 14-SOIC spot stock
Manufacturer Product Number
74HC32D
Description
74HC32D OR Gate IC 4 Channel 14-SOIC spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 74HC32D is a high speed CMOS 2-INPUT OR GATE fabricated with silicon gate C 2MOS technology.
The 74HC32D is a high speed CMOS 2-INPUT OR GATE fabricated with silicon gate C 2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.
The internal circuit is composed of 2 stages including buffer output, which provide high noise immunity and stable output.
All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Product Features
(1) High speed: tpd = 6 ns (typ.) at VCC = 5 V
(2) Low power dissipation: ICC = 1.0µA (max) at Ta = 25℃
(3) Balanced propagation delays: tPLH≈ tPHL
(4) Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74HC32D |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74HC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74HC32 |

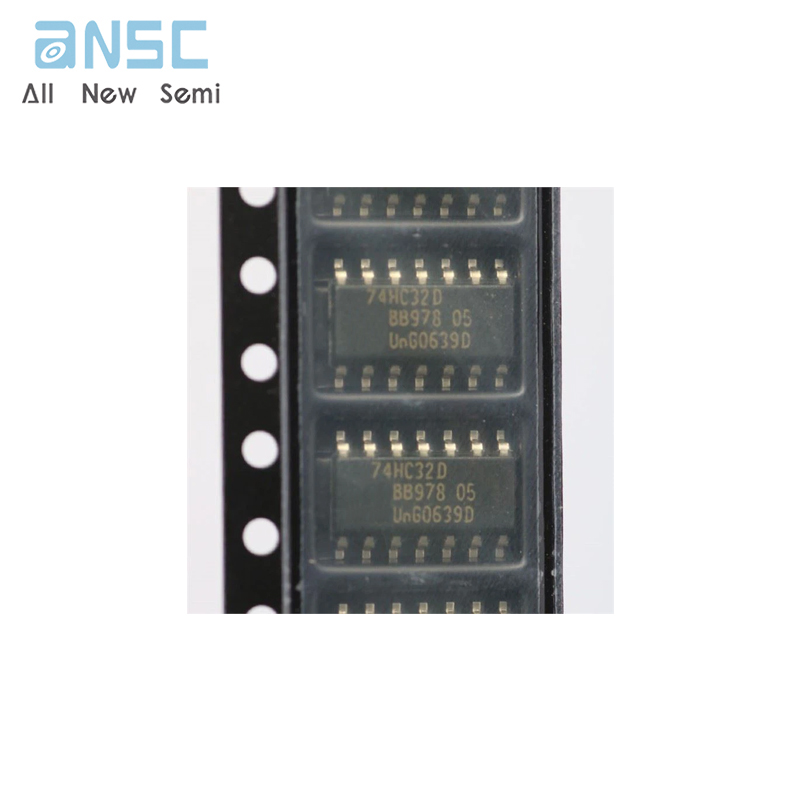

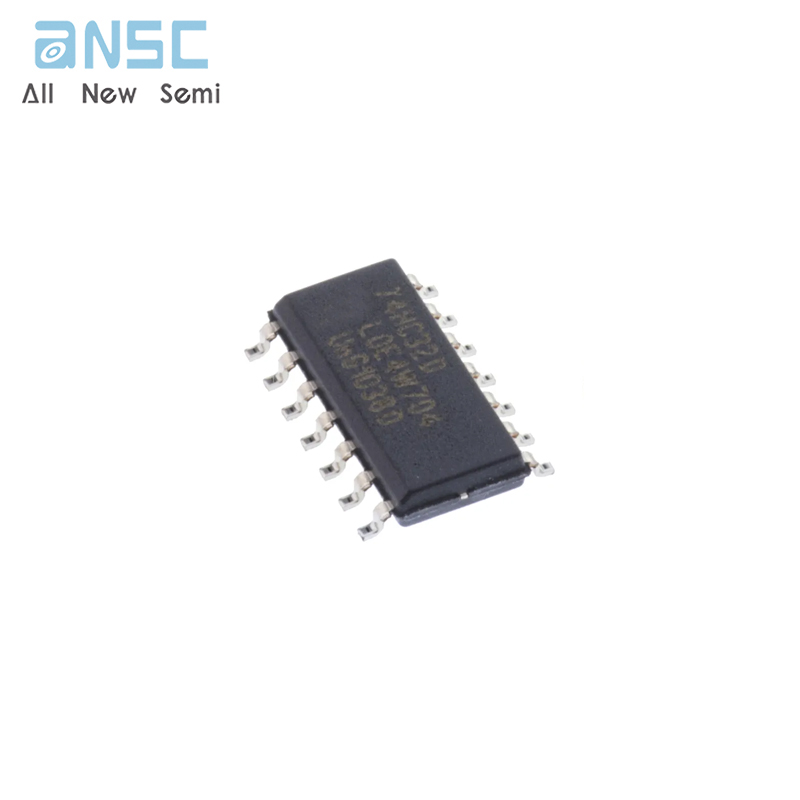

Product Photos
