Hot sale original 54F280DMQB IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDIP14, CERAMIC, DIP-14
Manufacturer
Manufacturer Product Number
54F280DMQB
Description
54F280DMQB IC F/FAST SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDIP14, CERAMIC, DIP-14
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| 9-BIT PARITY GENERATOR/CHECKER The MC54/74F280 is a high-speed parity generator/checker that accepts nine bits of input data and detects whether an even or an odd number of these inputs is HIGH. If an even number of inputs is HIGH, the Sum Even output is HIGH. If an odd number is HIGH, the Sum Even output is LOW. The Sum Odd output is the complement of the Sum Even output. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F280DMQB |
| hs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | CERAMIC, DIP-14 |
| Pin Count | 14 |
| Reach Compliance Code | Unknown |
| Additional Feature | LG_MAX |
| Family | F/FAST |
| Length | 19.93 mm |
| Logic IC Type | PARITY GENERATOR/CHECKER |
| Number of Bits | 9 |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 38 mA |
| Propagation Delay (tpd) | 21 ns |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

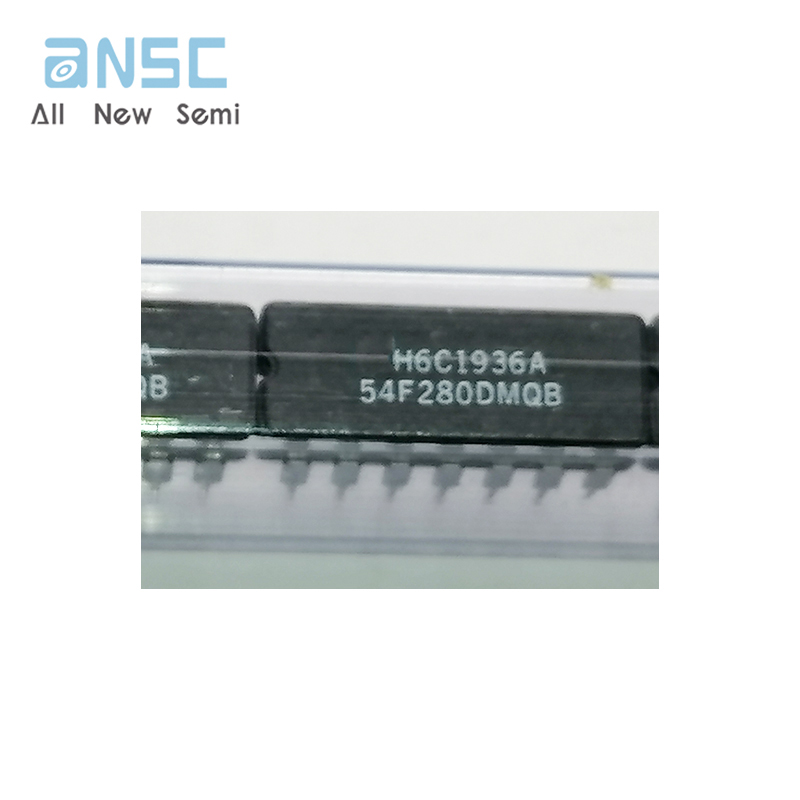

Product Photos

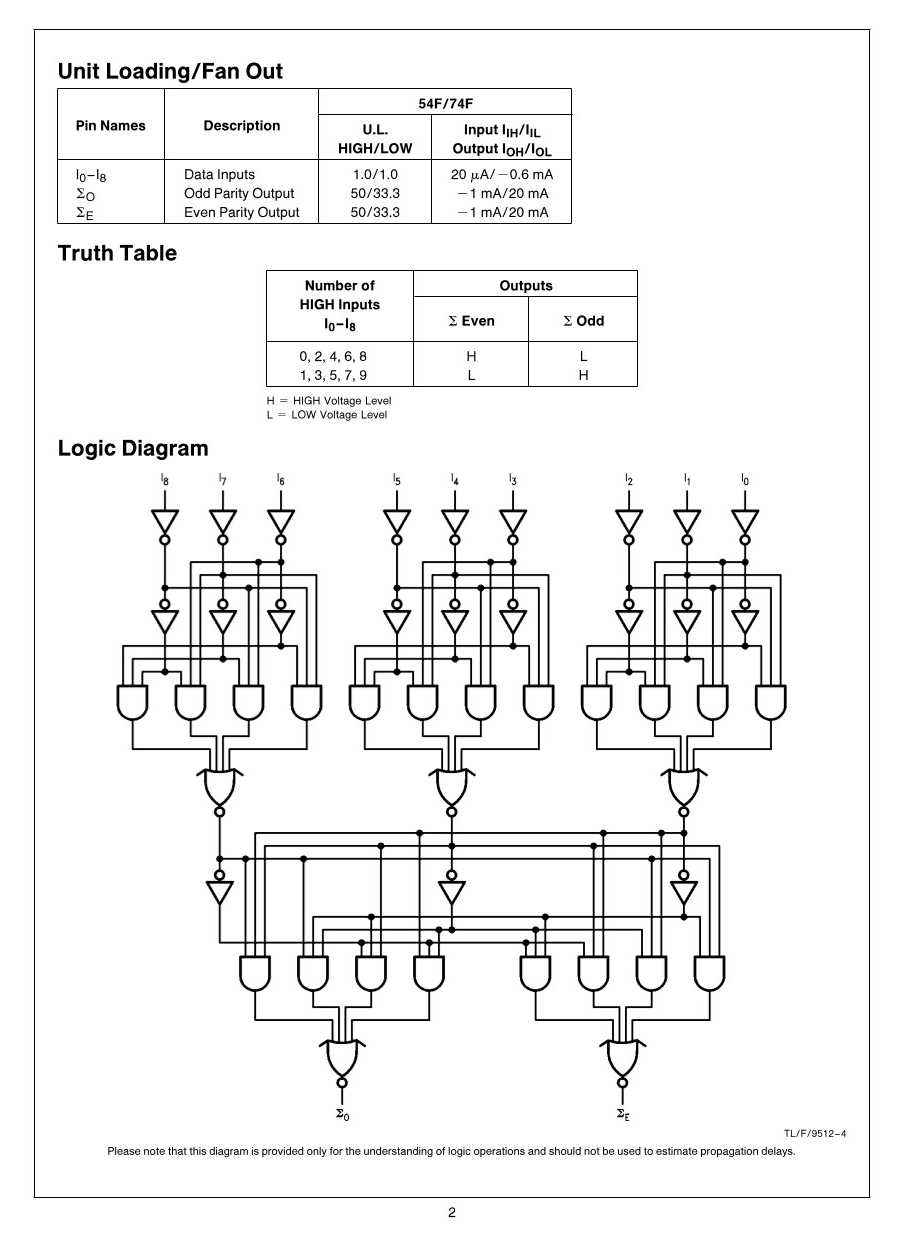

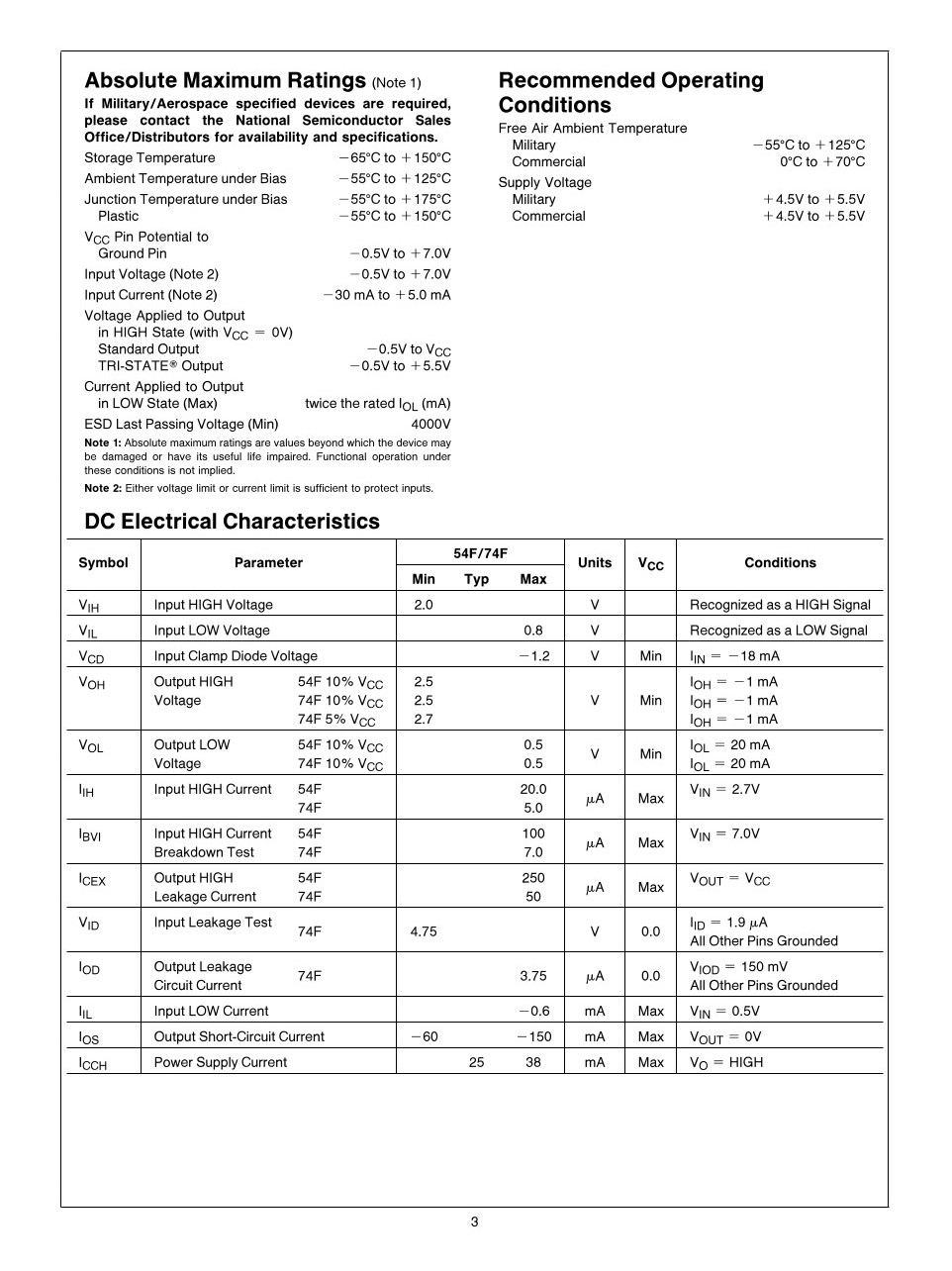

Product datasheet
For more information, please download
