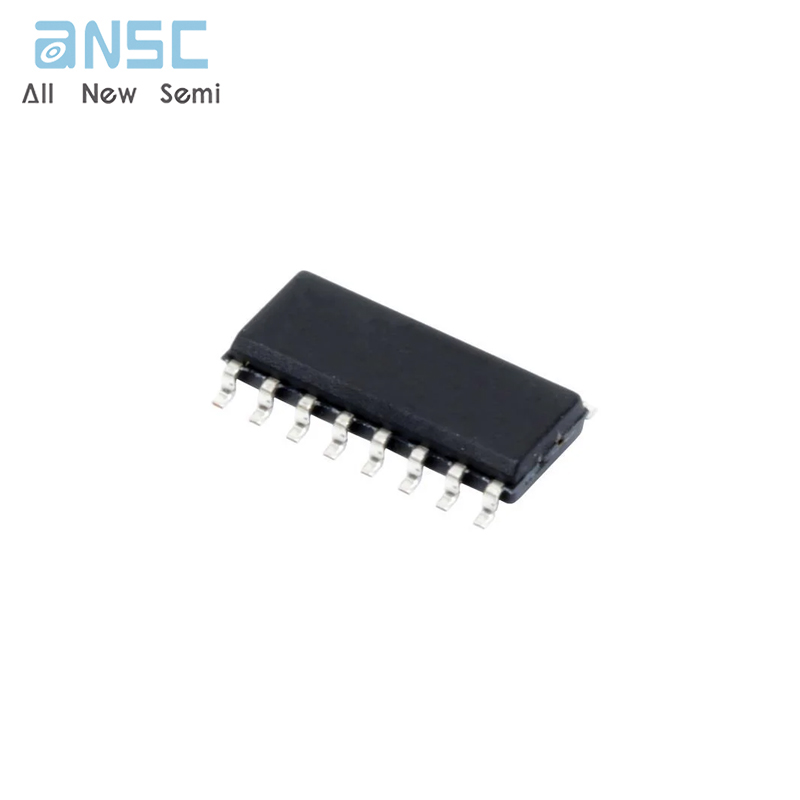

Hot-selling and scarce SN74ALS161BD SYNCHRONOUS 4-BIT DECADE AND BINARY COUNTERS SOP16 spot stock

Product Descriptions

These synchronous, presettable, 4-bit decade and binary counters feature an internal carry look-ahead circuitry for application in high-speed counting designs. The SN54ALS162B is a 4-bit decade counter. The ’ALS161B, ’ALS163B, ’AS161, and ’AS163 devices are 4-bit binary counters. Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincidentally with each other when instructed by the count-enable (ENP, ENT) inputs and internal gating. This mode of operation eliminates the output counting spikes normally associated with asynchronous (ripple-clock) counters. A buffered clock (CLK) input triggers the four flip-flops on the rising (positive-going) edge of the clock input waveform.

These counters are fully programmable; they can be preset to any number between 0 and 9 or 15. Because presetting is synchronous, setting up a low level at the load (LOAD) input disables the counter and causes the outputs to agree with the setup data after the next clock pulse, regardless of the levels of the enable inputs.

The clear function for the ’ALS161B and ’AS161 devices is asynchronous. A low level at the clear (CLR) input sets all four of the flip-flop outputs low, regardless of the levels of the CLK, LOAD, or enable inputs. The clear function for the SN54ALS162B, ’ALS163B, and ’AS163 devices is synchronous, and a low level at CLR sets all four of the flip-flop outputs low after the next clock pulse, regardless of the levels of the enable inputs. This synchronous clear allows the count length to be modified easily by decoding the Q outputs for the maximum count desired. The active-low output of the gate used for decoding is connected to CLR to synchronously clear the counter to 0000 (LLLL).

Product Features

Internal Look-Ahead Circuitry for Fast Counting

Carry Output for n-Bit Cascading

Synchronous Counting

Synchronously ProgrammablePackage Options Include Plastic

Small-Outline (D) and Shrink Small-Outline

(DB) Packages, Ceramic Chip Carriers (FK),

Standard Plastic (N) and Ceramic (J) DIPs

Product Specification

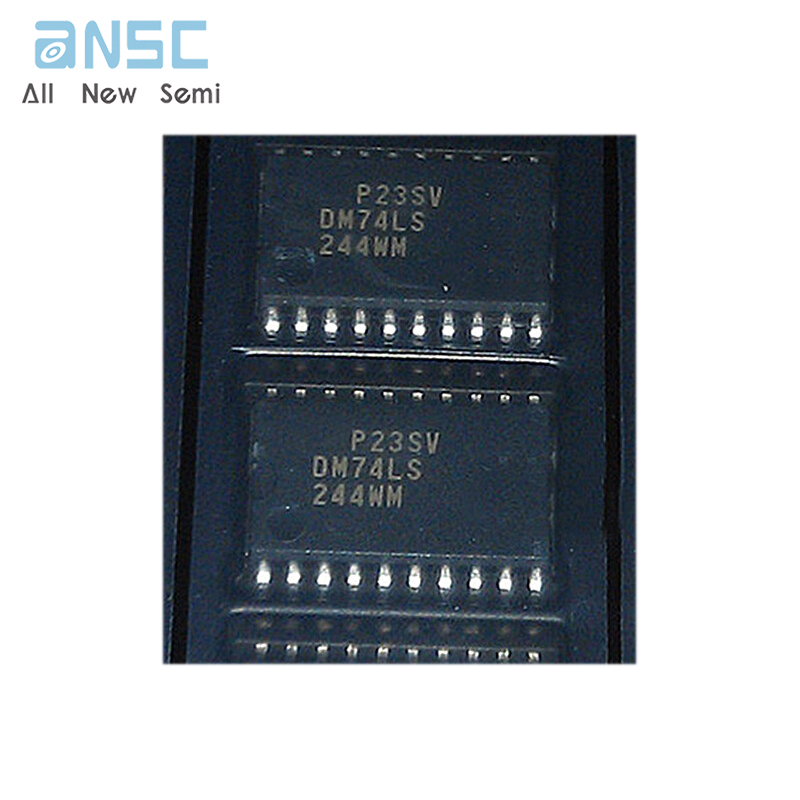

Product Photos

For more product information, please download the PDF
