Hot-selling and scarce NC7SZD384M5X 1-Bit Low Power Bus Switch with Level Shifting SOT23-5 spot stock
Manufacturer Product Number
NC7SZD384M5X
Description
NC7SZD384M5X 1-Bit Low Power Bus Switch with Level Shifting SOT23-5 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NC7SZD384 provides 1-bit of high-speed CMOS TTL-compatible bus switch. The low on resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional ground bounce noise. The device is organized as a 1-bit switch with a bus enable (OE) signal. When OE is LOW, the switch is on and Port A is connected to Port B. When OE is HIGH, the switch is open and a high-impedance state exists between the two ports. Reduced voltage drive to the gate of the FET switch permits nominal level shifting of 5V to 3.3V through the switch.
Product Features
Space saving SOT23 or SC70 5-lead package
Ultra small MicroPak Pb-Free leadless package
5Ω switch connection between two ports
Designed to be used in level-shifting applications
Minimal propagation delay through the switch
Low ICC
Zero bounce in flow-through mode
Control inputs compatible with TTL level
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NC7SZD384M5X |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| Series | 7SZ |
| Packaging | Bulk |
| Part Status | Obsolete |
| Type | Bus Switch |
| Circuit | 1 x 1:1 |
| Independent Circuits | 1 |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | NC7SZD384 |

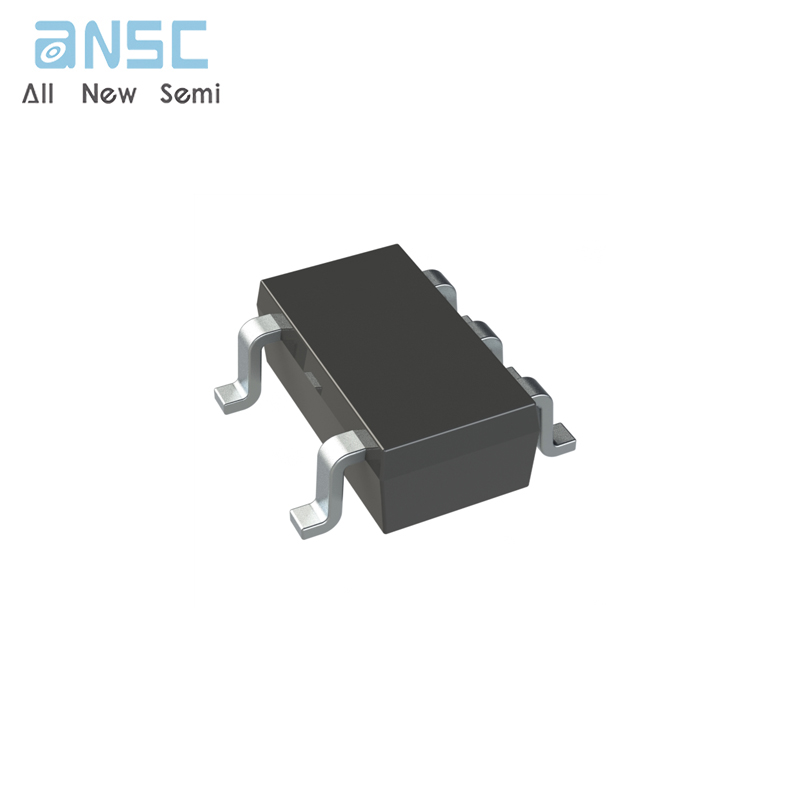

Product Photos
For more product information, please download the PDF
Other Products In The same category:
NC7SZD384M5X 1-Bit Low Power Bus Switch with Level Shifting SOT23-5 spot stock
3000In stock:
Can ship immediately
