Hot-selling and scarce GAL6001-30LNC High Performance E2CMOS FPLA Generic Array Logic DIP24 spot stock

Product Descriptions

Using a high performance E2 CMOS technology, Lattice Semiconductor has produced a next-generation programmable logic device, the GAL6001. Having an FPLA architecture, known for its superior flexibility in state-machine design, the GAL6001 offers a high degree of functional integration and flexibility in a 24- pin, 300-mil package.

The GAL6001 has 10 programmable Output Logic Macrocells (OLMC) and 8 programmable Buried Logic Macrocells (BLMC). In addition, there are 10 Input Logic Macrocells (ILMC) and 10 I/O Logic Macrocells (IOLMC). Two clock inputs are provided for independent control of the input and output macrocells.

Advanced features that simplify programming and reduce test time, coupled with E2 CMOS reprogrammable cells, enable 100% AC, DC, programmability, and functionality testing of each GAL6001 during manufacture. As a result, Lattice Semiconductor delivers 100% field programmability and functionality of all GAL products. In addition, 100 erase/write cycles and data retention in excess of 20 years are specified.

Product Features

• HIGH PERFORMANCE E2 CMOS® TECHNOLOGY

— 30ns Maximum Propagation Delay

— 27MHz Maximum Frequency

— 12ns Maximum Clock to Output Delay

— TTL Compatible 16mA Outputs

— UltraMOS® Advanced CMOS Technology

• LOW POWER CMOS

— 90mA Typical Icc

• E2CELL TECHNOLOGY

— Reconfigurable Logic

— Reprogrammable Cells

— 100% Tested/100% Yields

— High Speed Electrical Erasure (<100ms)

— 20 Year Data Retention

• UNPRECEDENTED FUNCTIONAL DENSITY

— 78 x 64 x 36 FPLA Architecture

— 10 Output Logic Macrocells

— 8 Buried Logic Macrocells

— 20 Input and I/O Logic Macrocells

• HIGH-LEVEL DESIGN FLEXIBILITY

— Asynchronous or Synchronous Clocking

— Separate State Register and Input Clock Pins

— Functional Superset of Existing 24-pin PAL®and FPLA Devices

• APPLICATIONS INCLUDE:

— Sequencers

— State Machine Control

— Multiple PLD Device Integration

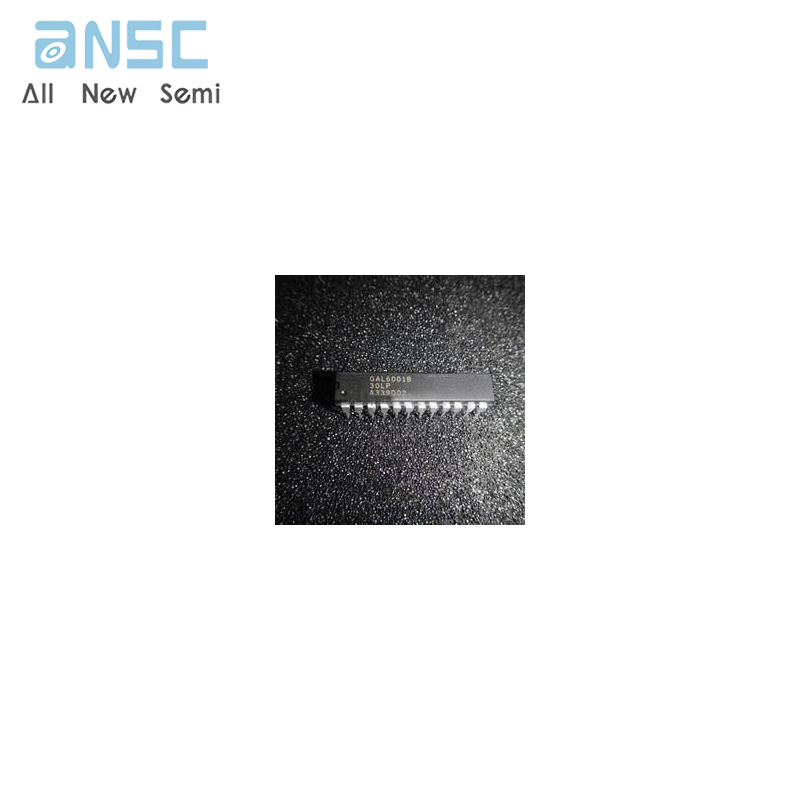

Product Photos

For more product information, please download the PDF
