Hot sale Original MC74HC1G00DFT1G IC GATE NAND 1CH 2-INP SC88A NAND Gate IC 1 Channel SC-88A

Product Overview

Packed in 5-TSSOP, SC-70-5, SOT-353, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the NAND Gate logic principle. To ensure the part's full function, a voltage of 2V~6V is needed. Extended operating temperature around -55°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 2.6mA 2.6mA. It comes from the 74HC series. There are 5 terminations totally. The part has 1 functions that significantly boost the user experience. It represents the HC/UH product family. If you are looking for device variants, try search with 74HC1G00. 5 pins are injected into the part body. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 5 pins functions. The part supports 2 inputs. In the quiescent state, the part has 1μA current flowing through it. It requires a minimal voltage of 2V to supply the device. The supply voltage should not exceed 6V. It is packed with the industry TR method. The device's output current is rated 2.6mA. Totally, there are 1 elements used for operation.

Product Features

NAND Gate Logic Type

Operating Temperature: -55°C~125°C
HC/UH Family
Quiescent Current: 1μA
Output Current: 2.6mA

Product Applications

MC74HC1G00DFT1G Gates and Inverters applications.
Air conditioner
Home theater
Electric grinding wheel
Electrical tools
Sewing machine
DVD
VCD
Computer
Television
Washing machine

Product Description

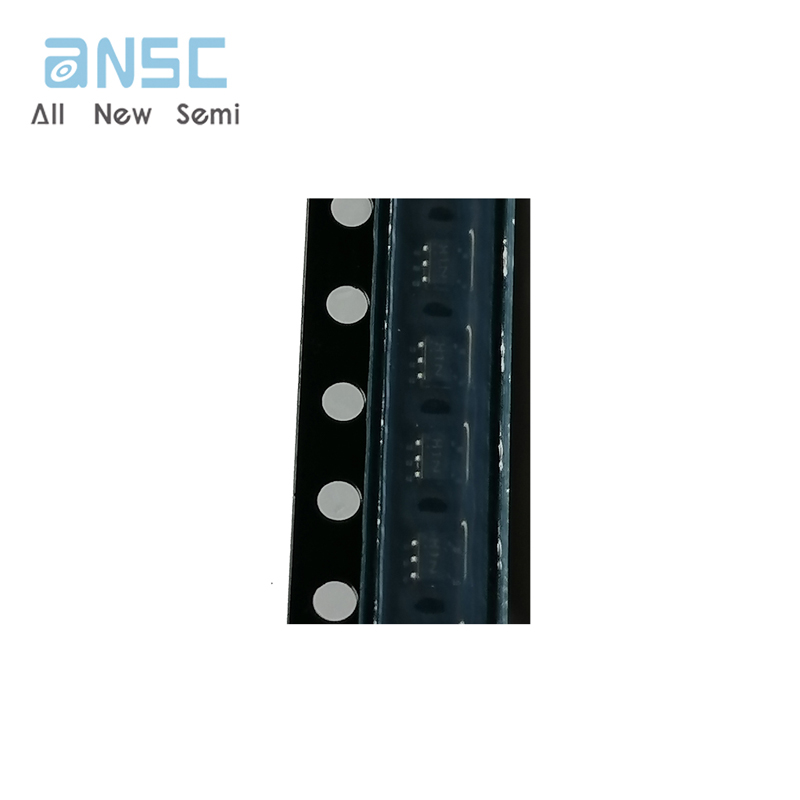

Product Photos

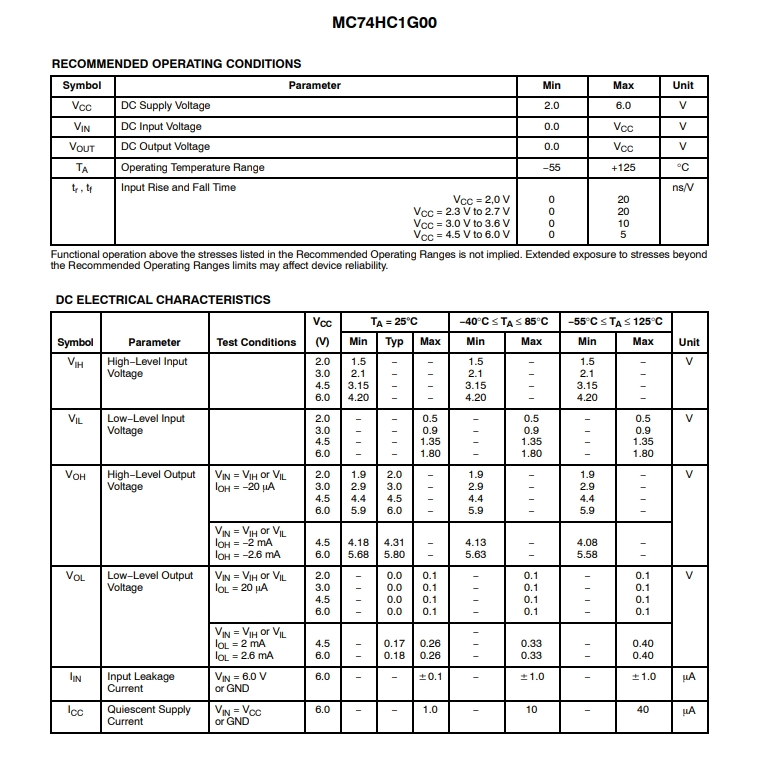

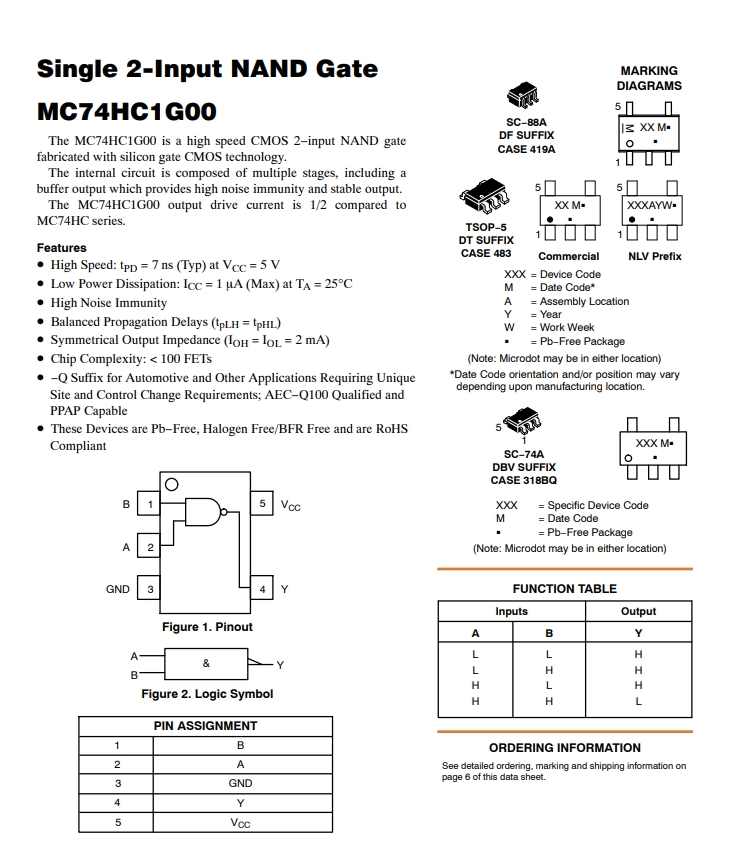

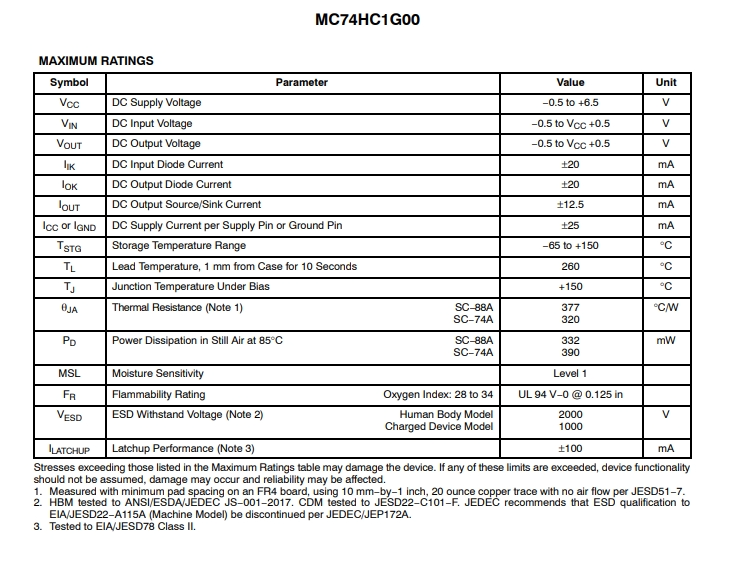

Product datasheet

For more information, please download
