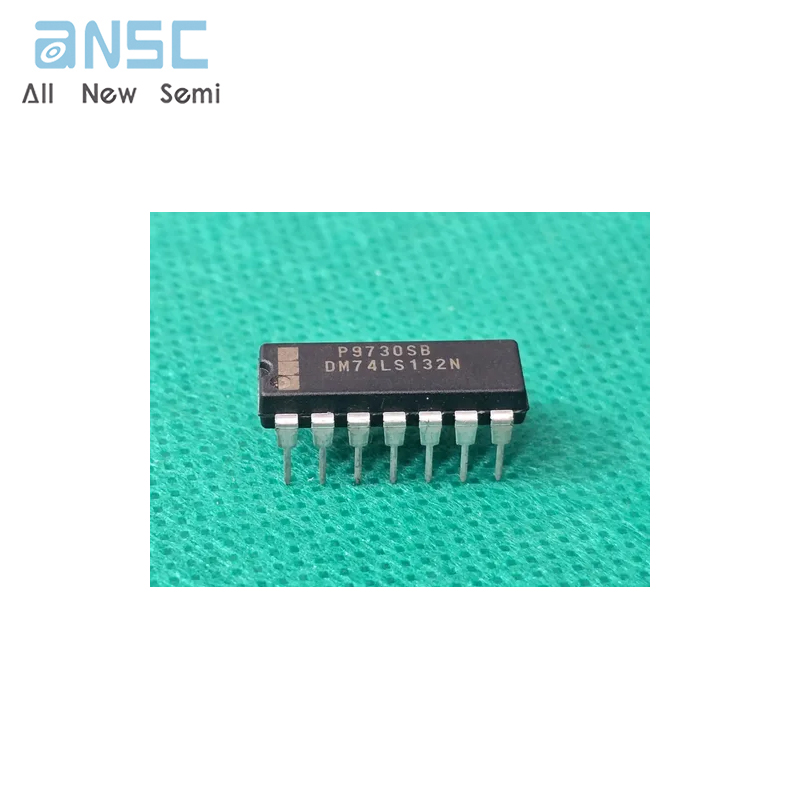

Hot-selling and scarce DM74LS132N Quad 2-Input NAND Gate with Schmitt Trigger Input DIP14 spot stock
Manufacturer Product Number
DM74LS132N
Description
DM74LS132N Quad 2-Input NAND Gate with Schmitt Trigger Input DIP14 spot stock
Package Condition
TUBE
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This device contains four independent gates each of which performs the logic NAND function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DM74LS132N |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74LS |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Output High, Low | 400uA, 8mA |
| Input Logic Level - Low | 0.5V |
| Input Logic Level - High | 1.9V |
| Max Propagation Delay @ V, Max CL | 33ns @ 5V, 50pF |
| Operating Temperature | 0℃ ~ 70℃ |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-MDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74LS132 |
Product Photos
For more product information, please download the PDF
