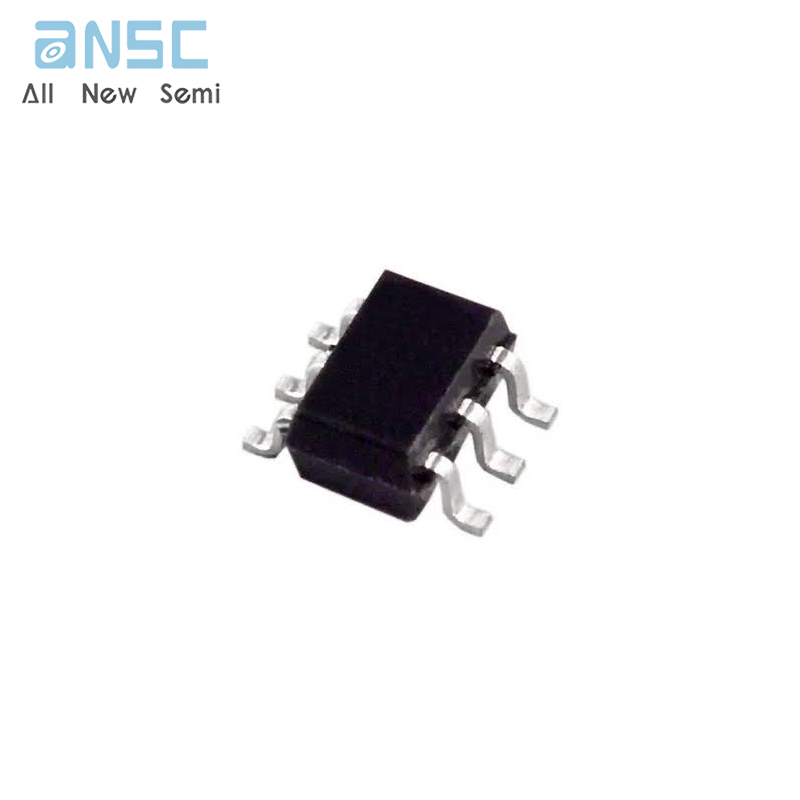

Hot-selling and scarce NC7SZ175P6 TinyLogic UHS D-Type Flip-Flop with Asynchronous Clear SC70-6 spot stock

Product Descriptions

The NC7SZ175 is a single positive edge−triggered D−type CMOS Flip−Flop with Asynchronous Clear from onsemi’s Ultra High Speed Series of TinyLogic in the space saving SC70 6−lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad _V CC operating range. The device is specified to operate over the 1.65 V to 5.5 _V V CC range. The inputs and output are high impedance when _V CC  is 0 V. Inputs tolerate voltages up to 5.5 V independent of _V CC operating voltage. This single flip−flop will store the state of the D input that meets the setup and hold time requirements on the LOW−to−HIGH  Clock (CP) transition.A LOW input to Clear sets the Q output to LOW level.The Clear input is independent of clock.

Product Features

Space Saving SC−88 6−Lead Package

Ultra Small MicroPak Leadless Package

Ultra High Speed:tPD =2.6 ns Typ into 50 pF at 5 V V CC

High Output Drive: 24 mA at 3 V V CC

Broad V CC Operating Range: 1.65 V to 5.5 V

Matches the Performance of LCX when Operated at 3.3 V V CC

Power Down High Impedance Inputs /Output

Overvoltage Tolerant Inputs Facilitate 5 V to 3 V Translation

Proprietary Noise /EMI Reduction Circuitry Implemented

These Devices are Pb−Free,Halogen Free/BFR Free and are RoHS Compliant

Product Specifications

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
