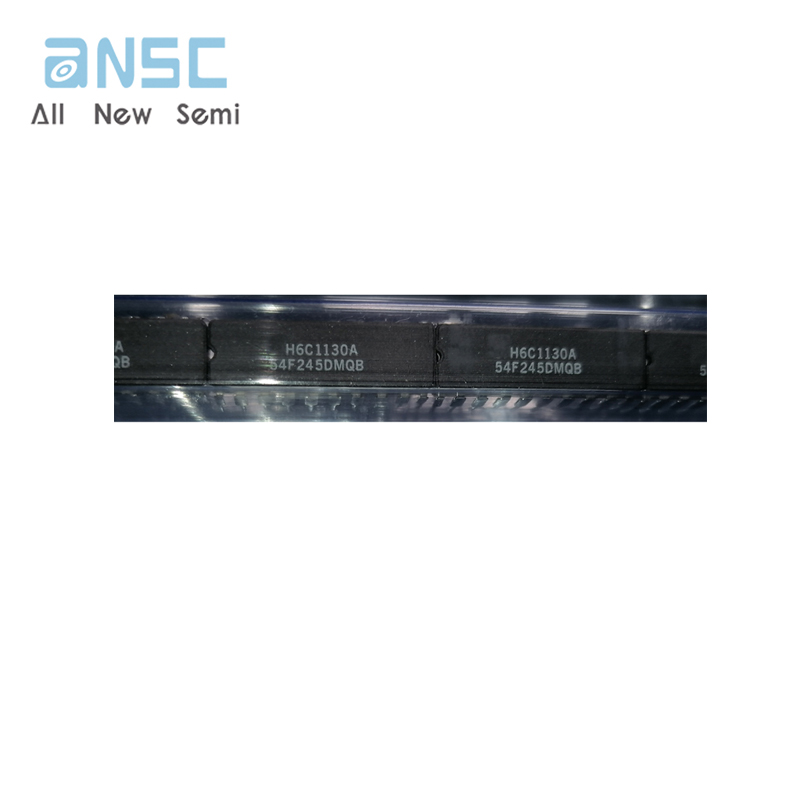

Hot sale original 54F245DMQB IC F/FAST SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, CERAMIC
Manufacturer Product Number
54F245DMQB
Description
54F245DMQB IC F/FAST SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, CERAMIC
Package Condition
tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| OCTAL BIDIRECTIONAL TRANSCEIVER WITH 3-STATE INPUTS/OUTPUTS buffers with 3-stateoutputs and is intended for bus-oriented applications. Currentsinking capabilityis 24 mA at the A ports and 64 mAat the B ports. The Transmit/Re ceive(T/R) input determines the direction ofdata flow through the bidirectional transceiver.Transmit (active HIGH)enables data from A ports to B ports; Receive(active LOW) enables data from B ports to A ports.The Output Enable input, when HIGH, disables both A and B ports by placing them in a high-Z condition. • Noninverting Buffers • Bidirectional Data Path • B Outputs Sink 64 mA • ESD>4000 Volts |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F245DMQB |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | CERAMIC, DIP-20 |
| Pin Count | 20 |
| Additional Feature | WITH DIRECTION CONTROL |
| Family | F/FAST |
| Length | 25.019 mm |
| Logic IC Type | BUS TRANSCEIVER |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Propagation Delay (tpd) | 7.5 ns |
| Screening Level | MIL-STD-883 |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
