Hot-selling and scarce 74LCX245MTCX Low Voltage Bidirectional Transceiver TSSOP20 spot stock
Manufacturer Product Number
74LCX245MTCX
Description
74LCX245MTCX Low Voltage Bidirectional Transceiver TSSOP20 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LCX245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus orientedapplications . The device is designed for low voltage (2 .5Vand 3.3V) V CC applications with capability of interfacing toa 5V signal environment . The T/R input determines thedirection of data flow through the device . The OE input disables both the A and B ports by placing them in a highimpedance state
The LCX245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintainingCMOS low power dissipation .
Product Features
■ 5V tolerant inputs and outputs
■ 2.3V to 3.6V V CC specifications provided
■ 7.0 ns t PD max (V CC 3.3V), 10 PA I CC max
■ Power down high impedance inputs and outputs
■ Supports live insertion/withdrawal (Note 1)
■ r24 mA output drive (V CC 3.0V)
■ Implements patented noise/EMI reduction circuitry
■ Latch-up performance exceeds 500 mA
■ ESD performance:
Human body model !2000V
Machine model !200V
■ Leadless DQFN Pb-Free package
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74LCX245MTCX |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74LCX |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | 74LCX245 |

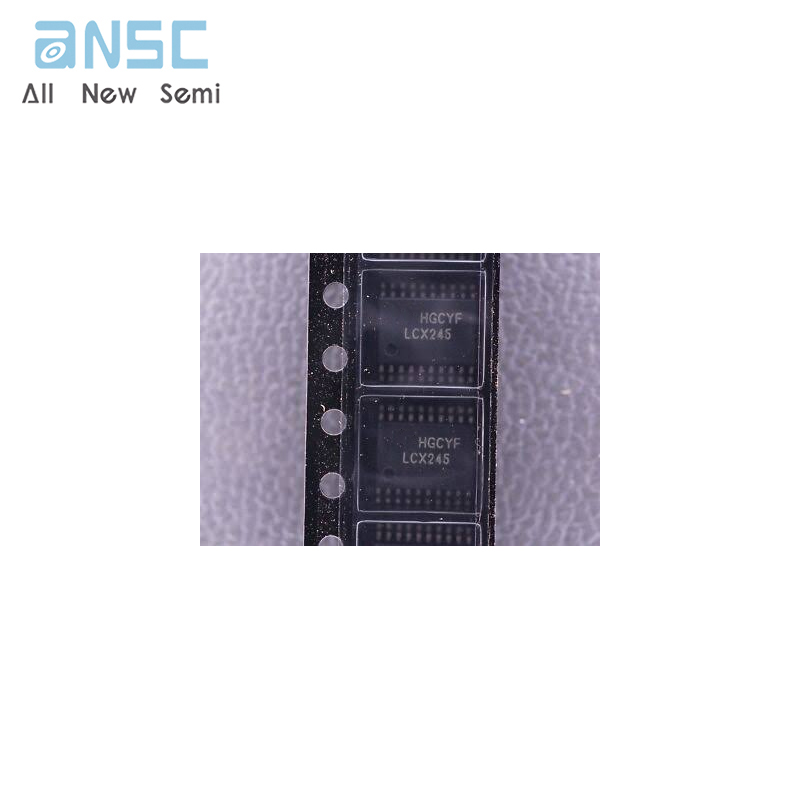

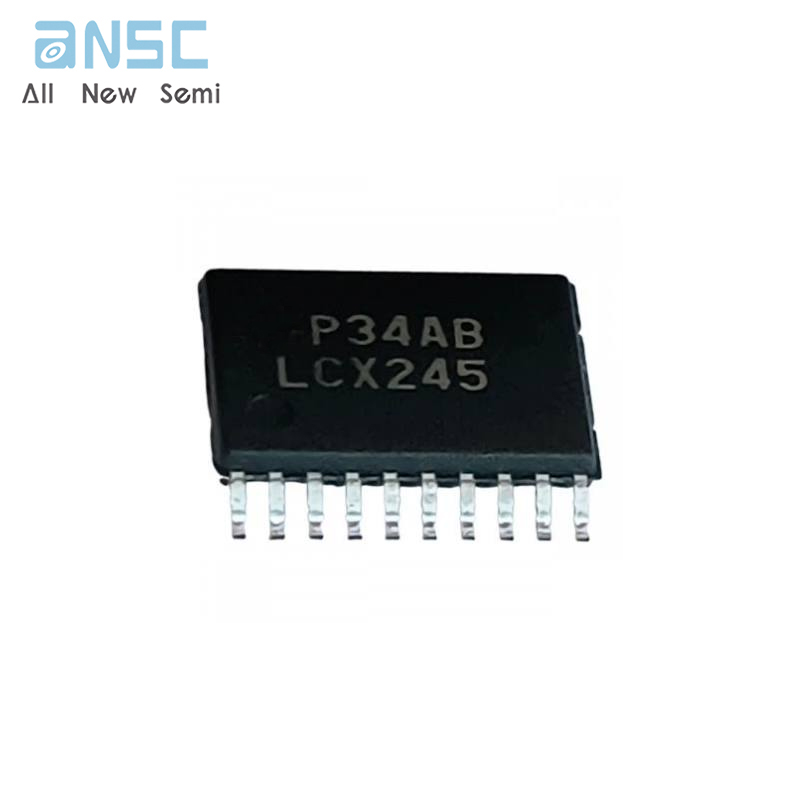

Product Photos
For more product information, please download the PDF
