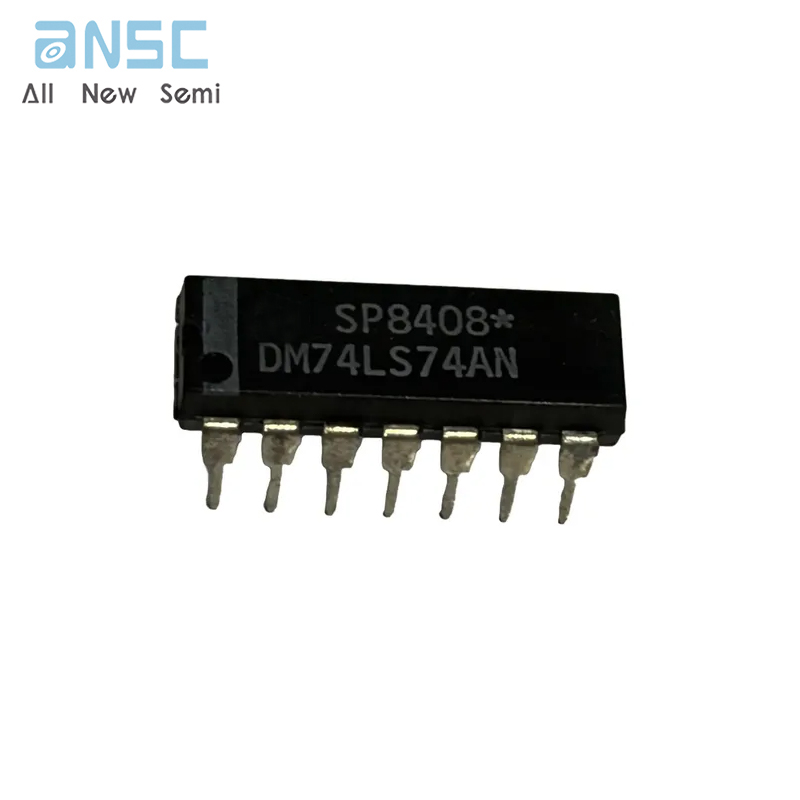

DM74LS74AN Dual Positive-Edge-Triggered D Flip-Flops with Preset Clear and Complementary Outputs DIP14 spot stock
Manufacturer Product Number
DM74LS74AN
Description
DM74LS74AN Dual Positive-Edge-Triggered D Flip-Flops
Package Condition
TUBE
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This device contains two independent positive-edge-triggered D flip-flops with complementary outputs. The information on the D input is accepted by the flip-flops on the positive going edge of the clock pulse. The triggering occurs at a voltage level and is not directly related to the transition time of the rising edge of the clock. The data on the D input may be changed while the clock is LOW or HIGH without affecting the outputs as long as the data setup and hold times are not violated. A low logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DM74LS74AN |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74LS |
| Packaging | Tube |
| Part Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 20 MHz |
| Max Propagation Delay @ V, Max CL | 35ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400uA, 8mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 8 mA |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-MDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74LS74 |
