You can contact me for the best price SN54LS283J 4-BIT BINARY FULL ADDERS WITH FA Binary Full Adder with Fast Carry IC 16-CDIP

Product Descriptions

This device is supplied in the CDIP package. It is configured using 16terminations. Having a supply voltage of 5V enables to operate in a fully flexible manner. In this diagram, there are 1elements that are interconnected by wires. In total, there are 16pins on the component. Circuit components are connected by 16pins. It is mounted using the way of [0].

Initially, it appears to belong to the LS family. There is information in the device in the form of 4bits. An important feature of this electronic device is [0]. Temperature grade MILITARYhas been selected for this device. The packing of the product is carried out by [0].

As a result of the voltage source, there is 5V voltage. In order for it to operate, it requires a supply voltage of 5V . Long-term operation at 125°Cwith acceptable electrical stability is possible. It operates over a specified temperature range with a lower limit generally set to -55°C. The maximum voltage that can be applied to the device is 5.5V. It is possible to operate the device at as low a voltage as 4.5V. It uses the logic IC type [0].

When a high-level voltage is applied to the output, there is -400μA current flowing into it. When a low-level voltage is specified, there is 4mA current flowing into the output terminal.

Product Features

Embedded in the CDIP package
FULL ADDER; WITH INTERNAL CARRY LOOKAHEAD; PERMITS RIPPLE CARRY CASCADING
Operating supply voltage of 5V
ADDER/SUBTRACTOR as logic IC type

Specifications

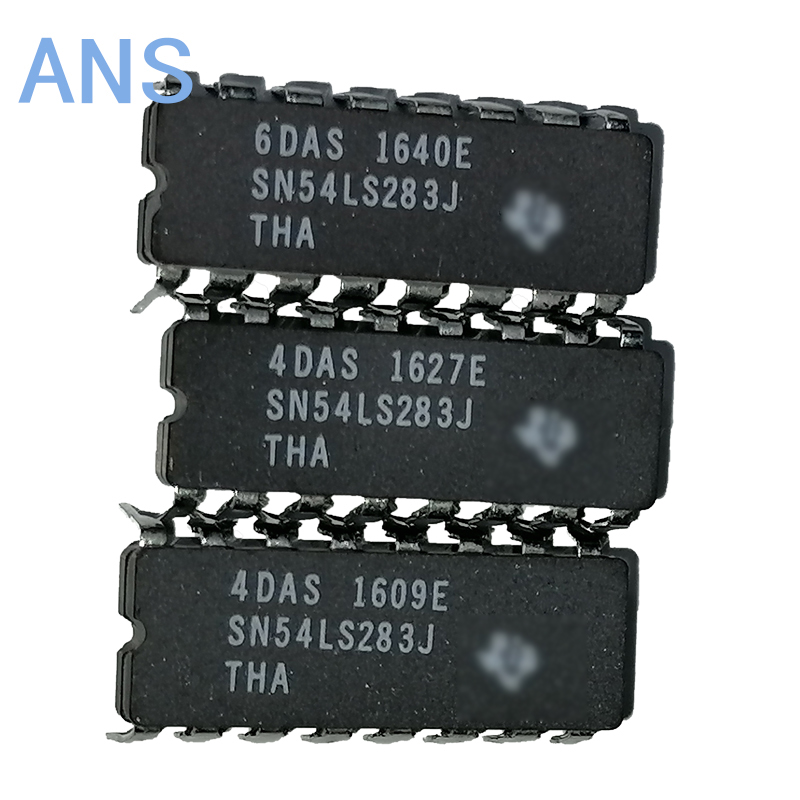

Actual product photos
