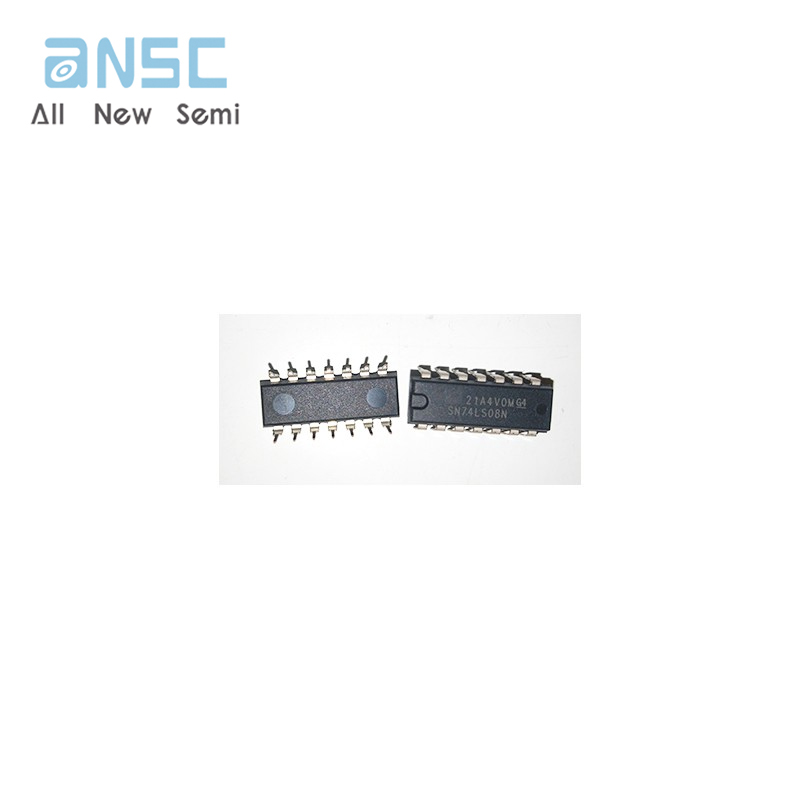

Hot sale Original SN74LS08N IC GATE AND 4CH 2-INP 14DIP AND Gate IC 4 Channel 14-PDIP

Product Description:

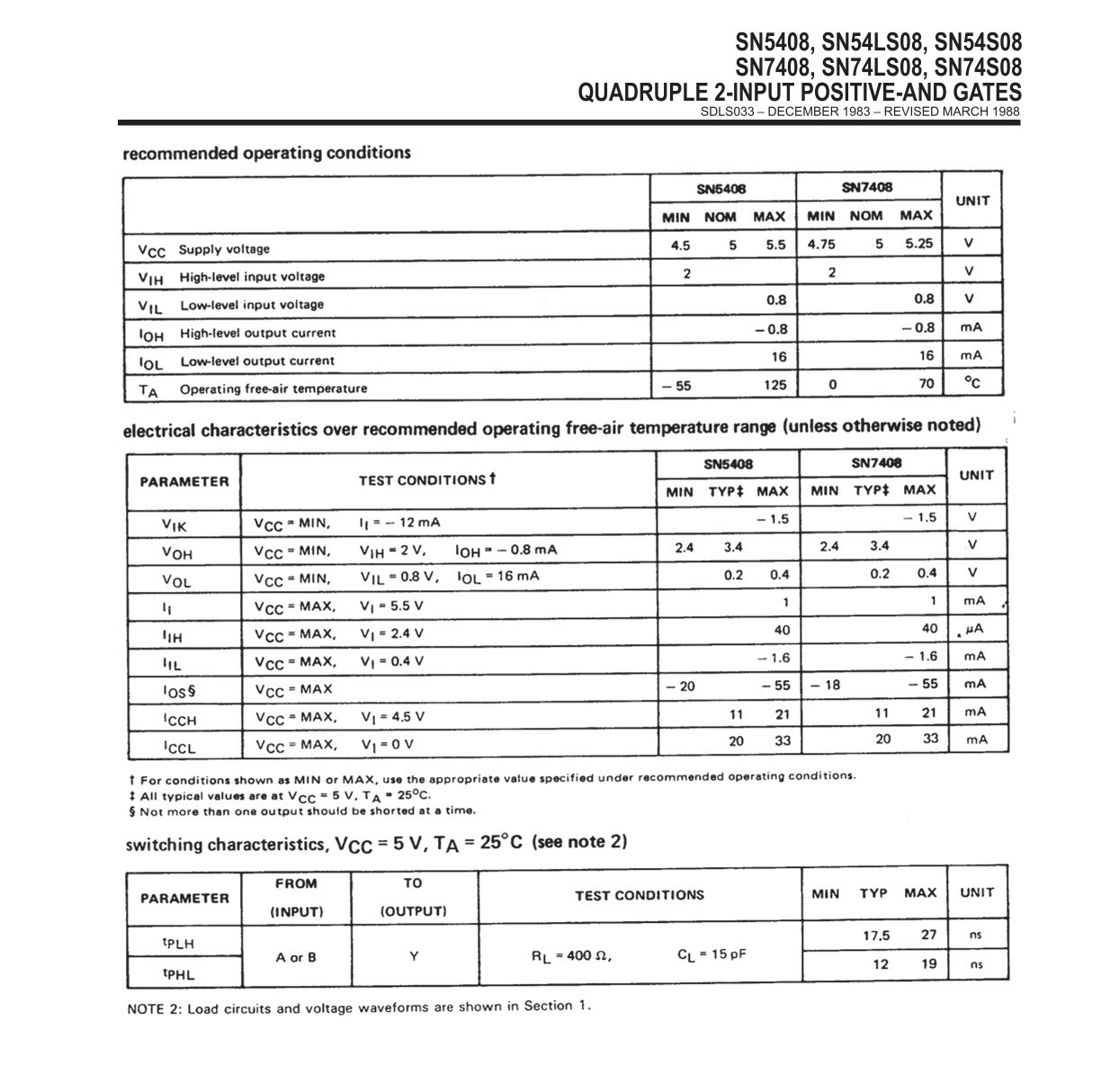

The SN74LS08N is a 14-pin Dual 2-Input AND Gate , part of the 74LS logic family. This integrated circuit is designed to perform logical AND operations on two input signals, producing a single output signal. The device operates at a supply voltage of 5V, with a minimum supply voltage of 4.75V and a maximum supply voltage of 5.25V.

Features:

Logic Function: The SN74LS08N is a 2-input AND gate, capable of performing logical AND operations on two input signals.
Logic Type: The device is a digital logic gate, specifically designed for use in digital circuits.
Number of Channels: The device has four channels, each capable of performing a logical AND operation.
Number of Inputs: The device has two inputs, each capable of receiving a logical signal.
Number of Outputs: The device has one output, which produces the result of the logical AND operation.
Operating Temperature: The device operates within a temperature range of 0°C to 70°C.
Mounting Type: The device is designed for through-hole mounting.
Applications:

Primary Applications: The SN74LS08N is commonly used in digital logic circuits, such as computer systems, telecommunications equipment, and industrial control systems.
Secondary Applications: The device can also be used in other applications where digital logic gates are required, such as in automotive systems, medical devices, and consumer electronics.
