Hot-selling and scarce PCA9517ADP Level translating I2C-bus repeater MSOP8 spot stock

Product Descriptions

The PCA9517A is a CMOS integrated circuit that provides level shifting between low voltage (down to 0 .9 V)and higher voltage (2 .7 V to 5 .5 V) I2 C-bus or SMBus applications. While retaining all the operating modes and features of the I2 C-bus system during the level shifts, it also permits extension of the I2 C-bus by providing bidirectional buffering for both the data (SDA) and the clock (SCL) lines, thus enabling two buses of 400 pF. Using the PCA9517A enables the system designer to isolate two halves of a bus for both voltage

and capacitance. The SDA and SCL pins are overvoltage tolerant and are high-impedance when the PCA9517A is unpowered.

Product Features

■   2 channel, bidirectional buffer isolates capacitance and allows 400 pF on either side of the device

■   Voltage level translation from 0.9 V to 5.5 V and from 2.7 V to 5.5 V

■   Footprint and functional replacement for PCA9515/15A

■   I2 C-bus and SMBus compatible

■   Active HIGH repeater enable input

■   Open-drain input/outputs

■   Lock-up free operation

■   Supports arbitration and clock stretching across the repeater

■   Accommodates Standard-mode and Fast-mode I2 C-bus devices and multiple masters

■   Powered-off high-impedance I2 C-bus pins

■   Port A operating supply voltage range of 0.9 V to 5.5 V

■   Port B operating supply voltage range of 2.7 V to 5.5 V

■   5 V tolerant I2 C-bus and enable pins

■   0 Hz to 400 kHz clock frequency (the maximum system operating frequency may be less than 400 kHz because of the delays added by the repeater)

■   ESD protection exceeds 5500 V HBM per JESD22-A114, 450 V MM per JESD22-A115, and 1000 V CDM per JESD22-C101

■   Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA

■   Packages offered: SO8 and TSSOP8

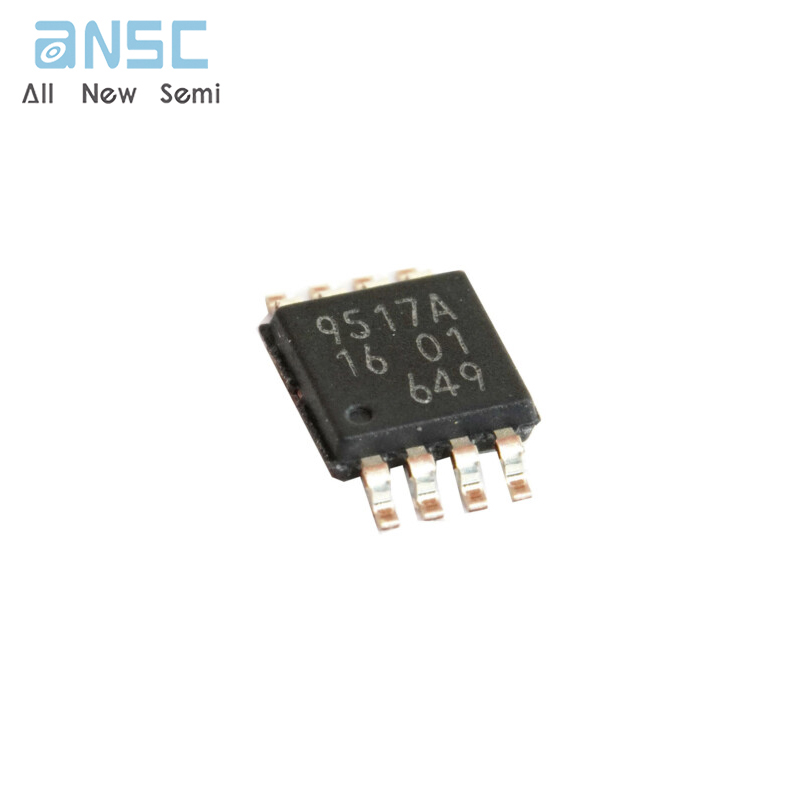

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
