SN74LS373N OCTAL D-TYPE TRANSPARENT LATCHES AND EDGE-TRIGGERED FLIP-FLOPS DIP20 spot stock
SN74LS373N OCTAL D-TYPE TRANSPARENT LATCHES AND EDGE-TRIGGERED
Product Descriptions
These 8-bit registers feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The high-impedance 3-state and increased high-logic-level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pullup components. These devices are particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
The eight latches of the ’LS373 and ’S373 are transparent D-type latches, meaning that while the enable (C or CLK) input is high, the Q outputs follow the data (D) inputs. When C or CLK is taken low, the output is latched at the level of the data that was set up.
The eight flip-flops of the ’LS374 and ’S374 are edge-triggered D-type flip-flops. On the positive transition of the clock, the Q outputs are set to the logic states that were set up at the D inputs.
Schmitt-trigger buffered inputs at the enable/clock lines of the ’S373 and ’S374 devices simplify system design as ac and dc noise rejection is improved by typically 400 mV due to the input hysteresis. A buffered output-control (OC) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly.
OC does not affect the internal operation of the latches or flip-flops. That is, the old data can be retained or new data can be entered, even while the outputs are off.
Product Features
Choice of Eight Latches or Eight D-Type Flip-Flops in a Single Package
3-State Bus-Driving Outputs
Full Parallel Access for Loading
Buffered Control Inputs
Clock-Enable Input Has Hysteresis to Improve Noise Rejection (’S373 and ’S374)
P-N-P Inputs Reduce DC Loading on Data Lines (’S373 and ’S374)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LS373N |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | - |
| Series | 74LS |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | D-Type Transparent Latch |
| Circuit | 8:08 |
| Output Type | Tri-State |
| Voltage - Supply | 4.75V ~ 5.25V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 12ns |
| Current - Output High, Low | 2.6mA, 24mA |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Base Product Number | 74LS373 |

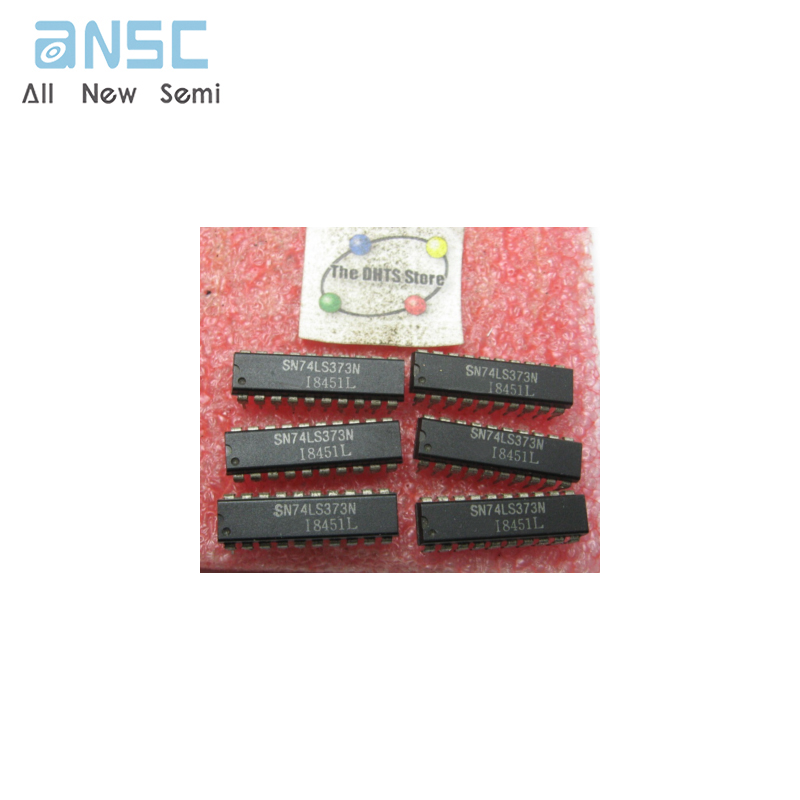

Product Photos

For more product information, please download the PDF
