Hot sale Original SN74LVC4245APWR IC TRANSLATOR BIDIR 24TSSOP Voltage Level Translator Bidirectional Circuit 8 Channel 24-TSSOP

Product Details

SN74LVC4245APWR Description

The SN74LVC4245APWR is a non-inverting Octal Bus Transceiver and 3.3 to 5V Shifter with 3-state outputs. The SN74LVC4245A device is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B-bus or from the B-bus to the A-bus, depending on the logic level at the direction-control (DIR) input. The output-enable input can be used to disable the device so the buses are effectively isolated. The control circuitry is powered by VCCA. The SN74LVC4245A device terminal out allows the designer to switch to a normal all 3.3 or all 5V 20-terminal SN74LVC4245 device without board re-layout. The designer uses the data paths for pins 2-11 and 14-23 of the SN74LVC4245A device to align with the conventional 245 terminal out.

SN74LVC4245APWR Features

Bidirectional voltage translator

Control inputs VIH/VIL levels are referenced to VCCA voltage

Latch-up performance exceeds 250mA per JESD 17

ESD protection exceeds JESD 22

Green product and no Sb/Br

SN74LVC4245APWR Applications

Wireless

Communications & Networking

Imaging, Video & Vision

Sensing & Instrumentation

Medical, Test & Measurement

Product Description

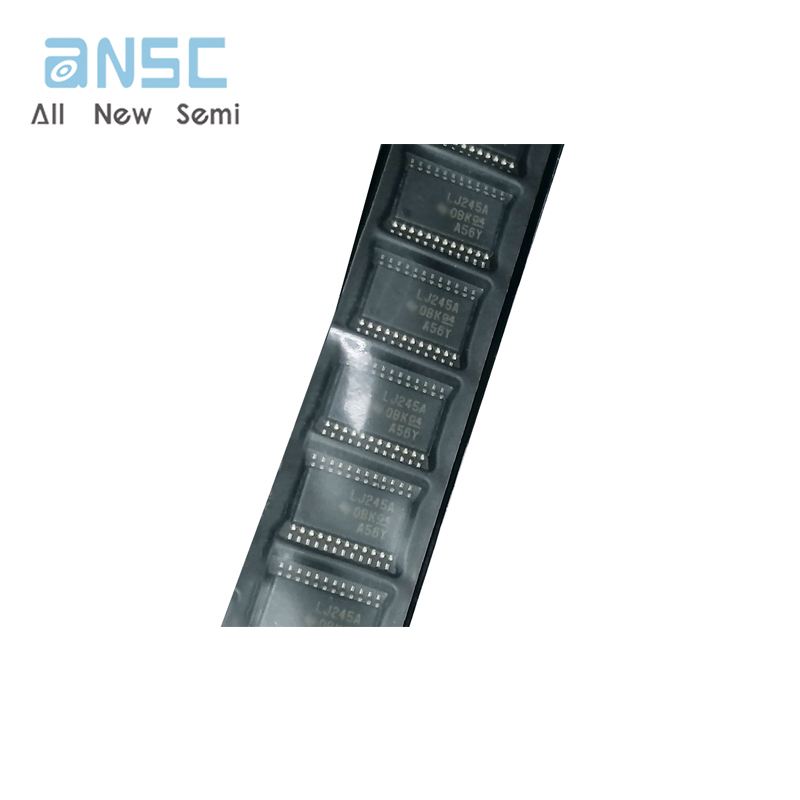

Actual image of the product

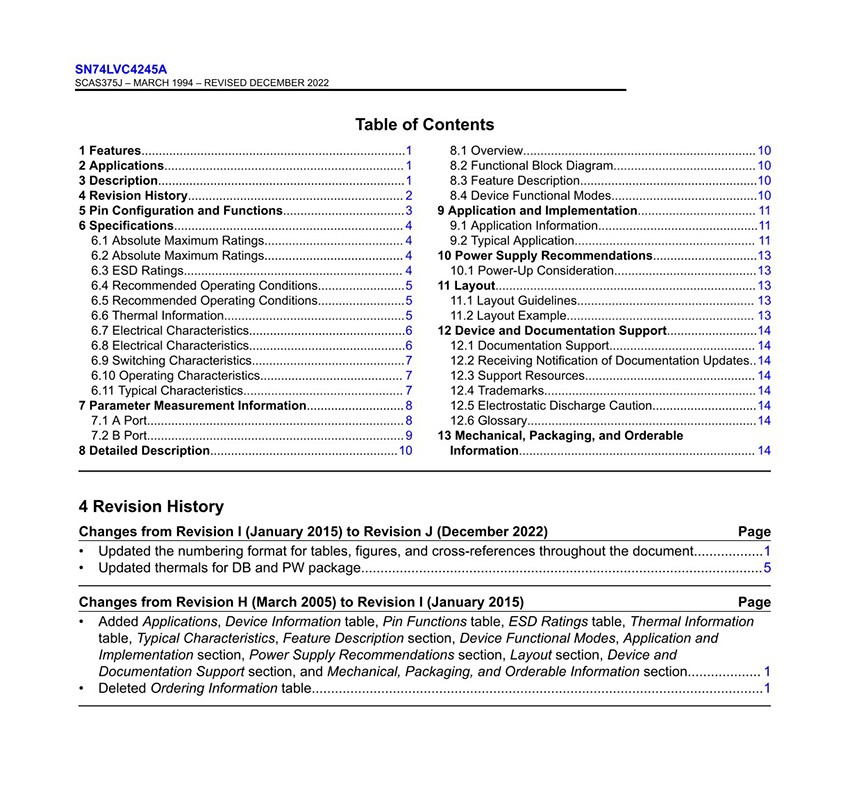

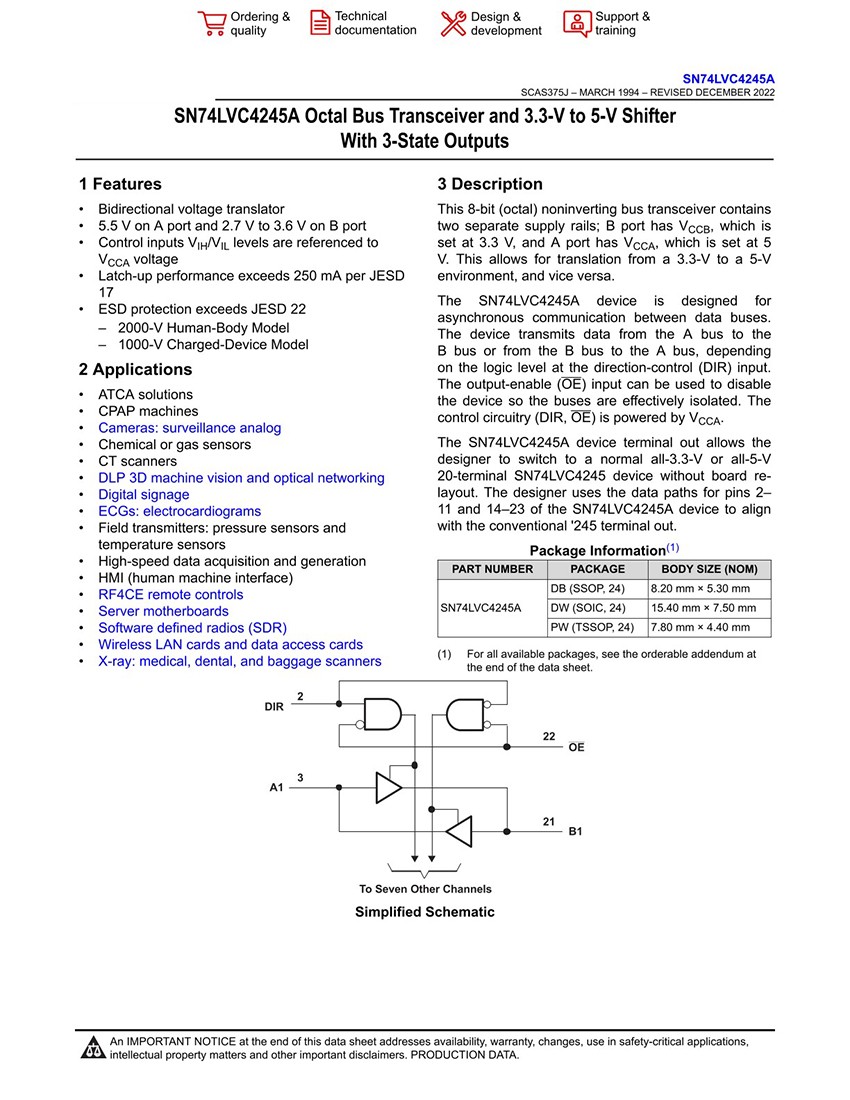

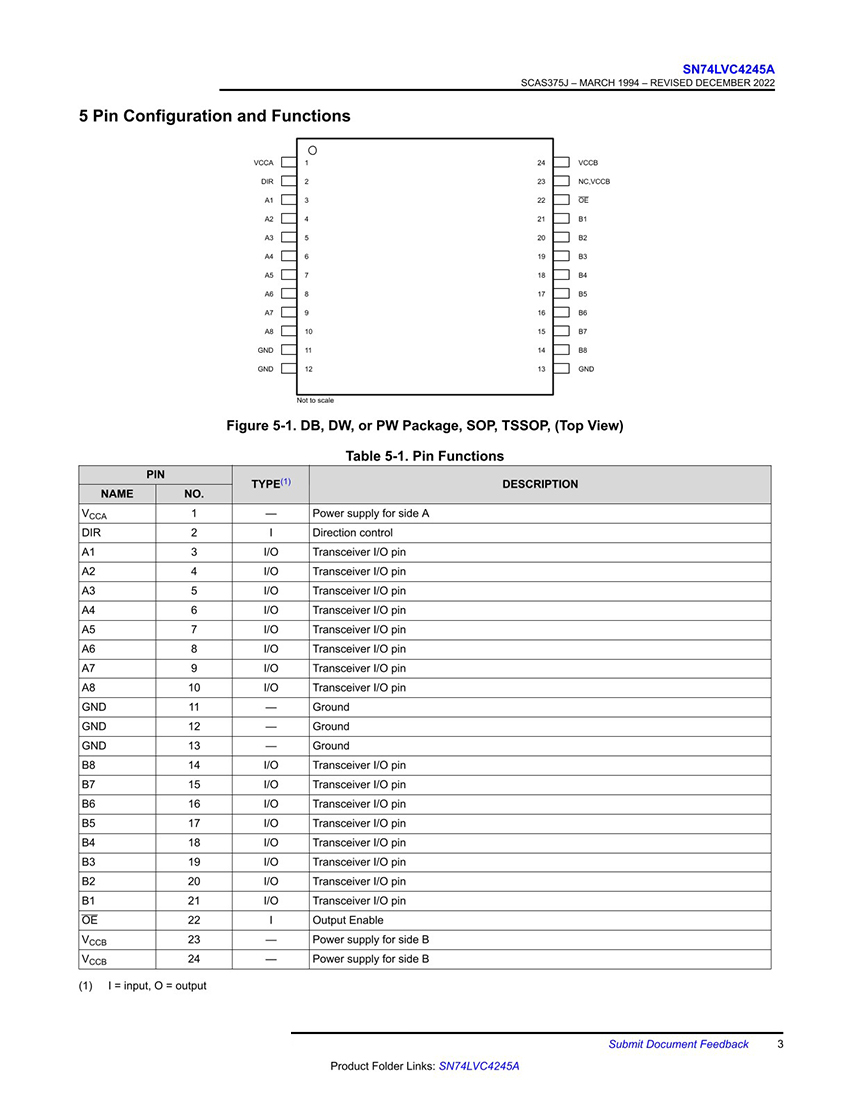

Product datasheet

For more information, please download
