Hot-selling and scarce NC7SZ14M5X UHS Inverter with Schmitt Trigger Input SOT23-5 spot stock
Manufacturer Product Number
NC7SZ14M5X
Description
NC7SZ14M5X UHS Inverter with Schmitt Trigger Input SOT23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NC7SZ14 is a single inverter with Schmitt trigger input from Fairchild's Ultra-High Speed (UHS) series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and outputs are high-impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.
Product Features
Ultra-High Speed: tPD 3.7ns (Typical) into 50pF at 5V VCC
High Output Drive: ±24mA at 3V VCC
Broad VCC Operating Range: 1.65V to 5.5V
Matches Performance of LCX when Operated at 3.3V VCC
Power Down High Impedance Inputs/Outputs
Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
Proprietary Noise/EMI Reduction Circuitry
Ultra-Small MicroPak™ Packages
Space-Saving SOT23 and SC70 Packages
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NC7SZ14M5X |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 7SZ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.2V ~ 1.2V |
| Input Logic Level - High | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 5.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 7SZ14 |

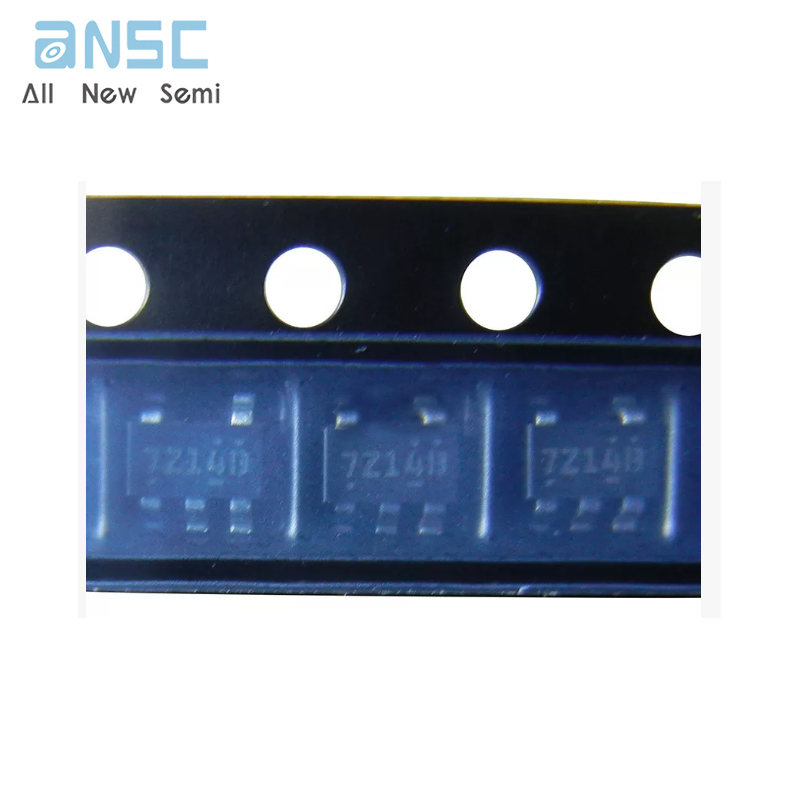

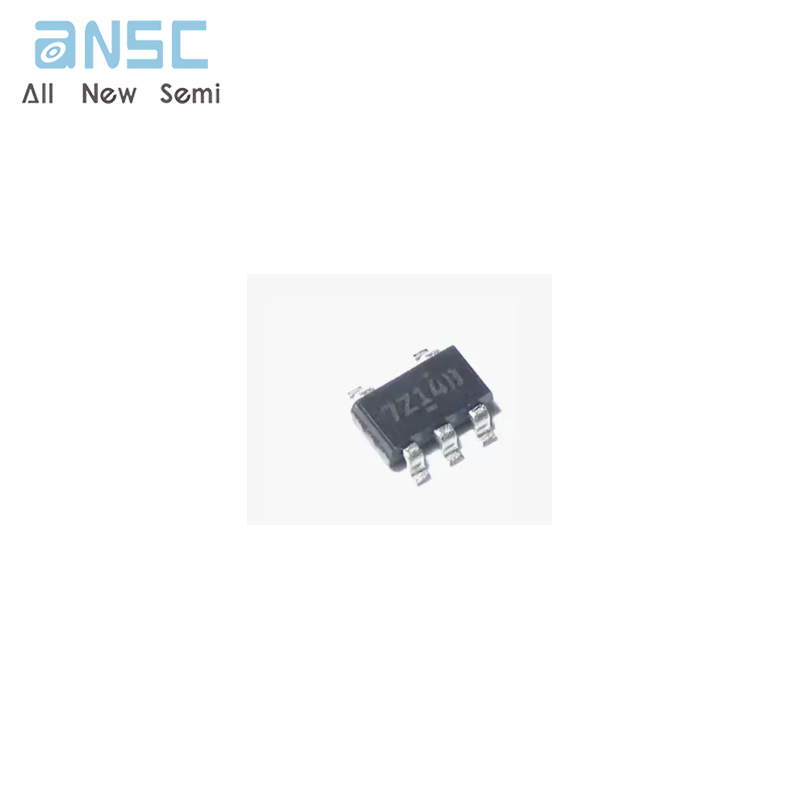

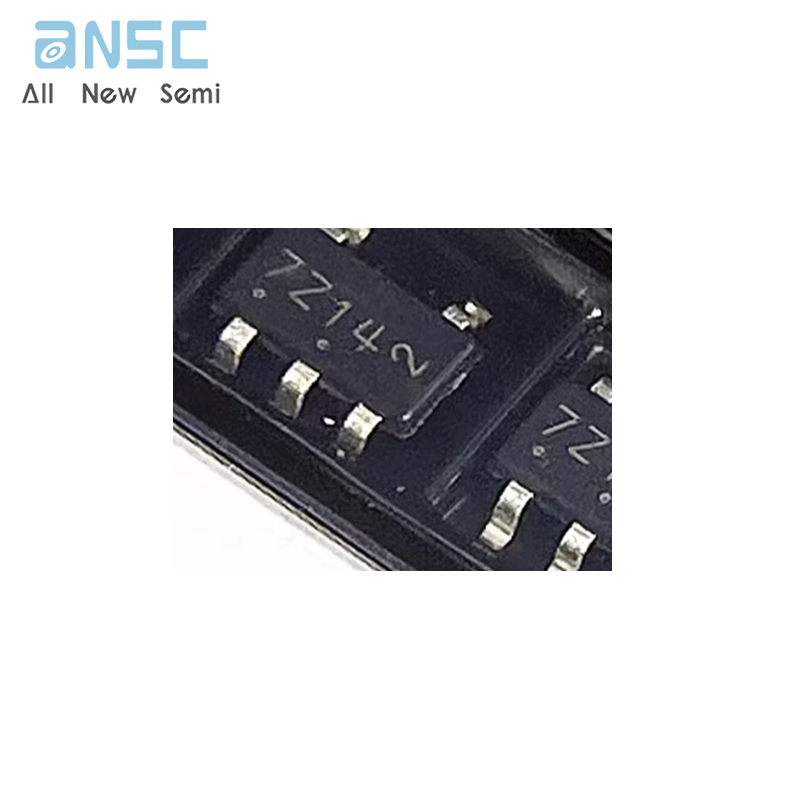

Product Photos
