Hot-selling and scarce SN74AHCT574DWR Octal Transparent D-Type Latches With 3-State Outputs SOP20 spot stock
Manufacturer Product Number
SN74AHCT574DWR
Description
SN74AHCT574DWR Octal Transparent D-Type Latches With 3-State Outputs SOP20 spot stock
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SNx4AHCT574 devices are octal edge-triggered D-type flip-flops that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads.
Product Features
• Inputs are TTL-voltage compatible
• Latch-up performance exceeds 250mA per JESD 17
• On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted.
On all other products, production processing does not necessarily include testing of all parameters.
• ESD protection exceeds JESD 22
– 2000V human-body model (A114-A)
– 1000V charged-device model (C101)
Product Applications
• Smartphone Handsets
• PDAs
• Network Switches
• Wearable Health and Fitness Devices
• Televisions (LCDs)
• Power Infrastructures
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74AHCT574DWR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74AHCT |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 115 MHz |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 uA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40℃~ 125℃(TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOIC |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Base Product Number | 74AHCT574 |

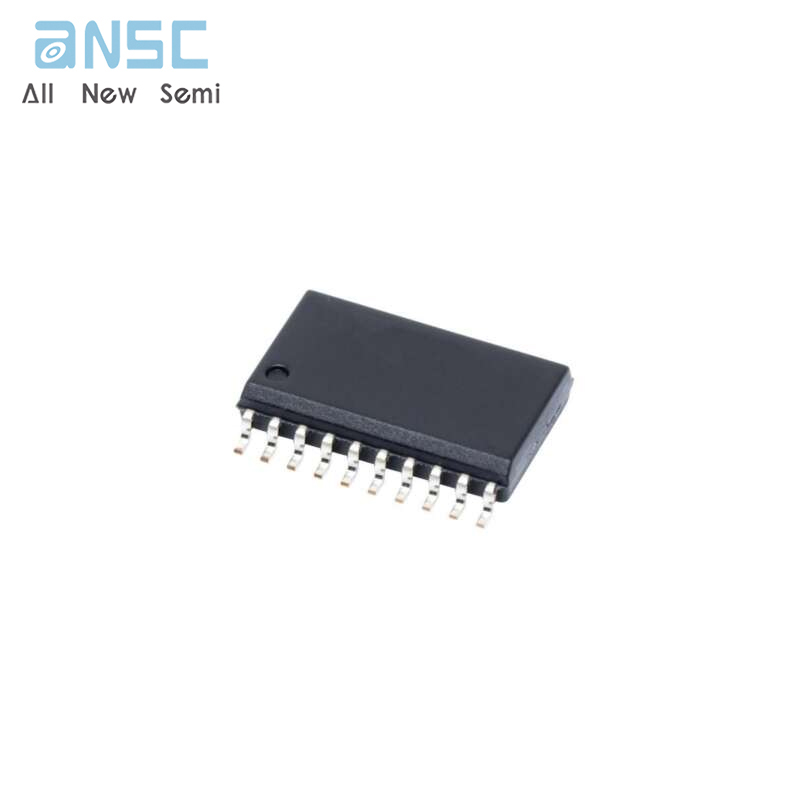

Product Photos
For more product information, please download the PDF
