Spot sales of CD4093BE CMOS Quad 2-Input NAND Schmitt Triggers DIP-14
Manufacturer Product Number
CD4093BE
Description
CD4093BE CMOS Quad 2-Input NAND Schmitt Triggers DIP-14
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4093BE |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 0.9V ~ 4V |
| Input Logic Level - High | 3.6V ~ 10.8V |
| Max Propagation Delay @ V, Max CL | 130ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | CD4093 |

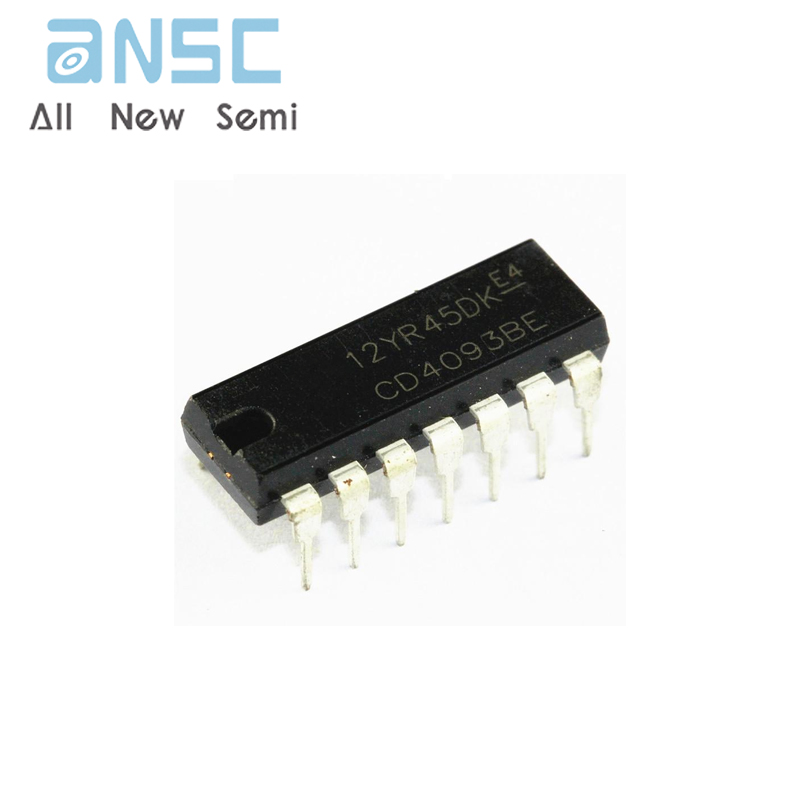

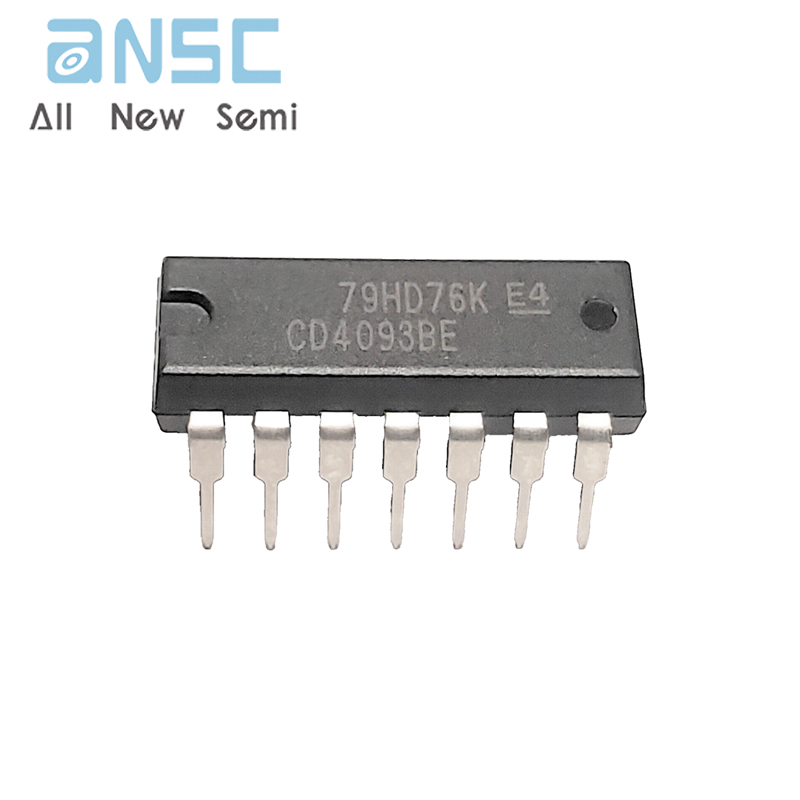

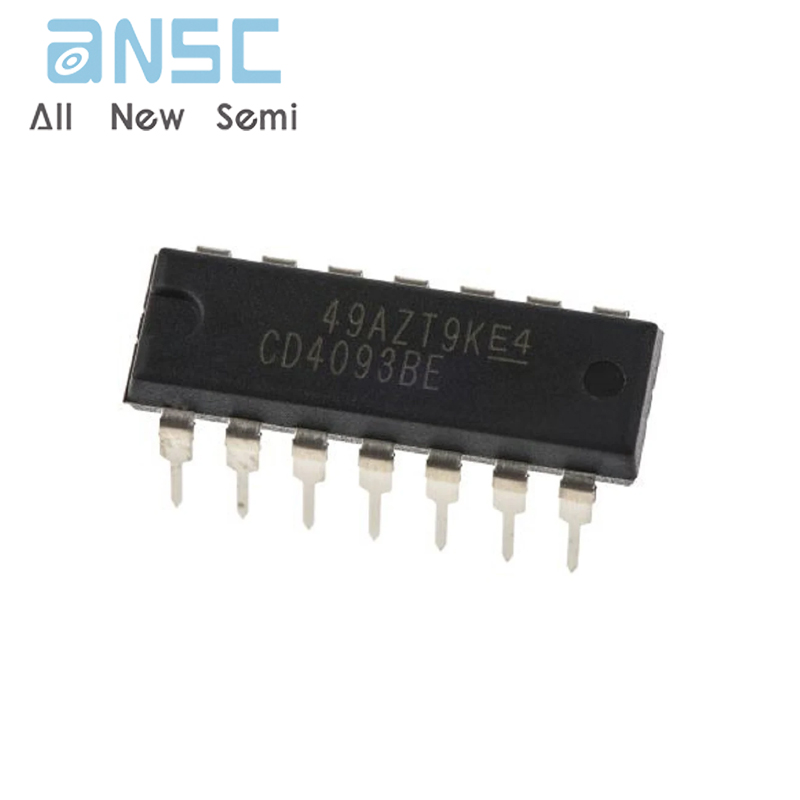

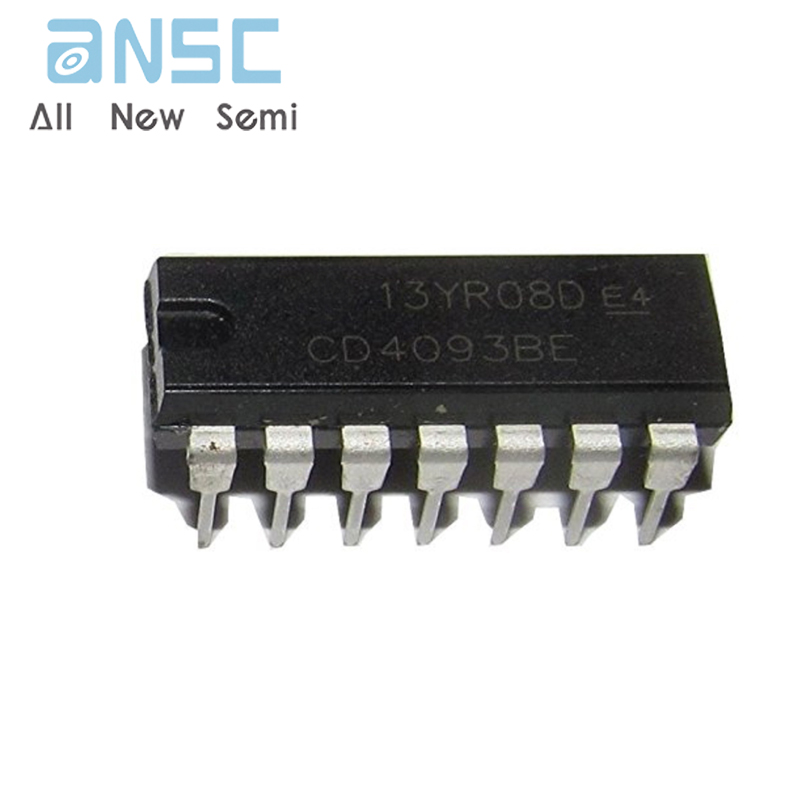

Product Photos
For more product information, please download the PDF
