Hot sale Original ULN2803A IC Darlington NPN Transistor 50V 0.5A 8-Ch DIP
Manufacturer Product Number
ULN2803A
Description
ULN2803A IC Darlington NPN Transistor 50V 0.5A 8-Ch DIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

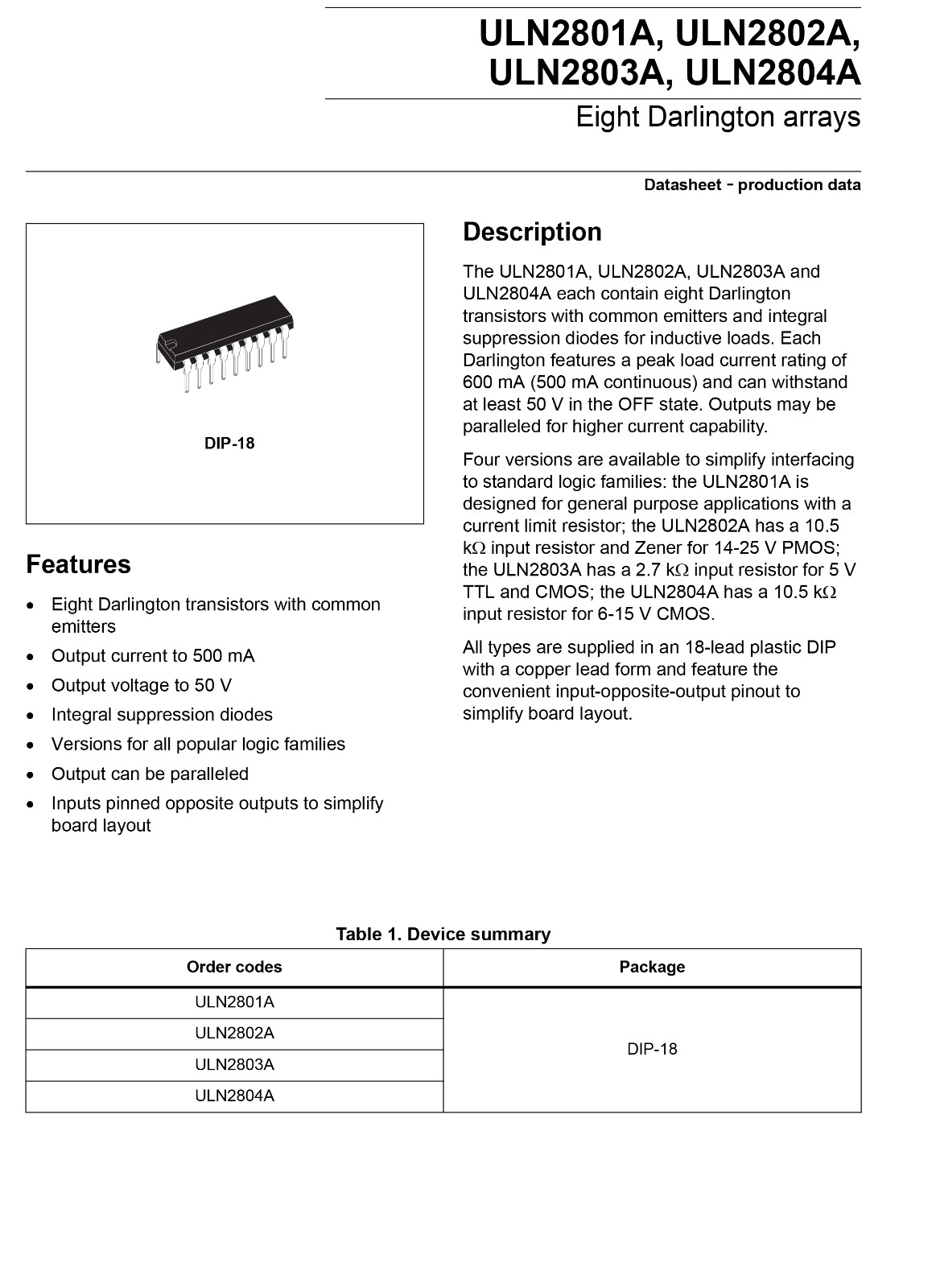

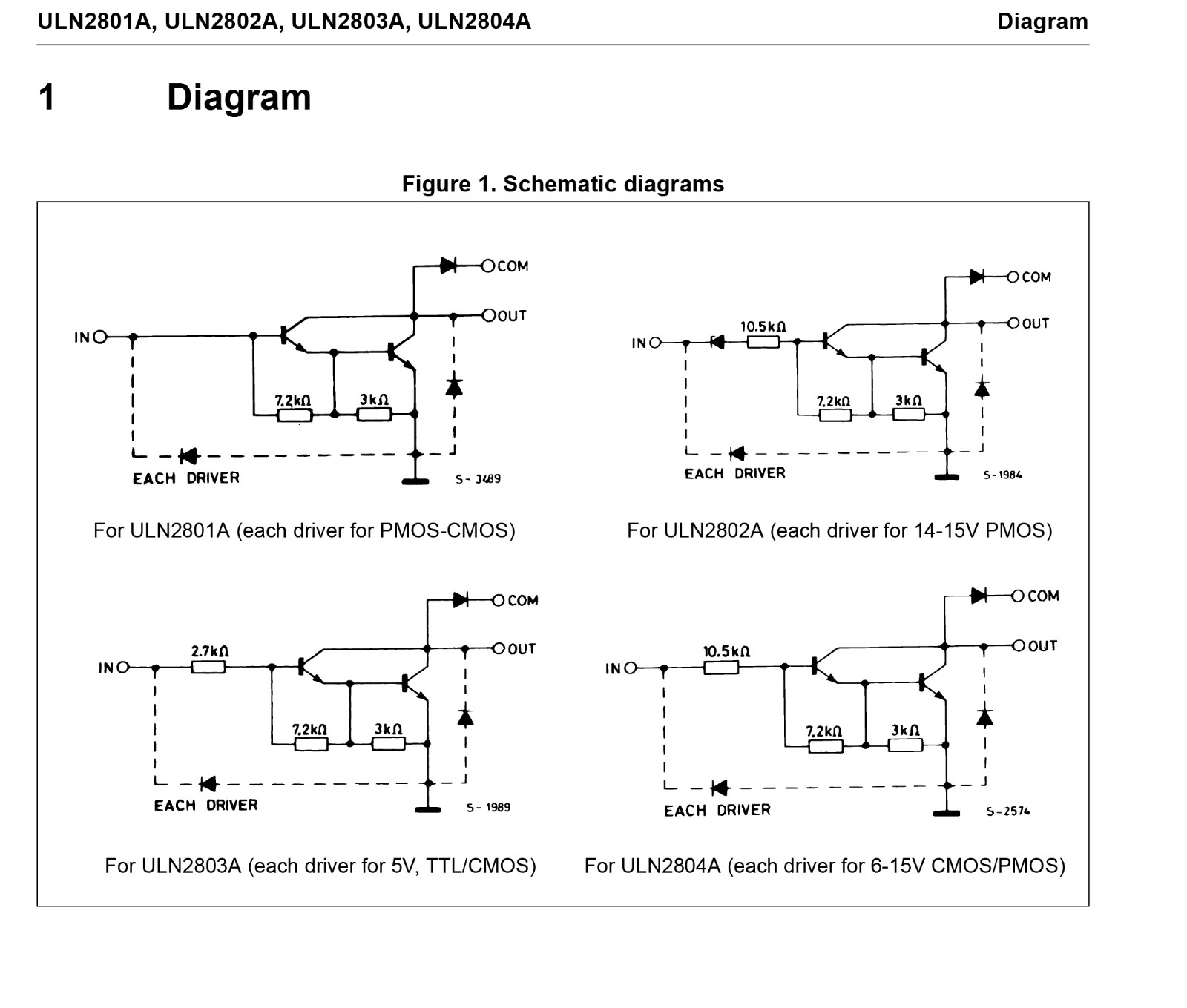

DESCRIPTION The ULN2801A-ULN2805Aeach contain eight darlington transistors with common emitters and inte gral suppression diodes for inductive loads. Each darlington features a peak load current rating of 600mA (500mA continuous) and can withstand at least 50V in the offstate.Outputs may be paralleled for higher current capability.Five versions are available to simplify interfacing to standard logic families : the ULN2801A is designed for general purpose applications with a current limit resistor ; the ULN2802Ahas a 10.5kΩ input resistor and zener for 14-25V PMOS; the ULN2803Ahas a 2.7kΩinput resistor for 5V TTL and CMOS ; the ULN2804A has a 10.5kΩinput resistor for 6-15V CMOS and the ULN2805A is designed to sink a minimum of 350mA for standard and Schottky TTL where higher output current is required. All types are supplied in a 18-lead plastic DIP with a copper lead fromand featurethe convenient input ■ EIGHT DARLINGTONS WITH COMMON EMITTERS ■ OUTPUT CURRENT TO 500 mA ■ OUTPUT VOLTAGE TO 50 V ■ NTEGRAL SUPPRESSION DIODES ■ VERSIONS FOR ALL POPULAR LOGIC FAMILIES ■ OUTPUT CAN BE PARALLELED ■ NPUTS PINNED OPPOSITE OUTPUTS TO SIMPLIFY BOARD LAYOUT |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - ULN2803A |
| Part Package Code | DIP |
| Package Description | Dip, Dip18,.3 |
| Pin Count | 18 |
| Factory Lead Time | 10 Weeks |
| Built-in Protections | Transient |
| Driver Number of Bits | 8 |
| Interface IC Type | Buffer Or Inverter Based Peripheral Driver |
| JESD-30 Code | R-PDIP-T18 |
| Length | 23.24 Mm |
| Number of Functions | 8 |
| Number of Terminals | 18 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -20 °C |
| Output Current Flow Direction | Sink |
| Package Body Material | Plastic/Epoxy |
| Package Code | DIP |
| Package Equivalence Code | DIP18,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Seated Height-Max | 3.93 Mm |
| Supply Current-Max | 1.35 Ma |
| Surface Mount | No |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Turn-off Time | 1 µS |
| Turn-on Time | 1 µS |
| Width | 7.62 Mm |

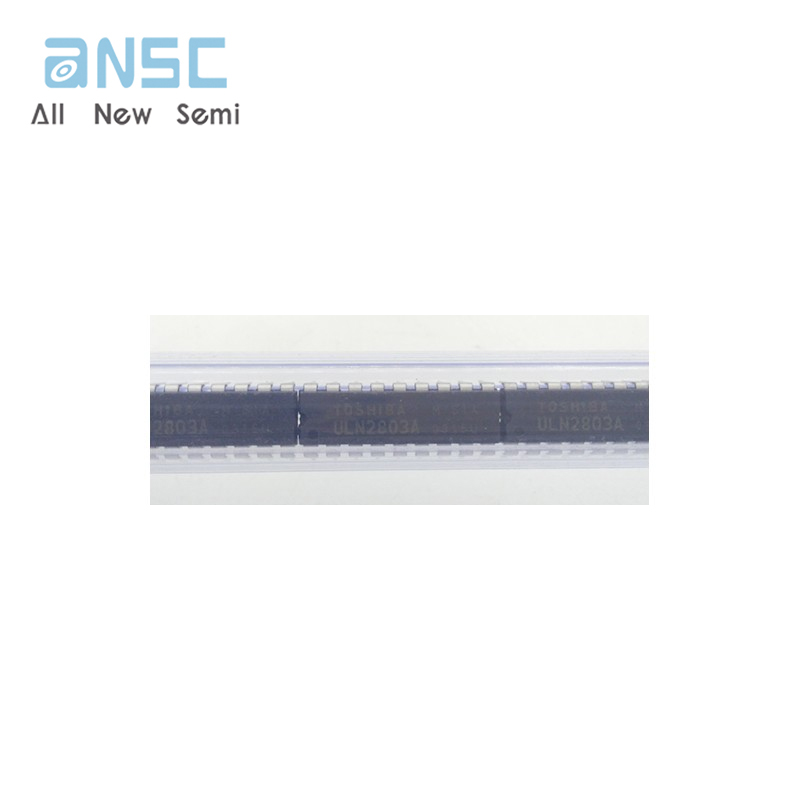

Actual image of the product
Product datasheet
For more information, please download
