Hot sale Original CD40174BE IC FF D-TYPE SINGLE 6BIT 16PDIP Flip Flop 1 Element D-Type 6 Bit Positive Edge 16-DIP
Manufacturer Product Number
CD40174BE
Description
CD40174BE IC FF D-TYPE SINGLE 6BIT 16PDIP Flip Flop 1 Element D-Type 6 Bit Positive Edge 16-DIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description The CD40174BC consists of six positive-edge triggered D type flip-flops; the true outputs from each flip-flop are externally available. The CD40175BC consists of four positive edge triggered D-type flip-flops; both the true and comple ment outputs from each flip-flop are externally available. All flip-flops are controlled by a common clock and a common clear. Information at the D inputs meeting the set-up time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse. The clearing operation, enabled by a negative pulse at Clear input, clears all Q outputs to logical “0” and Qs (CD40175BC only) to logical “1”. All inputs are protected from static discharge by diode clamps to VDDand VSS. Features ■ Wide supply voltage range: 3V to 15V ■ High noise immunity: 0.45 VDD(typ.) ■ Low power TTL compatibility: fan out of 2 driving 74L or 1 driving 74 LS ■ Equivalent to MC14174B, MC14175B ■ Equivalent to MM74C174, MM74C175 |
Product Description
| Type# | DESCRIPTION |
| ANSC PART# | ANSC- CD40174BE |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | Original |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 6 |
| Clock Frequency | 16 MHz |
| Max Propagation Delay @ V, Max CL | 100ns @ 15V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Base Product Number | CD40174 |

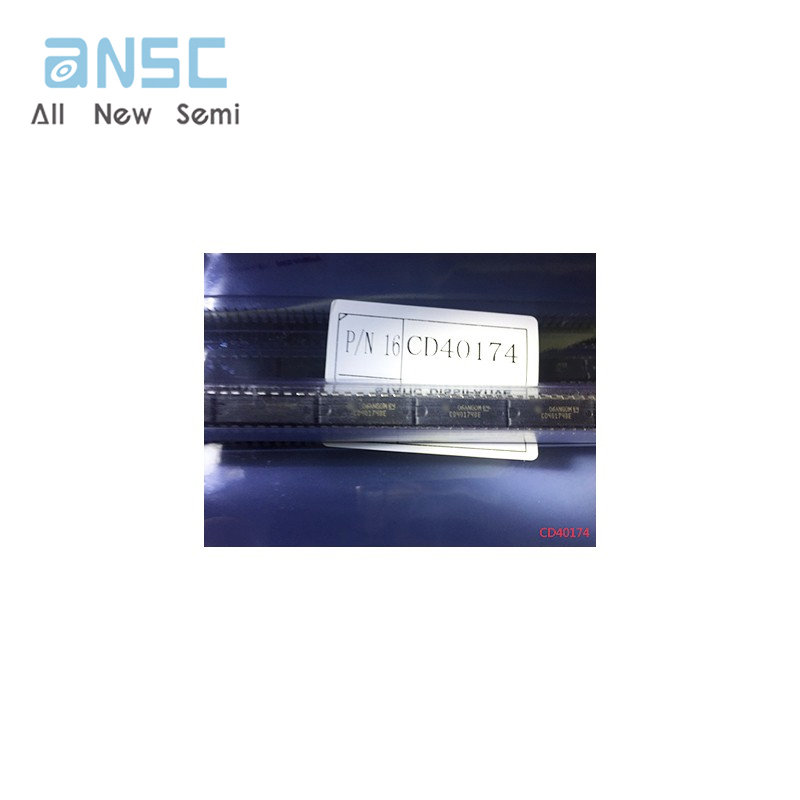

Product Photos

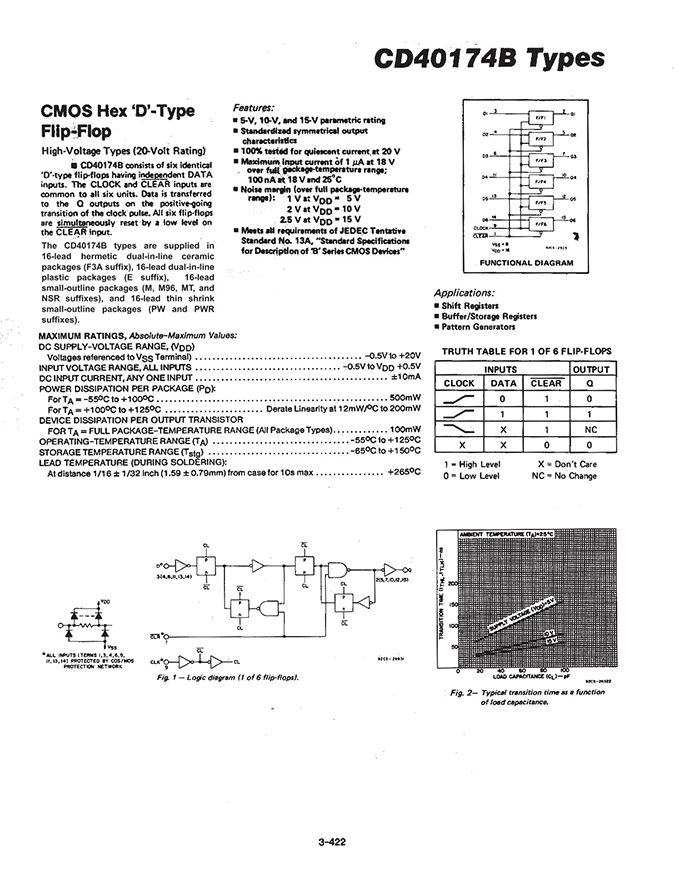

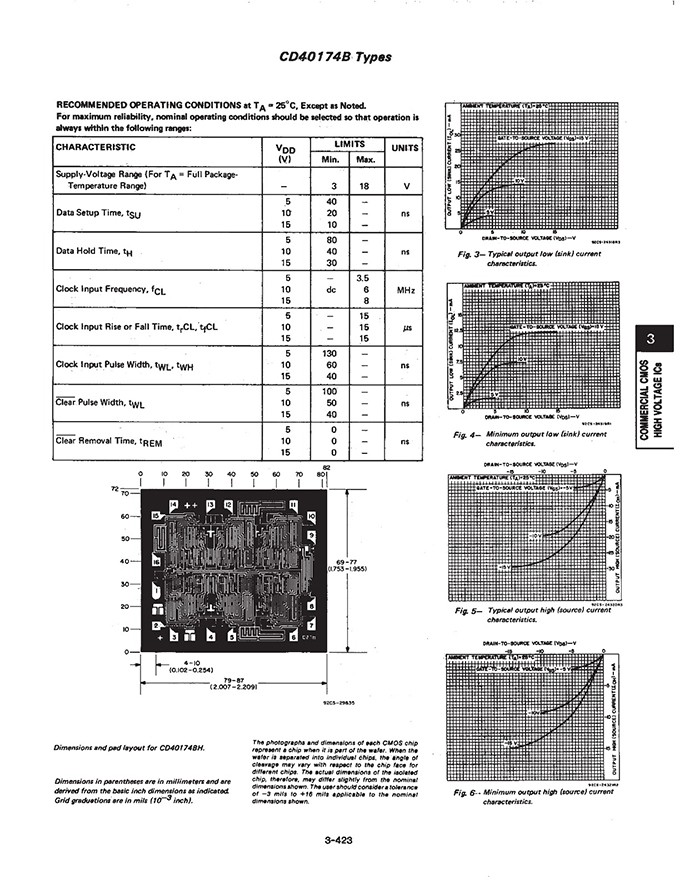

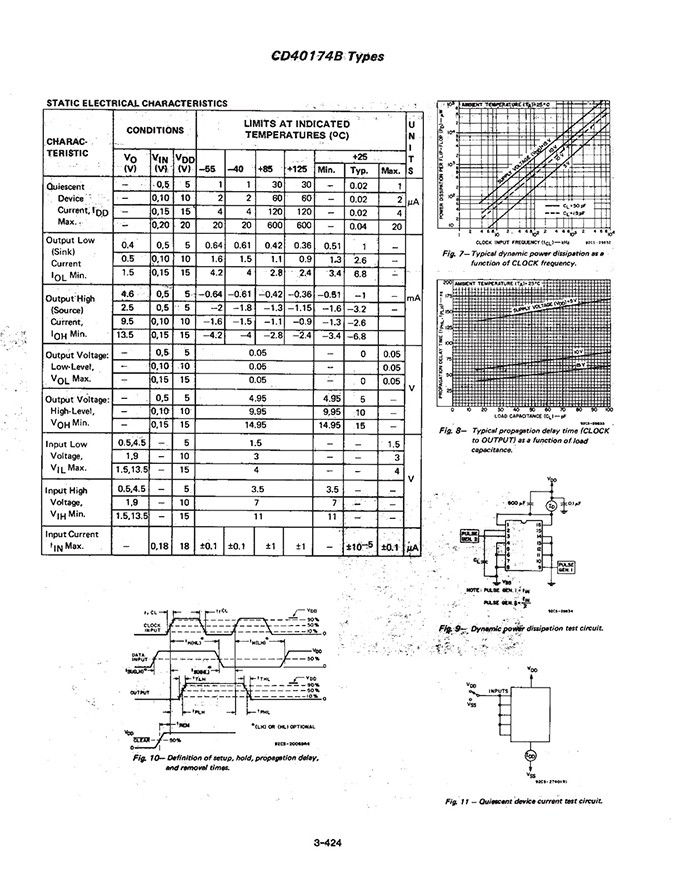

Product datasheet
For more information, please download
