Hot-selling and scarce SN74HCT244DW Octal Buffers and Line Drivers With 3-State Outputs SOIC-20 spot stock
Manufacturer Product Number
SN74HCT244DW
Description
SN74HCT244DW Octal Buffers and Line Drivers With 3-State Outputs SOIC-20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These octal buffers and line drivers are designedspecifically to improve both the performance anddensity of 3-state memory address drivers, clockdrivers, and bus-oriented receivers and transmitters .The SNx4HCT244 devices are organized as two 4-bitbuffers or drivers with separate output-enable (OE)inputs . When OE is low, the device passes noninverted data from the A inputs to the Y outputs .When OE is high, the outputs are in the highimpedance state.
Product Features
• Operating voltage range of 4.5V to 5.5V
• High-current outputs drive up to 15 LSTTL loads
• Low power consumption: 80µA maximum I CC
• Typical t pd = 13ns
• ±6mA output drive at 5V
• Low input current of 1µA maximum
• Inputs are TTL-voltage compatible
• 3-state outputs drive bus lines and buffer memory address registers
Product Applications
• Servers
• LED displays
• Network switches
• Telecom infrastructure
• Motor drivers
• I/O expanders
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HCT244DW |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74HCT |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74HCT244 |

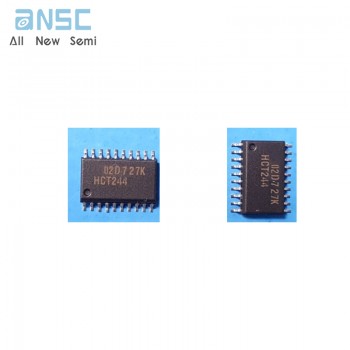

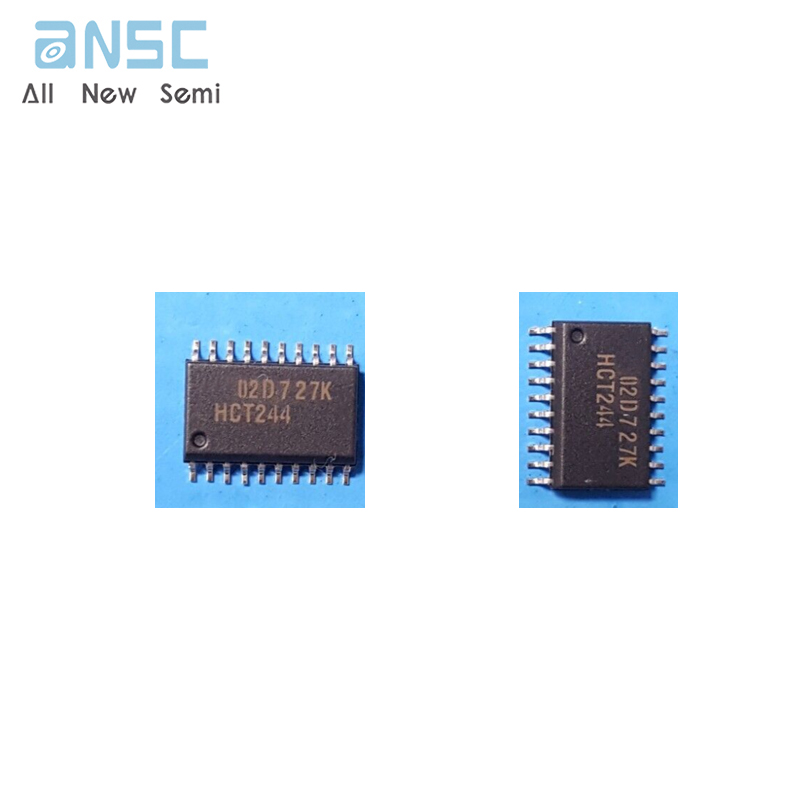

Product Photos
