Spot sales of EP1K100FC256-1 Programmable Logic Device Family IC BGA

Product Features

■ Programmable logic devices (PLDs), providing low cost system-on-a-programmable-chip (SOPC) integration in a single device

– Enhanced embedded array for implementing megafunctions such as efficient memory and specialized logic functions

– Dual-port capability with up to 16-bit width per embedded array block (EAB)

– Logic array for general logic functions

■ High density

– 10,000 to 100,000 typical gates

– Up to 49,152 RAM bits (4,096 bits per EAB, all of which can be used without reducing logic capacity)

■ Cost-efficient programmable architecture for high-volume applications

– Cost-optimized process

– Low cost solution for high-performance communications applications

■ System-level features

– MultiVoltTM I/O pins can drive or be driven by 2.5-V, 3.3-V, or 5.0-V devices

– Low power consumption

– Bidirectional I/O performance (setup time [tSU] and clock-tooutput delay [tCO]) up to 250 MHz

– Fully compliant with the peripheral component interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 for 3.3-V operation at 33 MHz or 66 MHz

■ Extended temperature range

– -1 speed grade devices are compliant with PCI Local Bus Specification, Revision 2.2 for 5.0-V operation

– Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990, available without consuming additional device logic.

– Operate with a 2.5-V internal supply voltage

– In-circuit reconfigurability (ICR) via external configuration devices, intelligent controller, or JTAG port

– ClockLockTM and ClockBoostTM options for reduced clock delay, clock skew, and clock multiplication

– Built-in, low-skew clock distribution trees

– 100% functional testing of all devices; test vectors or scan chains are not required

– Pull-up on I/O pins before and during configuration

■ Flexible interconnect

– FastTrack® Interconnect continuous routing structure for fast,predictable interconnect delays

– Dedicated carry chain that implements arithmetic functions such as fast adders, counters, and comparators (automatically used by software tools and megafunctions)

– Dedicated cascade chain that implements high-speed, high-fan-in logic functions (automatically used by software tools and megafunctions)

– Tri-state emulation that implements internal tri-state buses

– Up to six global clock signals and four global clear signals

■ Powerful I/O pins

– Individual tri-state output enable control for each pin

– Open-drain option on each I/O pin

– Programmable output slew-rate control to reduce switching noise

– Clamp to VCCIO user-selectable on a pin-by-pin basis

– Supports hot-socketing

Product Applications

Product Specifications

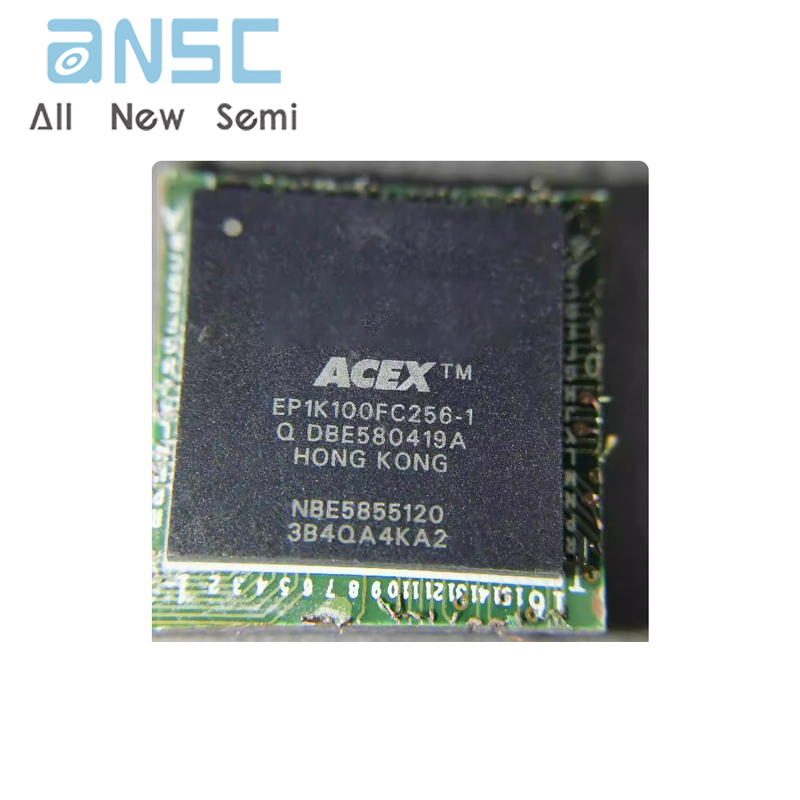

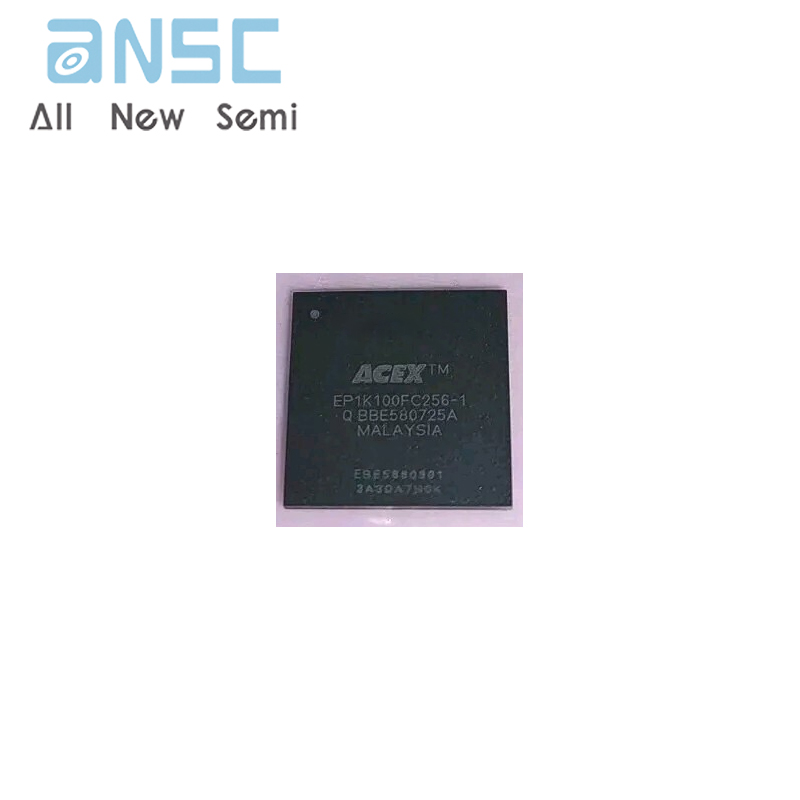

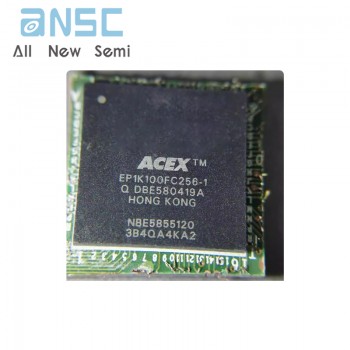

Product Photos

For more product information, please download the PDF
