Hot-selling and scarce 74F74N Dual D-type flip-flop DIP14 spot stock

Product Features

The F74 is a dual D-type flip-flop with Direct Clear and Set inputs and complementary (Q, Q) outputs. Information at the input is transferred to the outputs on the positive edge of the clock pulse. Clock triggering occurs at a voltage level of the clock pulse and is not directly related to the transition time of the positive-going pulse. After the Clock Pulse input threshold voltage has been passed, the Data input is locked out and information present will not be transferred to the outputs until the next rising edge of the Clock Pulse input.

Asynchronous Inputs:

LOW input to SD sets Q to HIGH level

LOW input to CD sets Q to LOW level

Clear and Set are independent of clock

Simultaneous LOW on CD and SD

makes both Q and Q HIGH

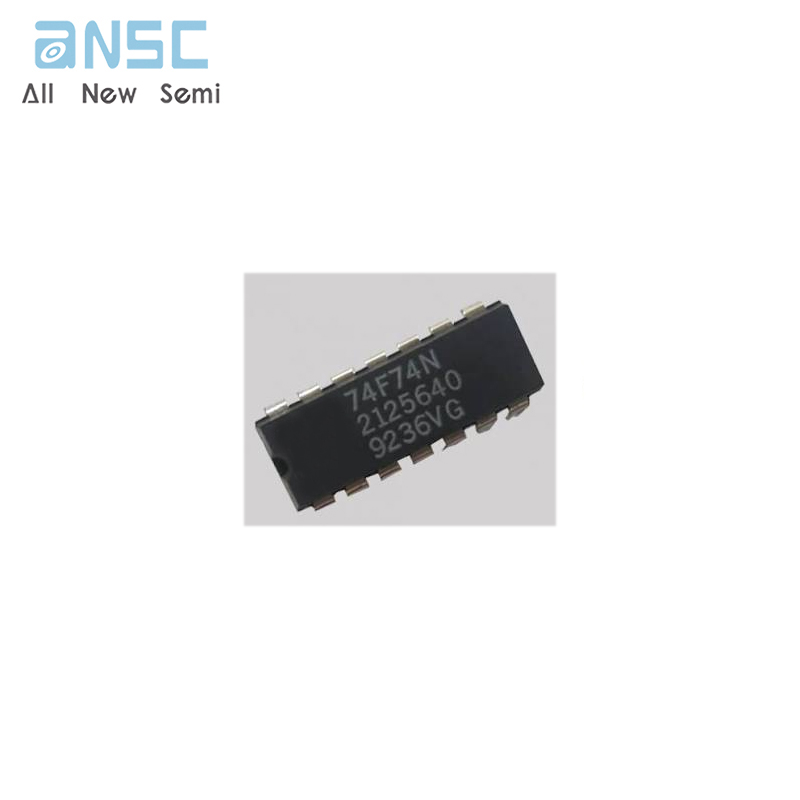

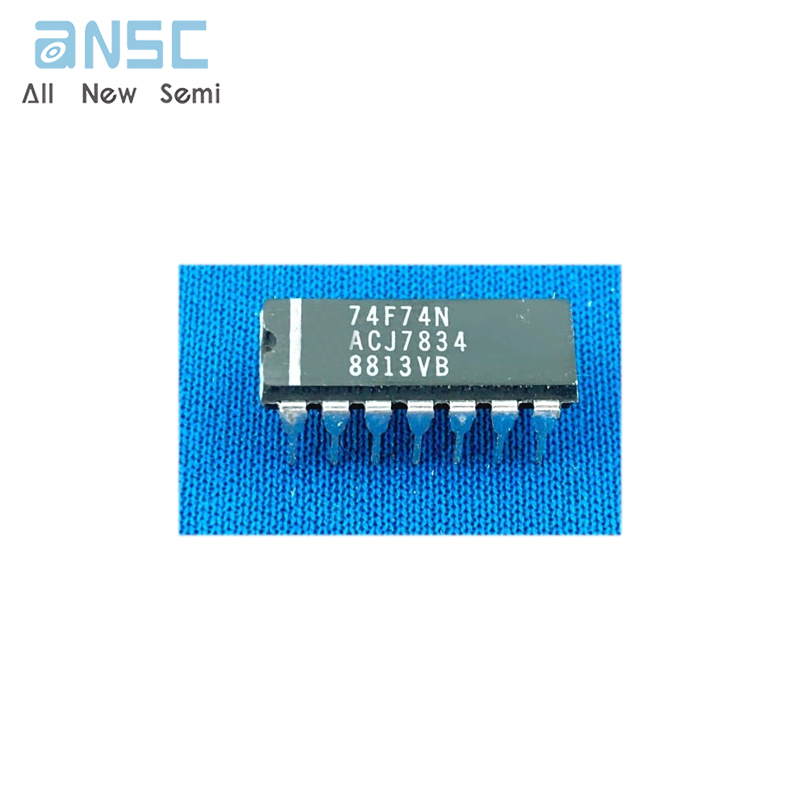

Product Photos

For more product information, please download the PDF
