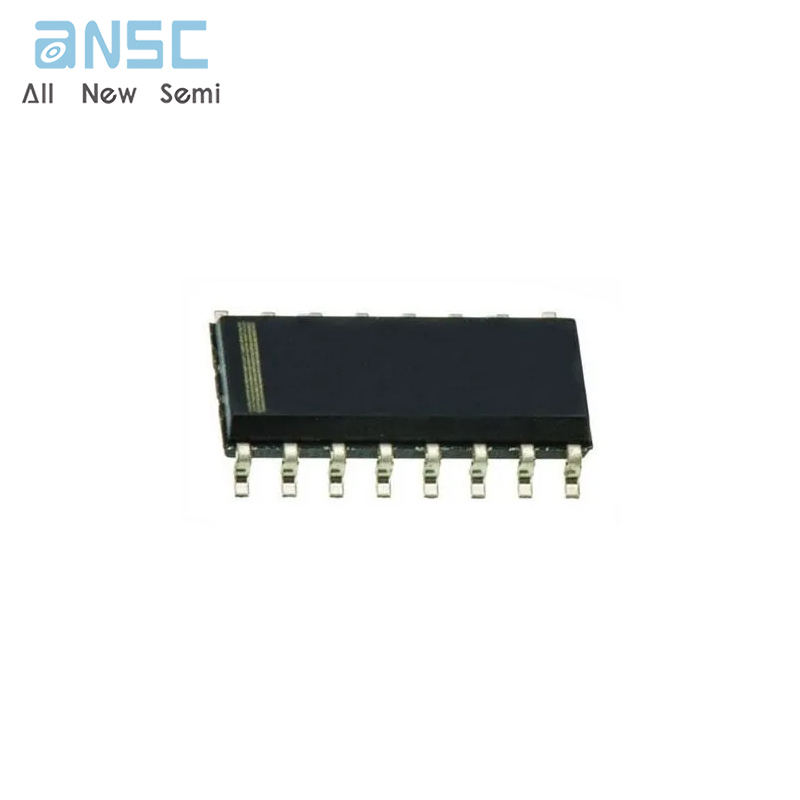

Hot-selling and scarce SN74HC590AD 8-BIT BINARY COUNTERS WITH 3-STATE OUTPUT REGISTERS SOP16 spot stock

Product Descriptions

The ’HC590A devices contain an 8-bit binary counter that feeds an 8-bit storage register. The storage register has parallel outputs. Separate clocks are provided for both the binary counter and storage register. The binary counter features direct clear (CCLR) and count-enable (CCKEN) inputs. A ripple-carry output (RCO) is provided for cascading. Expansion is accomplished easily for two stages by connecting RCO of the first stage to CCKEN of the second stage. Cascading for larger count chains can be accomplished by connecting RCO of each stage to the counter clock (CCLK) input of the following stage.

CCLK and the register clock (RCLK) inputs are positive-edge triggered. If both clocks are connected together, the counter state always is one count ahead of the register. Internal circuitry prevents clocking from the clock enable.

Product Features

2-V to 6-V VCC Operation

High-Current 3-State Parallel Register

Outputs Can Drive Up To 15 LSTTL Loads

Low Power Consumption, 80-µA Max ICC

Typical tpd = 14 ns

±6-mA Output Drive at 5 V

Low Input Current of 1 µA Max

8-Bit Counter With Register

Counter Has Direct Clear

Product Specification

Product Photos

For more product information, please download the PDF
