Hot-selling and scarce 74F157APC Quad 2-Input Multiplexer DIP16 spot stock
Manufacturer Product Number
74F157APC
Description
74F157APC Quad 2-Input Multiplexer DIP16 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 'F157A is a high-speed quad 2-input multiplexer. Four bits of data from two sources can be selected using the common Select and Enable inputs. The four outputs present the selected data in the true (non-inverted) form. The 'F157A can also be used to generate any four of the 16 different functions to two variables.
Product Features
Guaranteed 4000V minimum ESD protection
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74F157APC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| Series | 74F |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Multiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 1mA, 20mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | 74F157 |

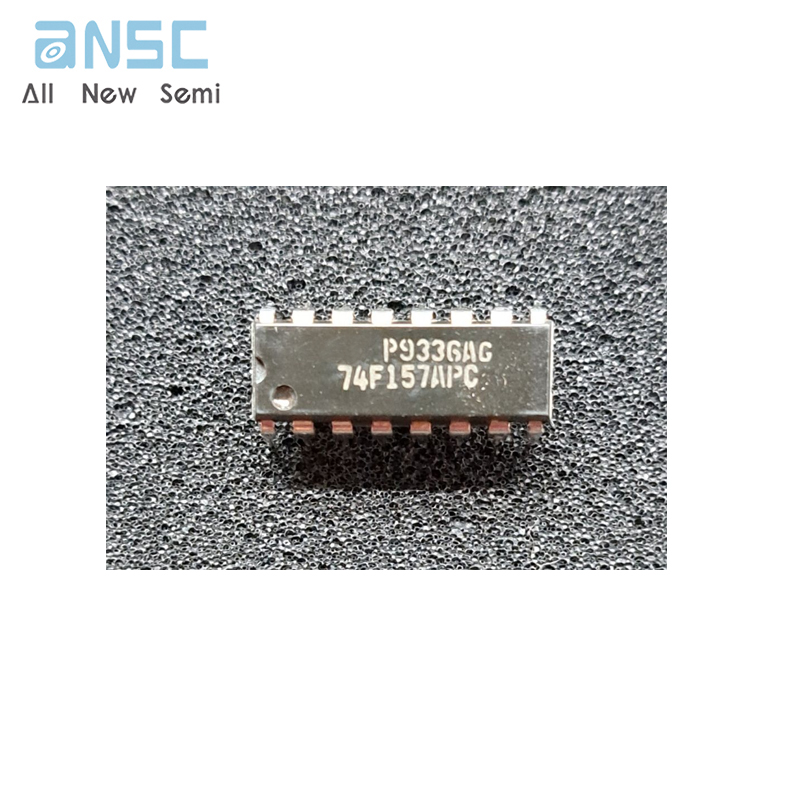

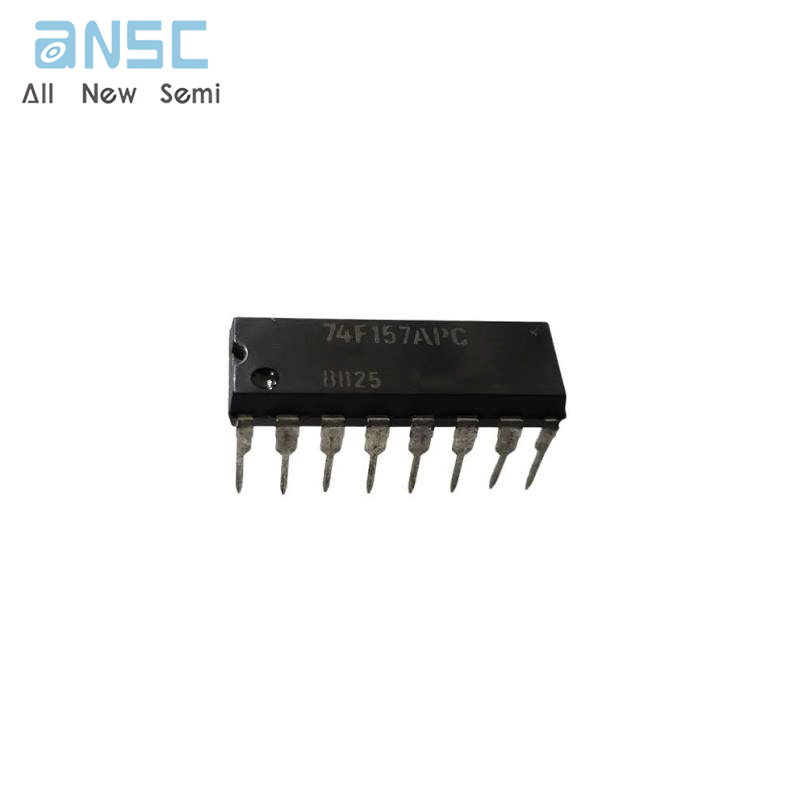

Product Photos
For more product information, please download the PDF
