Hot sale Original MC14516BCP Logic IC 4000/14000/40000 SERIES SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER

Manufacturer Product Number
MC14516BCP
Description

MC14516BCP Logic IC 4000/14000/40000 SERIES SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER PDIP16 PLASTIC DIP-16

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details


The MC14516B synchronous up/down binary counter is constructed with MOS P–channel and N–channel enhancement mode devices in a monolithic structure.

• Diode Protection on All Inputs
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Internally Synchronous for High Speed
• Logic Edge–Clocked Design — Count Occurs on Positive Going Edge of Clock
• Single Pin Reset
• Asynchronous Preset Enable Operation
• Capable of Driving Two Low–Power TTL Loads or One Low–Power Schottky Load Over the Rated Temperature Range


Product Description


Type#Description
ANSC PART#ANSC- MC14516BCP
Ihs ManufacturerOriginal
Part Package CodeDIP
Package DescriptionPLASTIC, DIP-16
Pin Count16
Count DirectionBIDIRECTIONAL
Family4000/14000/40000
Length19.175 mm
Load Capacitance (CL)50 pF
Load/Preset InputYES
Logic IC TypeBINARY COUNTER
Max Frequency@Nom-Sup1500000 Hz
Max I(ol)0.00064 A
Mode of OperationSYNCHRONOUS
Number of Bits4
Number of Functions1
Number of Terminals16
Operating Temperature-Max125 °C
Operating Temperature-Min-55 °C
Package Body MaterialPLASTIC/EPOXY
Package CodeDIP
Package Equivalence CodeDIP16,.3
Package ShapeRECTANGULAR
Package StyleIN-LINE
Peak Reflow Temperature (Cel)235
Propagation Delay (tpd)630 ns
Qualification StatusNot Qualified
Seated Height-Max4.44 mm
Supply Voltage-Max (Vsup)18 V
Supply Voltage-Min (Vsup)3 V
Supply Voltage-Nom (Vsup)5 V
Surface MountNO
TechnologyCMOS
Temperature GradeMILITARY
Terminal FinishTin/Lead (Sn/Pb)
Terminal FormTHROUGH-HOLE
Terminal Pitch2.54 mm
Terminal PositionDUAL
Time@Peak Reflow Temperature-Max (s)30
Trigger TypePOSITIVE EDGE
Width7.62 mm
fmax-Min4 MHz

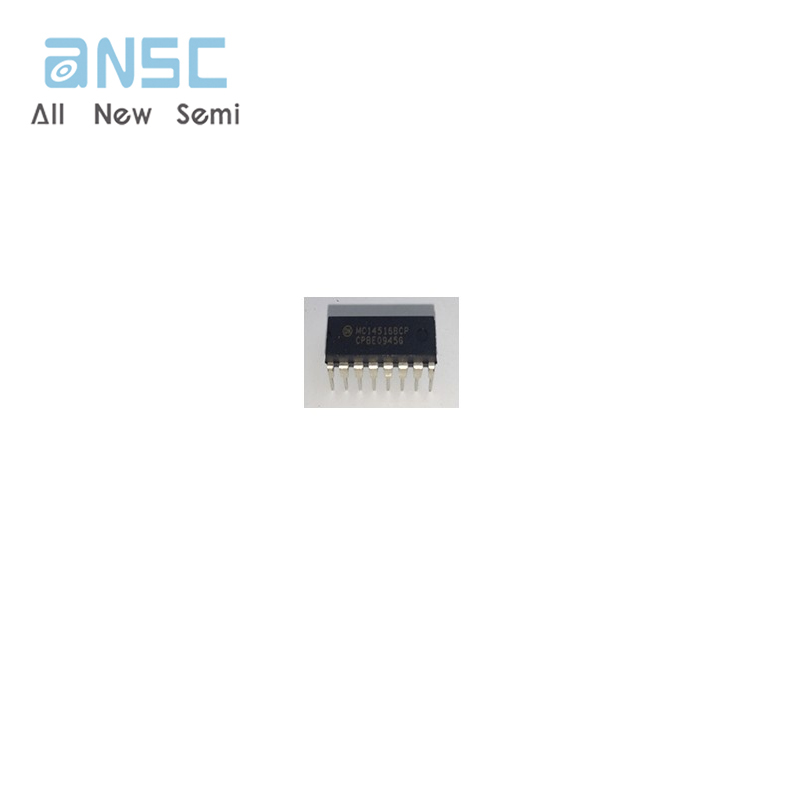

Actual image of the product
