Product Descriptions

• Octal D-Type Latch with 3-State Outputs

Product General

The 74HC573D is a high speed CMOS OCTAL LATCH with 3-STATE OUTPUT fabricated with silicon gate C2MOS technology.

It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.

These 8-bit D-type latch is controlled by a latch enable input (LE) and an output enable input (OE).

When the OE input is high, the eight outputs are in a high impedance state.

All inputs are equipped with protection circuits against static discharge or transient excess voltage.

Product Features

(1) Wide operating temperature range: Topr = -40 to 125℃ (Note 1)

(2) High speed: tpd = 13 ns (typ.) at VCC = 6.0 V

(3) Low power dissipation: ICC = 4.0µA (max) at Ta = 25℃

(4) Balanced propagation delays: tPLH≈ tPHL

(5) Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V

Specifications

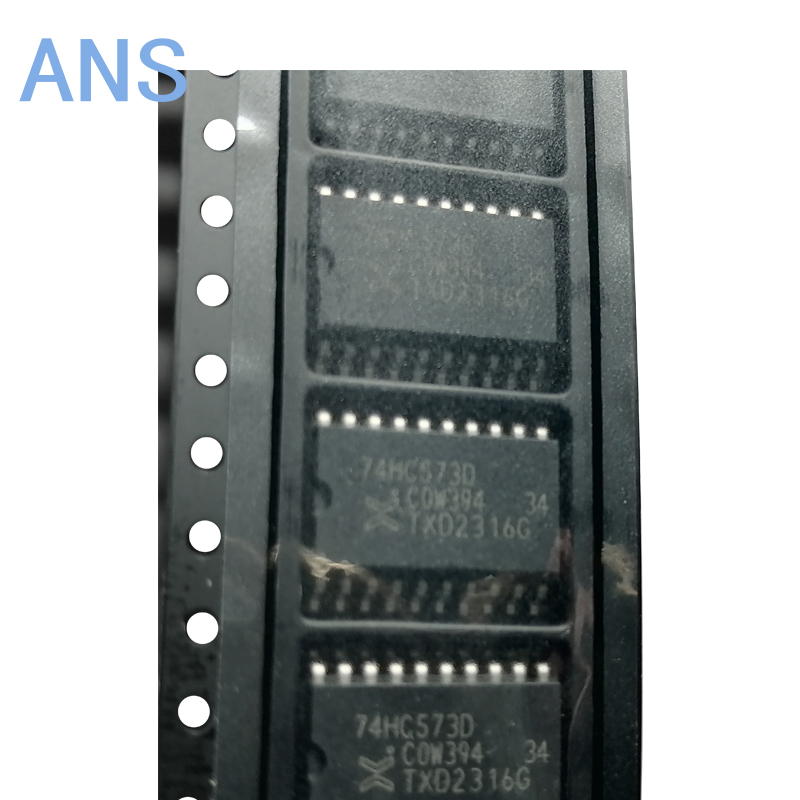

Actual product photos
