Hot-selling and scarce MM74HC157N Quad 2-Input Multiplexer DIP16 spot stock
Manufacturer Product Number
MM74HC157N
Description
MM74HC157N Quad 2-Input Multiplexer DIP16 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
■ Typical propagation delay: 14 ns data to any output
■ Wide power supply range: 2–6V
■ Low power supply quiescent current: 80 µA maximum (74HC Series)
■ Fan-out of 10 LS-TTL loads
■ Low input current: 1 µA maximum
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MM74HC157N |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Multiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | 74HC157 |

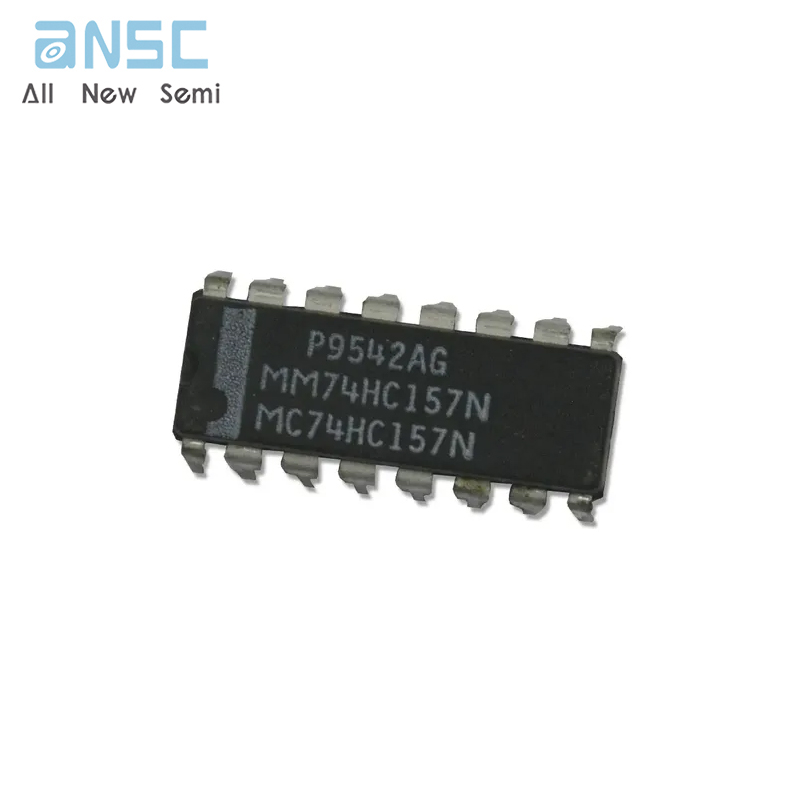

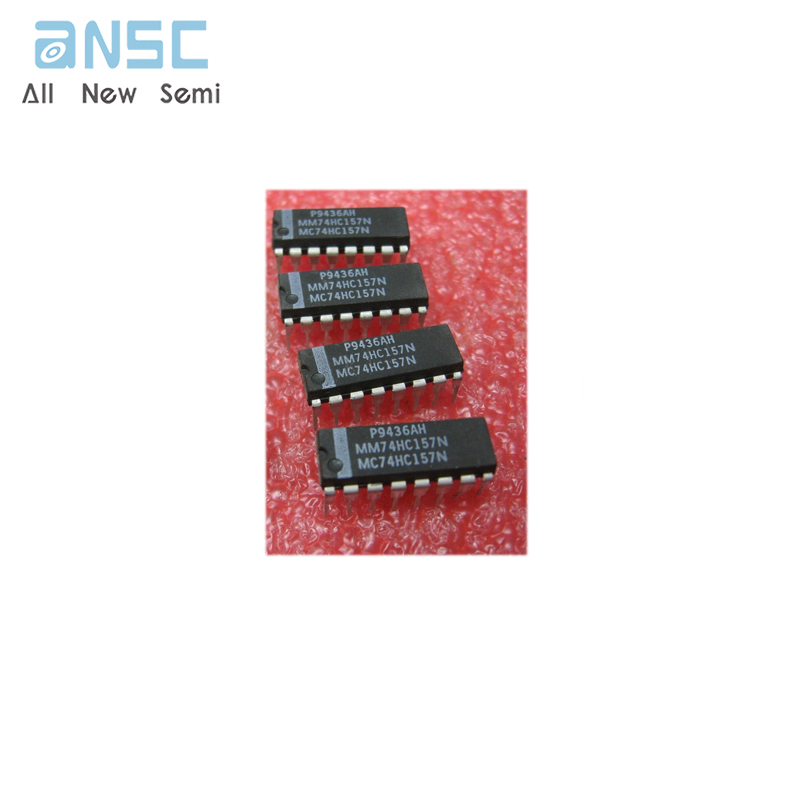

Product Photos
For more product information, please download the PDF
